The PLANET POE-173 Ultra Power over Ethernet Injector provide a maximum of up to 60-watt power and high speed Ethernet data connection anywhere in your network infrastructure. The PLANET Ultra Power over Ethernet solution contains two brand-new products:
■ POE-173: 60-watt Ultra Power over Ethernet Injector
■ POE-171S: 12V / 19V / 24V DC Power over Ethernet Splitter (Coming soon)
Quick and Easy Gigabit Ultra Power PoE Network Deployment

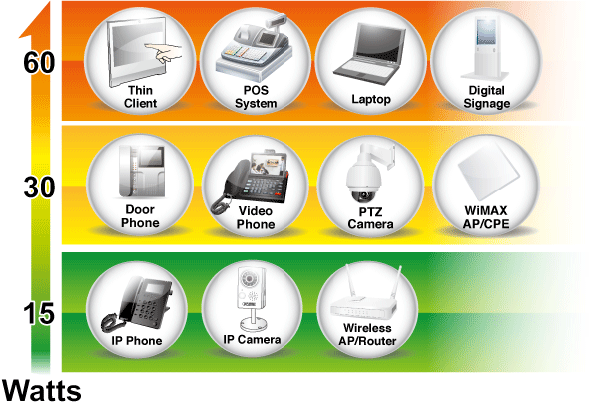

The POE-173 is a Single-Port, Ultra Power over Ethernet Injector with maximum up to 60 watts of power output over Ethernet cables. It is designed specifically to fill the demand of growing higher power required network equipment such as:
■ PTZ Speed Dome
■ AIO(All-in-One) touch PC
■ Remote digital signage display
■ Other Network devices that need higher power to work normally.

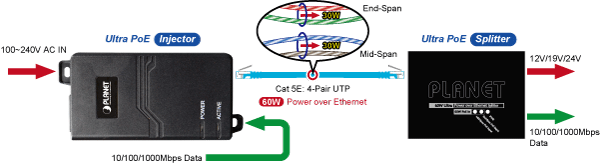

The POE-173 delivers the Ethernet digital data with DC 50V power over the twisted pair cables as a 60-watt Power over Ethernet Injector, and the connected Ultra Power over Ethernet splitter – the POE-171S – will separate the digital data and the power into three optional outputs (12V / 19V / 24V DC) with distance up to 100 meters. | | | | | | 60 watts of Power over 4-Pair UTP
The POE-173 and POE-171S Ultra PoE solution use the same cabling standard as IEEE 802.3at / af PoE. Instead of delivering power over 2-pair twisted UTP – be it End-Span (Pin 1,2,3 and 6) or Mid-Span (Pin 4,5,7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat5e / Cat6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs. | | | | | | PoE Standard | IEEE 802.3af
(802.3at Type 1) | IEEE 802.3at
(802.3at Type 2) | Ultra PoE
(POE-173) | Maximum Power
delivered by PSE | 15.4 watts | 30 watts | 60 watts | Power Available at PD | 12.95 watts | 25.5 watts | 50 watts | Voltage Range | 48V | 50~57V | 50V | Twisted Pair Used | 2-Pair | 4-Pair | Supported Modes | End-Span or Mid-Span | End-Span + Mid-Span | Supported Cabling | Cat 3/5/5e/6 | Cat5e/6 |

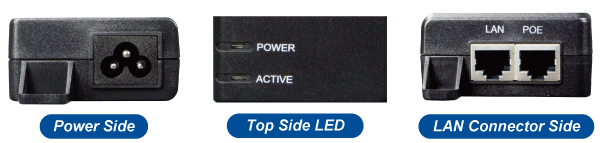

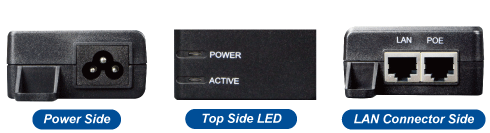

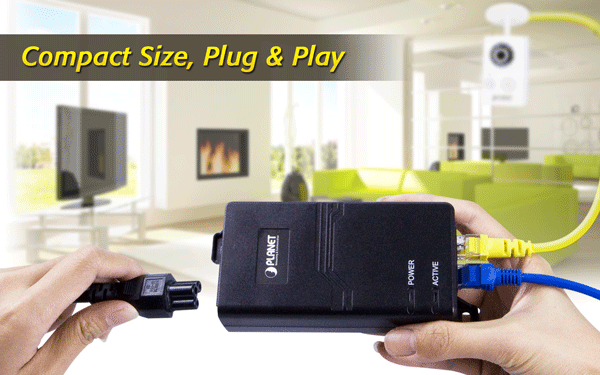

All-in-One and Compact Size Design

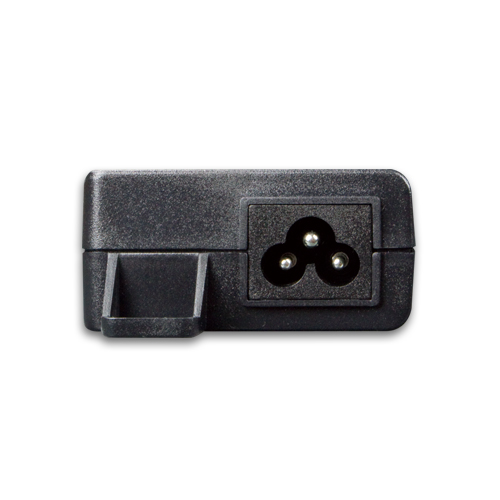

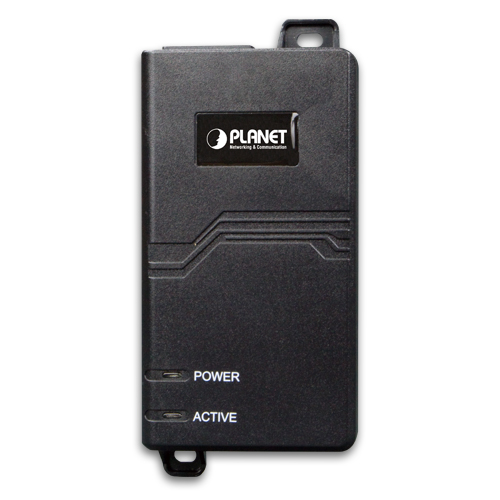

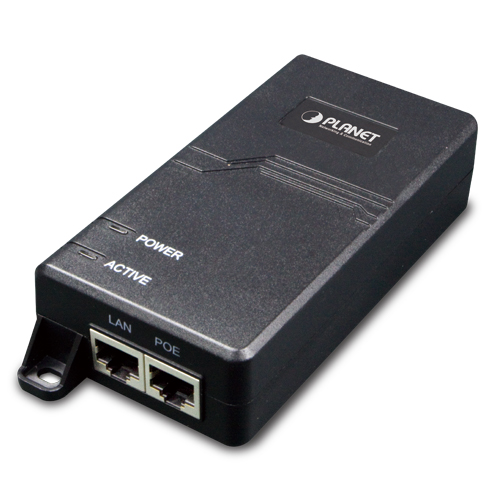

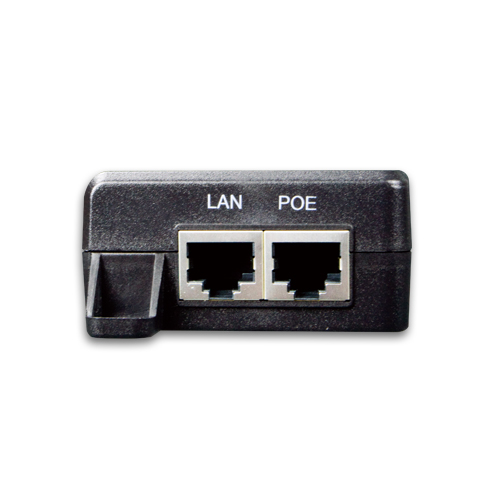

With concepts of "Easy to install”, “Plug and Play” and "Simple troubleshooting" for business and home users, the POE-173 is an all-in-one, single-port PoE+ injector with internal power supply. In the compact size housing, the POE-173 provides one 100-240V AC input socket on its front panel, two LEDs (System POWER and PoE ACTIVE ) at top side and two RJ-45 ports (POE port and LAN port) at rear panel. Simply plug in the Ethernet cables and power cord, and the POE-173 is ready to provide high speed network communication and Ultra power PoE injector functions simultaneously with no need of software configuration. | | | | | | | | | Quick and Easy Cabling Installation for PoE Network Deployment
Backward compatible with both 802.3af and 802.3at PoE standards, the POE-173 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-173 frees the Security IP Camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time. | | | | | |

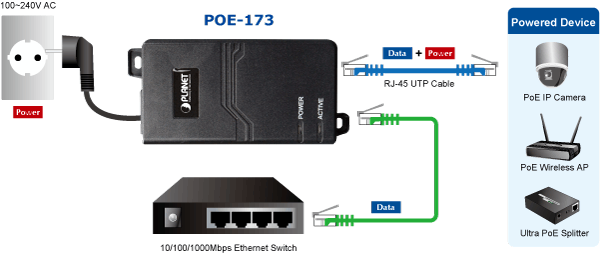

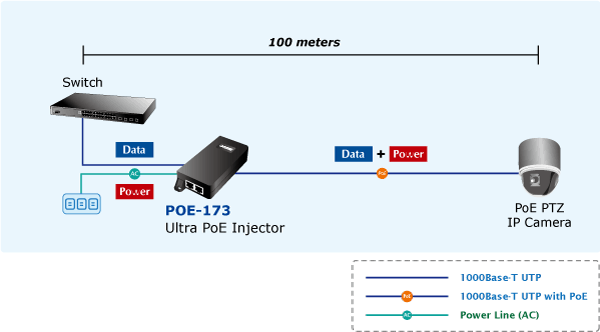

The Ultra PoE Injector Installation

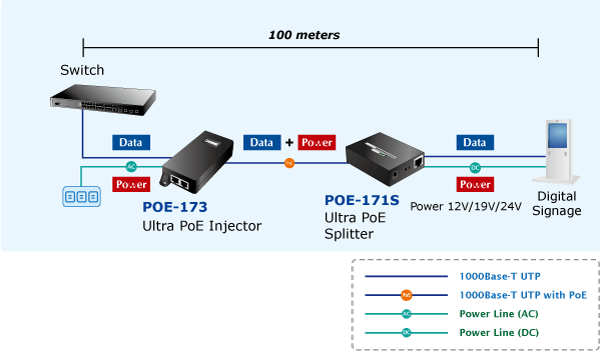

Due to the backward capability of IEEE 802.3at/af PoE standard, the Ultra PoE Injector can directly connect with any IEEE 802.3at/af end-nodes such as PTZ (Pan, Tilt & Zoom) speed dome network cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points. | | | | | | The Ultra PoE Injector and Splitter Installation
For a place which is hard to find the power inlet, the POE-173 and POE-171S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch- screen Voice over IP (VoIP) telephones, and multi- channel wireless LAN access points installed on the top of the building or used in enterprise office or home.

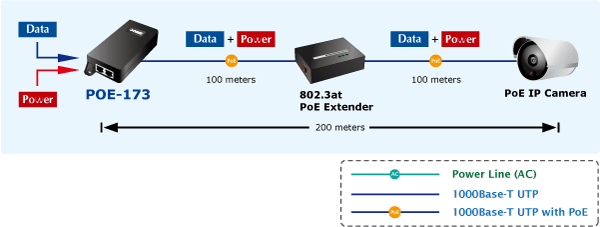

| | | | | | The IEEE 802.3at Injector and PoE Extended Installation
Is 100 meter cable long enough for a wide range of IP Surveillance deployments? The answer is certainly not. To achieve the benefits of IP Surveillance and also the long-distance IP Camera distribution, the POE-173 and PLANET PoE Extender,POE-E201, can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the POE-173. The POE-173 delivers PoE power over the first 100 meters to the PoE Extender over UTP cable, and then the PoE Extender forwards the Ethernet data and remaining POE power to the remote PoE IP camera. | | | | | |
Interface- 2 x RJ-45 interfaces
- - 1-Port 10/100/1000Mbps Data + Power output- 1-Port 10/100/1000Mbps Data input
- 1 x AC 100-240V input power socket
Power over Ethernet- Ultra Power over Ethernet PSE
- Up to 60 watts of power on 4-pairs UTP
- Backward compatible with IEEE 802.3at/af PD device
- Auto-detection of PoE IEEE 802.3at/af equipment and devices from being damaged by incorrect installation
- Remote power feeding up to 100m
Hardware- All-in-one compact size design
- Internal power supply
- LED indicators for Power LED and Active LED (PoE ready / In-use)
| | |
| Hardware Specifications |
| Interface |
LAN: 1 x RJ-45 STP, “Data” Input Port
POE: 1 x RJ-45 STP, “Data + Power” Output Port
AC Connector: 1 x AC Input power socket, IEC-320 C6 |
| Network Cable |
Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
802.3af / at PoE(15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
|
| LED Indicator |
System: Power x 1 (Green)
PoE Port: Active, PoE ready / In Use x 1 (Green) |
| Data Rate |
10/100/1000Mbps |
| Dimensions (W x D x H) |
115 x 62.5 x 31 mm |
| Weight |
177g |
| Unit Output Voltage |
DC 50V, 1.2A |
| Power Requirements |
100-240V AC @50/60Hz, 1.5A max. |
| Power Consumption |
60 watts max. |
| Power over Ethernet |
| PoE Standard |
Ultra PoE over 4-pairs UTP,
IEEE 802.3at High Power over Ethernet End-Span / Mid-Span PSE
|
| PoE Power Supply Type |
End-Span + Mid-Span |
| Power Pin Assignment |
Pair 1 End-Span: 1/2(+), 3/6(-)
Pair 2 Mid-Span: 4/5(+), 7/8(-) |
| PoE Power Output |
DC 50V / 60-watt PoE via 4-pairs
DC 50V / 30-watt PoE via 2-pairs
|
| Standards Conformance |
| Standards Compliance |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet |
| Regulation Compliance |
FCC Part 15 Class B, CE |
| Environment |
| Operating Temperature |
0 ~ 50 degrees C |
| Storage Temperature |
-10 ~ 70 degrees C |
| Operating Humidity |
5 ~ 95%, Relative Humidity, non-condensing |
| Storage Humidity |
5 ~ 95%, Relative Humidity, non-condensing |
