| Specificații hardware |
| Porturile de cupru |

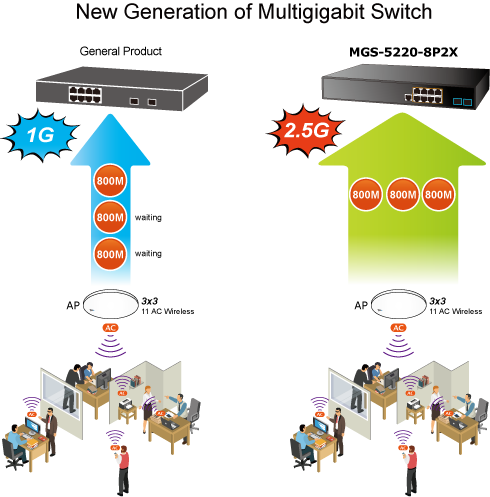

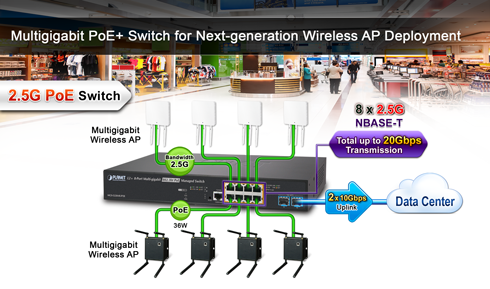

8 x 100/1000/2500 BASE-T RJ45 Auto-MDI/MDI-X ports |
| Sloturi SFP / mini-GBIC |
2 x 1/10G BASE-X SFP interfaces with Port-9 to Port-10 |
| PoE port injector |

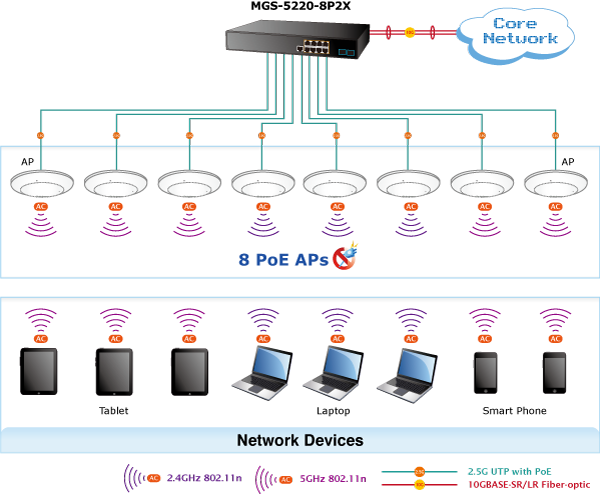

8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Consolă |
1 x RJ45 serial port (115200 , 8, N, 1) |
| Schimbarea arhitecturii |
Store-and-Forward |
| Comutatorul Fabric |
80Gbps |
| tranzitată |
59.52Mpps@64Bytes |
| Tabel de adrese |
16K entries, automatic source address learning and aging |
| Tampon de date partajat |
16Mbits |
| Controlul debitului |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex |
| Jumbo Frame |
9KB |
| Butonul de resetare |
< 5 sec: System reboot
> 5 sec: Factory default |
| LED |
System:
Fan Alert (Green), SYS (Green), PWR (Green)
100/1000/2500 BASE-T RJ45 Interfaces (Port 1 to Port 8):
100/1000Mbps LNK/ACT (Green)
2500 Mbps (Orange)
PoE-in-Use (Orange)
1/10G Mbps SFP Interfaces (Port 9 to Port 10):
1G LNK/ACT (Green)
10G Mbps (Orange) |
| Cerinte de putere |
100~240V AC, 50/60Hz |
| Consum de energie (încărcare completă) |
320 watts/1091.9 BTU (max.) |
| Protecția ESD |
6KV DC |
| Dimensiuni (L x Î x H) |
330 x 200 x 43.5 mm, 1U height |
| Greutate |
2kg |
| Putere peste Ethernet |
| PoE Standard |
IEEE 802.3at PoE Plus, PSE |
| Tip de alimentare PoE |
End-span |
| Putere de ieșire PoE |
Per port 54V DC, max. 30.8 watts |
| Alocarea pinilor de putere |
1/2(+), 3/6(-) |
| PoE Power Buget |
240 watts (max.) @ 25 degrees C
200 watts (max.) @ 50 degrees C |
| PoE Abilitate |
PD @ 7 watts: 8 units
PD @ 15.4 watts: 8 units
PD @ 30.8 watts: 8 units |
| Layer2 Funcții de gestionare |
| Interfețe de management de bază |
Console , Web browser, SNMP v1, v2c |
| Interfețe de management securizate |
SSH, SSL, SNMP v3 |
| Configurația portului |
Port disable/enable
Auto-negotiation 100/1000/2500 Mbps full and half duplex mode selection
Flow Control disable/enable |
| Starea portului |
Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor |
| VLAN |
802.1Q tagged based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Agregarea legăturii |
IEEE 802.3ad LACP/Static Trunk
Supports 5 trunk groups with 8 ports per trunk |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet |
| IGMP Snooping |
IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP Querier mode support |
| MLD Snooping |
MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support |
| Lista de control al accesului |
IP-based ACL/MAC-based ACL
Up to 256 entries |
| Bandwidth Control |
Per port bandwidth control
Ingress: 10Kbps~13000Mbps
Egress: 10Kbps~13000Mbps |
| SNMP MIB |
RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB |

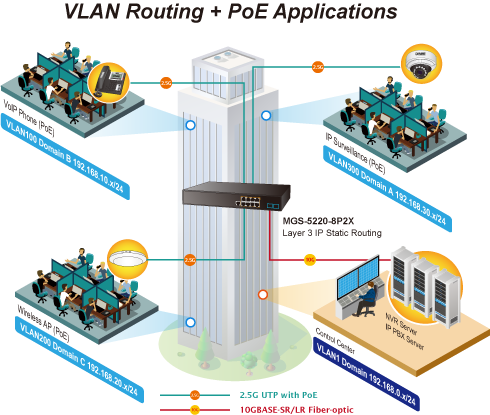

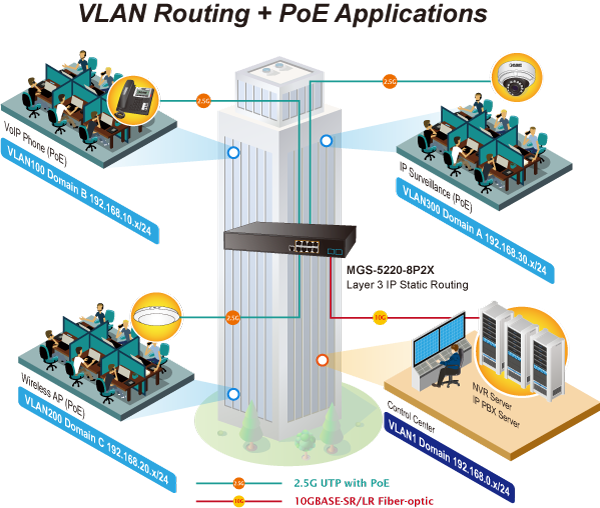

| Funcțiile stratului 3 |
| Interfețe IP |
Max. 128 VLAN interfaces |
| Tabel de rutare |
Max. 128 routing entries |
| Protocoale de rutare |
IPv4 hardware static routing
IPv6 hardware static routing |
| Conformitatea standardelor |
| Respectarea reglementărilor |
FCC Part 15 Class A, CE |
| Respectarea standardelor |
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2 |
| medii |
| De operare |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Depozitare |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
