IFGS-1022HPT

Industrial 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Ethernet Switch (-40~75 degrees C)

Overview
Application
Key Features
Specification

Cost-effective Full PoE+ Power and Gigabit Extension Solution Ideal for Hardened Environment

Designed to be installed in heavy industrial demanding environments, the IFGS-1022HPT is a new member of PLANET Industrial-grade, DIN-rail type Unmanaged Fast Ethernet PoE+ Switch family with 8 10/100/BASE-TX ports featuring 30-watt 802.3at PoE+, and 2 additional Gigabit copper/SFP combo interfaces for Gigabit Ethernet extension and video uplink.

The IFGS-1022HPT is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

802.3at PoE+ Power and Ethernet Data Transmit Distance Extension

The IFGS-1022HPT has a built-in solid DIP switch providing “Standard” and “Extend” operation modes. The IFGS-1022HPT operates as a normal IEEE 802.af/at PoE+ Switch in the “Standard” operation mode. In the “Extend” operation mode, the IFGS-1022HPT operates on a per-port basis at 10Mbps full duplex operation and can support 30-watt PoE power output over a distance of up to 250 meters, overcoming the 100-meter limit on Ethernet UTP cable.

Two Gigabit Uplink Ports

The IFGS-1022HPT provides 2 extra Gigabit TP/SFP combo interfaces that enable network administrators to increase their network bandwidth to relieve traffic congestion when the 2 uplink ports are used to connect PoE-capable devices, such as NVR, Video Streaming Server, NAS and more. With the combo design, administrators can easily connect and supply power to PoE-capable devices no matter how large the network expansion is.

Flexibility and Long-distance Extension Solution

Through the two shared Gigabit-speed fiber SFP slots, it can also connect with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters (multi-mode fiber) to 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the industrial data centers and distributions.

Environmentally Hardened Design

With the IP30 aluminum industrial case, the IFGS-1022HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. Being able to operate under the temperature range from -40 to 75 degrees C, the IFGS-1022HPT can be placed in almost any difficult environment.

Robust Protection

The IFGS-1022HPT provides contact discharge of ±6KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Safe and Easy PoE Network Deployment

Carrying both Ethernet data and power simultaneously, the IFGS-1022HPT reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It helps users to utilize just one Ethernet cable to install and deploy IP camera, wireless AP or VoIP phone more efficiently and cost-effectively.

Hardware Specifications
Copper Ports	Ten 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Port-1 to Port-10)
SFP/mini-GBIC Slots	Two 1000BASE-SX/LX/BX SFP interfaces (shared with Port-9 and Port-10)
PoE Injector Port	Eight ports with 802.3af/802.3at PoE+ injector function (Port-1 to Port-8)
Switch Architecture	Store-and-Forward
Switch Fabric	5.6Gbps/non-blocking
Switch Throughput@64 bytes	4.19Mpps @64 bytes
MAC Address Table	16K entries
Shared Data Buffer	4Mb SRAM
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Jumbo Frame	10 Kbytes
DIP Switch (Port-1 to Port-8)	Standard mode: 30-watt PoE transmit distance of 100m at speed of 10/100Mbps Extend mode: 30-watt PoE transmit distance of 250m at speed of 10Mbps
LED	3 x LED for System and Power: 　■ Green: DC Power 1 　■ Green: DC Power 2 　■ Red : Power Fault 2 x LED for PoE Copper Port (Port-1~Port-8): 　■ Green: LNK/ACT (10/100/1000Mbps) 　■ Orange: PoE-In-Use 2 x LED for 10/100/1000T Copper Port (Port-9~Port-10): 　■ Green: 1000 LNK/ACT 　■ Orange: 10/100 LNK/ACT 2 x LED for per mini-GBIC interface (Port-9~Port-10) 　■ Orange: 1000 LNK/ACT 　■ Green: 1000 LNK/ACT

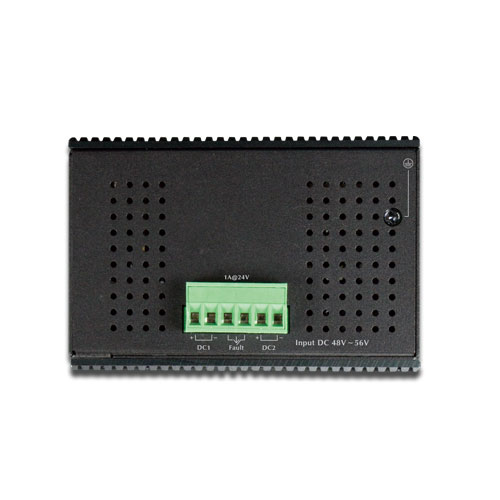

Connector	Removable 6-pin terminal block 　■ Pin 1/2 for Power 1 　■ Pin 3/4 for power fault alarm 　■ Pin 5/6 for Power 2
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC
Power Requirements	48~56V DC, 6A (max.) (>51V DC for PoE+ output recommended)
Power Consumption/ Dissipation	19 watts, 64BTU (Standby without PoE function) at DC 56V power input 23 watts, 78BTU (Full loading without PoE function) at DC 56V power input 244 watts, 832BTU (Full loading with PoE function) at DC 56V power input
Dimensions (W x D x H)	72 x 107 x 161 mm
Weight	1034g
ESD Protection	6KV DC
Enclosure	IP30 aluminum case
Installation	DIN-rail kit and wall-mount kit
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Output	IEEE 802.3af Standard - Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard - Per port 51V~56V DC (depending on the power supply), max. 30 watts
PoE Power Budget	Dual power input: maximum 240W (depending on power input)
Max. Number of Class 2 PDs	8
Max. Number of Class 3 PDs	8
Max. Number of Class 4 PDs	8
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
Environment
Operating Temperature	-40 ~ 75 degrees C
Storage Temperature	-40 ~ 85 degrees C
Humidity	5 ~ 95% (non-condensing)
