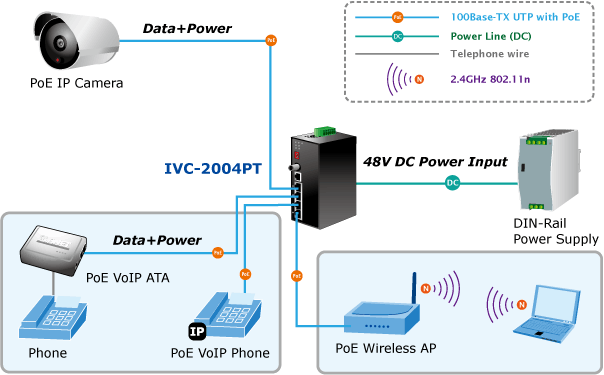

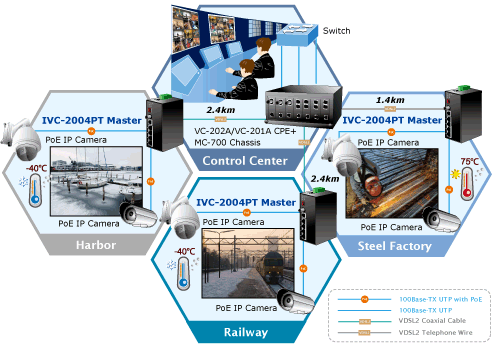

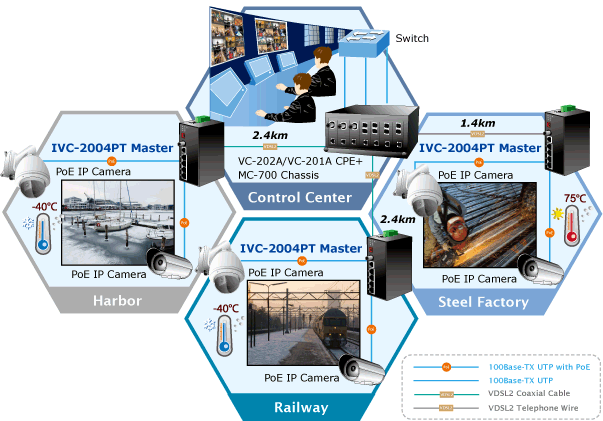

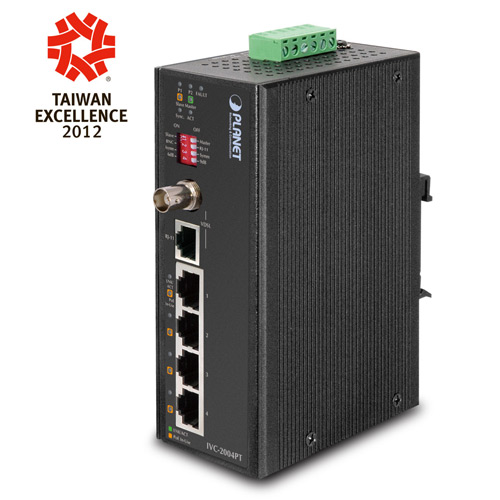

| Specificații hardware |
| Extender Ports |
• Coaxial: 1 BNC, female connector
• Phone-Line: 1 RJ-11, female connector |
| Porturi Ethernet LAN |
• 10/100Base-TX: 4 RJ-45, Auto-Negotiation and Auto-MDI / MDI-X
• 4 PoE Ports (Port1 ~ 4) |
| Comutator DIP |
4 position DIP switch |
| Funcționalitate |
• Master / Slave mode select
• Selectable BNC and RJ-11 mode
• Selectable target Band Plan
• Selectable target SNR mode |
| Codare |
• DMT (Discrete Multi-Tone) line coding
- ITU-T G.997.1
- ITU-T G.993.1
- ITU-T G.993.2 (VDSL2 Profile 17a Support) |
| Indicatoare LED |
• System
P1 (Green)
P2 (Green)
Fault (Green)
• VDSL2
Master (Green)
Slave (Green)
ACT (Green)
Sync. (Green)
• 10/100Mbps port
LNK / ACT (Green)
PoE In-Use (Orange) |
| cablare |
• Ethernet : 10Base-T: 2-pair UTP Cat.3, 4 and 5 up to 100m (328ft)
• Ethernet : 100Base-TX: 2-pair UTP Cat.5, 5e and 6 up to 100m (328ft)
• Coaxial Cable:
–50ohm, RG58A / U, RG58C / U, RG58 / U or equivalent;
–75ohm, RG-6 (Distance up to 2.4km)
• Twisted-pair telephone wires (AWG24 or better) up to 1.4km |
| Dimensiune (L x Î x H) |
135 x 87.8 x 50 mm |
| Greutate |
631g |
| Necesitatea de alimentare |
48V DC for PoE Devices
12 ~ 36V DC for Non-PoE Devices
Redundant power with polarity reverse protection function |
| Consumul de energie |
66.4Watts / 226BTU Max. (PoE)
5.64Watts / 19.24BTU (Non-PoE) |
| Instalare |
DIN Rail kit and Wall Mount ear |
| Alarma |
Provides one relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24V
|
| Performanţă |
| BNC (cablu coaxial) |
Asymmetric (Download / Upload)
200m -> 99/65Mbps
400m -> 99/64Mbps
600m -> 97/59Mbps
800m -> 94/51Mbps
1000m -> 84/45Mbps
1200m -> 73/37Mbps
1400m -> 61/28Mbps
1600m -> 54/20Mbps
1800m -> 48/13Mbps
2000m -> 38/9Mbps
2200m -> 35/6Mbps
2400m -> 31/4Mbps
Symmetric (Download / Upload)
200m -> 95/99Mbps
400m -> 92/97Mbps
600m -> 81/82Mbps
800m -> 71/70Mbps
1000m -> 60/57Mbps
1200m -> 50/44Mbps
1400m -> 42/33Mbps
1600m -> 37/27Mbps
1800m -> 29/22Mbps
2000m -> 23/21Mbps
2200m -> 19/17Mbps
2400m -> 19/13Mbps |
| RJ-11 (linie telefonică) |
Asymmetric (Download / Upload)
200m -> 99/63Mbps
400m -> 91/48Mbps
600m -> 71/32Mbps
800m -> 53/18Mbps
1000m -> 38/8Mbps
1200m -> 33/5Mbps
1400m -> 28/2Mbps
Symmetric (Download / Upload)
200m -> 91/99Mbps
400m -> 74/79Mbps
600m -> 54/51Mbps
800m -> 38/34Mbps
1000m -> 27/21Mbps
1200m -> 24/15Mbps
1400m -> 21/10Mbps |
| Putere peste Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet / PSE |
| Tip PoE |
End-Span |
| Putere de ieșire PoE |
48V DC Per Port, 350mA. Max. 15.4 Watts |
| PoE Pin Assignment |
1/2(+), 3/6(-) |
| Conformitate standard |
| Reglementarea conformității |
FCC Part 15 Class A, CE |
| Testul de stabilitate |
IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration) |
| Respectarea standardelor |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3af Power over Ethernet
IEEE 802.3x Full Duplex Pause Frame Flow-Control
ITU-T
- G.993.1
- G.997.1
- G.993.2 (Profile 17a Support) |
| Mediu inconjurator |
| Temperatura de Operare |
-40 ~ 75 Degree C |
| Umiditatea de funcționare |
5~90%, relative humidity, non-condensing |
| Temperatura de depozitare |
-40 ~ 85 Degree C |
| Depozitare Umiditate |
5~90%, relative humidity, non-condensing |
