| Specificații hardware |
| Porturile de cupru |
4 x 10/100/1000Base-T RJ-45 TP
Auto-MDI/MDI-X, Auto-Negotiation |
| Sloturi SFP / mini-GBIC |
2 1000Base-SX/LX/BX SFP interfaces (Port-5 and Port-6)
Compatible with 100Base-FX SFP |
| Comutator DIP |
DIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX
DIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FX

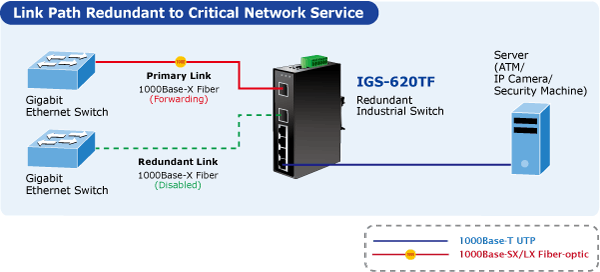

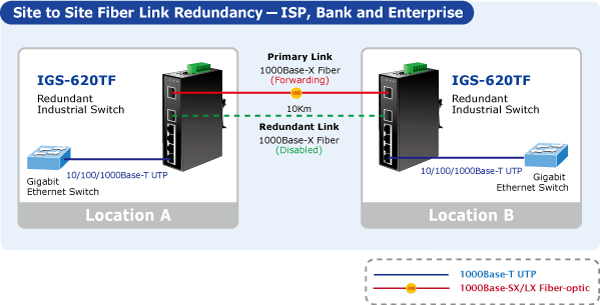

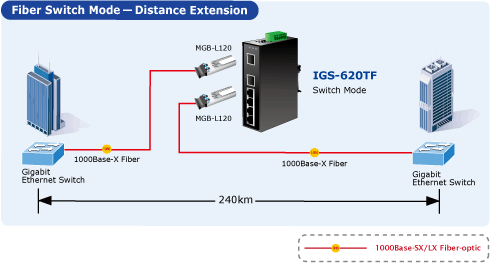

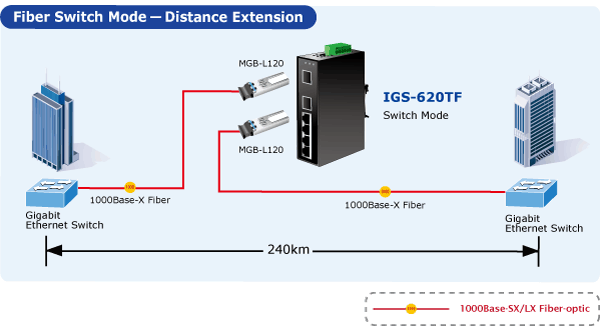

DIP-3: Switch mode / Fiber Redundant mode |
| Conector |
Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Alarma |
Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V |
| LED |
3 x LED for System and Power:
■ Green: DC Power 1
■ Green: DC Power 2
■ Green: Power Fault
2 x LED for Per Copper Port (Port-1~Port-4):
■ Green: 1000 LNK/ACT
■ Orange:100 LNK/ACT
1 x LED for Per mini-GBIC interface (Port-5 and Port-6):
■ Green: LNK/ACT
|
| Protecția ESD |
6KV DC |
| Protecția EFT |
6KV DC |
| împrejmuire |
IP30 type metal case |
| Instalare |
DIN rail kit and wall mount ear |
| Dimensiuni (L x Î x H) |
135 x 87 x 32mm |
| Greutate |
503g |
| Cerinte de putere |
DC 12~48V or AC 24V
Redundant power with polarity reverses protection function |
| Consum de energie / dizolvare |
7.2watts / 24BTU |
| Cablu |
Twisted-Pair
10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
Fiber-Optic Cable
1000Base-SX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m
1000Base-LX:
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120
kilometers (vary on SFP module)
100Base-FX:
● 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2
kilometers
● 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers
(vary on SFP module) |
| Comutare specificație |
| Schema de procesare a comutatorului |
Store-and-Forward |
| Tabel de adrese |
1K entries |
| Controlul debitului |
Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex |
| Comutați țesătura |
12Gbps |
| Capacitatea de transfer (pachet pe secundă) |
8.93Mpps@64bytes |
| Unitatea de transmisie maximă |
9216 bytes |
| Viteză |
SX/LX: 2000Mbps (full-duplex)
FX: 200Mbps (full-duplex)
TP: 10/20Mbps, 100/200Mbps, 2000Mbps |
| Conformitatea standardelor |
| Respectarea standardelor |
IEEE 802.3 Ethernet / 10Base-T
IEEE 802.3u Fast Ethernet / 100Base-TX
IEEE 802.3ab Gigabit Ethernet / 1000Base-T
IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet |
| Reglementarea conformității |
FCC Part 15 Class A, CE |
| Testul de stabilitate |
IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration) |
| Mediu inconjurator |
| Temperatura |
| Operating: | -40~75 degree C | | Storage: | -40~75 degrees C |
|
| Umiditate |
| Operating: | 5~95% (Non-condensing) | | Storage: | 5~95% (Non-condensing) |
|
