| Specificații hardware |
| Porturile de cupru |
10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Sloturi SFP / mini-GBIC |
2 1000BASE-SX/LX/BX SFP interfaces (Port-11 and Port-12)
Supports 100/1000Mbps dual mode and DDM |
| Port Consola |
1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Schimbarea arhitecturii |
Store-and-Forward |
| Comutatorul Fabric |
24Gbps / non-blocking |
| Capacitatea de comutare |
17.76Mpps@64 bytes |
| Tabel de adrese |
8K entries, automatic source address learning and ageing |
| Tampon de date partajat |
1392 kilobytes |
| Protecția ESD |
6KV |
| Controlul debitului |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex |
| Jumbo Frame |
9Kbytes |
| Butonul de resetare |
< 5 seconds: System reboot
> 5 seconds: Factory default |
| Dimensiuni (L x Î x H) |
330 x 200 x 43.5 mm, 1U high |
| Greutate |
2kg |
| LED |
Power, fan alert,
10/100/1000 Link / Act per RJ45 port,
100/1000 Link / Act per SFP port,
PoE-in-Use for Port 1~ 8 |
| Consumul de energie |
Max. 320 watts / 1091 BTU |
| Cerinte de putere |
100~240V AC, 50/60Hz |
| împrejmuire |
Metal |
| Ventilator |
Smart fan x 1 (Speed depending on operating temperature) |
| Administrare AP wireless |
| Numărul maxim de adrese administrate AP |
32 |
| Numărul maxim de grupuri AP |
10 |
| AP maxime pe grupul AP |
32 |
| Puncte de acces compatibile |
■ WDAP-C7200AC
■ WDAP-W7200AC |
| Securitate criptare |
■ WEP (64/128-bit) encryption security
■ WPA Personal / Enterprise (TKIP / AES)
■ WPA2 Personal / Enterprise (TKIP / AES)
■ Enterprise Class 802.1x |

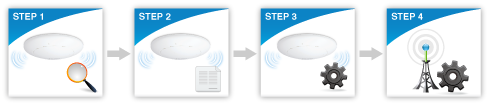

| Gestionarea AP centralizată |
■ AP auto discovery
■ Remote AP power reboot
■ AP auto IP assignment
■ AP group management
■ AP status monitoring
■ AP real-time traffic monitoring
■ AP device name / location editing |
| Putere peste Ethernet |
| PoE Standard |
IEEE 802.3af PoE / 802.3at PoE+ PSE |
| Tip de alimentare PoE |
End-span |
| Putere de ieșire PoE |
Per port 56V DC, max. 30.8 watts |
| Alocarea pinilor de putere |
1/2(+), 3/6(-) |
| PoE Power Buget |
240 watts (max.) @ 25 degrees C
200 watts (max.) @ 50 degrees C |
| PoE Abilitate |
PD @ 7 Watts:8 units
PD @ 15.4 Watts:8 units
PD @ 30.8 Watts:8 units |
| Funcțiile stratului 2 |
| Configurația portului |
Port disable / enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable / enable |
| Starea portului |
Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring |
TX / RX / both
Many-to-1 monitor |
| VLAN |
802.1Q tagged based VLAN
802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Agregarea legăturii |
IEEE 802.3ad LACP / static trunk
5 trunk groups with each 5-port trunk supported |
| Spanning Tree Protocolul |
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet |
| IGMP Snooping |
IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP Querier mode support |
| MLD Snooping |
MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support |
| Lista de control al accesului |
IP-based ACL / MAC-based ACL
Up to 256 entries |
| Bandwidth Control |
Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps |
| Funcțiile stratului 3 |
| Interfețe IP |
Max. 8 VLAN interfaces |
| Tabel de rutare |
Max. 32 routing entries |
| Protocoale de rutare |
IPv4 software static routing
IPv6 software static routing |
| Funcțiile de gestionare |
| Interfețe de management de bază |
Console / Telnet / Web browser / SNMP v1, v2c |
| Interfețe de management securizate |
SSH, SSL, SNMP v3 |
| SNMP MIB |
RFC-1213 MIB-II
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2863 IF-MIB
RFC-2933 IGMP-STD-MIB
RFC-3411 SNMP-Frameworks-MIB
RFC-4292 IP Forward MIB
RFC-4293 IP MIB
RFC-4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Power over Ethernet MIB |
| Conformitatea standardelor |
| Reglementarea conformității |
FCC Part 15 Class A, CE |
| Respectarea standardelor |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2 |
| medii |
| De operare |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 20 ~ 95% (non-condensing) |
| Depozitare |
Temperature: -20 ~ 70 degrees C
Relative Humidity: 20 ~ 95% (non-condensing) |
