| Port serial |
| Interfață |
RS422/RS485 x 2 |
| Conector |
10-contact terminal block for RS422/RS485 |
| Protectie la supratensiune |
1KV |
| Rata baudului (rata de date) |
300bps to 115200bps |
| Mijloace de date |
7, 8 |
| Tipul de paritate |
Odd, Even, None, Space, Mark |
| Opriți Bit |
1, 2 |
| Controlul debitului |
H/W, None |
| semnale |
RS422 : Tx+, Tx-, GND, Rx+, Rx-
RS485: Data A (+), GND, Data B (-)
|
| Distanţă |
RS422/RS485 for 1200m transfer distance |
| Mod de operare |

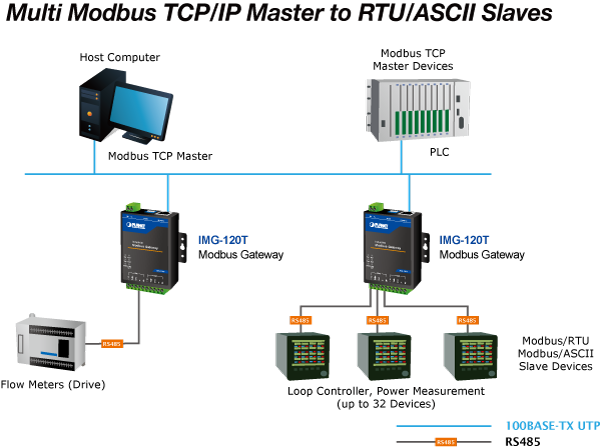

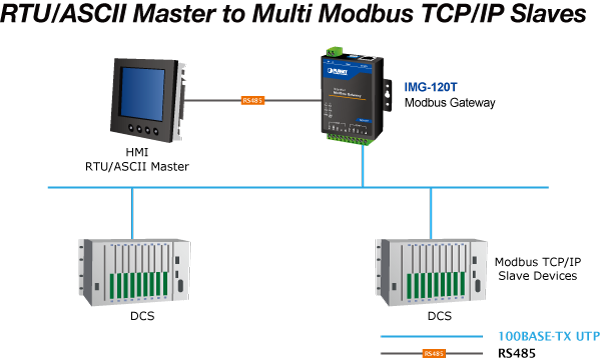

RTU Master/RTU Slave/ASCII Master/ASCII Slave
Master mode: Supports up to 32 slave TCP connection requests
Slave mode: Supports up to 16 TCP master connection requests
|
| Port Ethernet rapid |
| Standard |
IEEE 802.3 10BASE-T standard
IEEE 802.3u 100BASE-TX standard
IEEE 802.3x Full-duplex flow control
|
| Conector |
RJ45 |
| Distanţă |
100 meters |
| Hardware |
| Portul de cupru |
10/100BASE-TX RJ45 TP x1, auto-MDI/MDI-X, auto-negotiation |
| Port serial |
RS422/RS485 x 2 |
| Comutator DIP |
Reset system to factory default |
| Indicatoare LED |
System: Power x 1
10/100BASE-TX Port: Link/Active x 1
RS422/RS485 Serial Port: TX (Transmit) x 2, RX (Receive) x 2
|

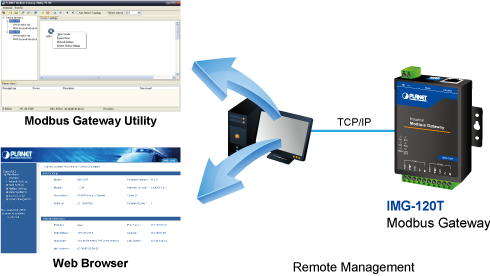

| administrare |
Remote Web Management
Remote Telnet Management
PLANET Modbus Gateway Utility
PLANET Smart Discovery Utility
|

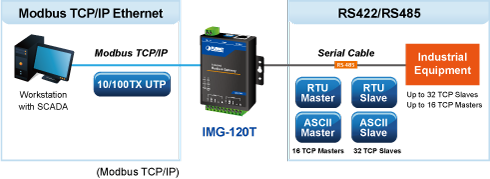

| Mod de operare |
RTU Master
RTU Slave
ASCII Master
ASCII Slave
|
| Dimensiune (L x Î x H) |
69 x 100 x 22 mm |
| Greutate |
238g |
| Conector de intrare de alimentare |
2-contact terminal block connector DC power (9-48V) *
*: Please follow the DC power input symbol from the front panel of the IMG-120T -- insert positive DC power wire into V+, and negative DC power wire into V-. Otherwise, it will damage the device. |
| Consumul de energie |
1.25W@9V (max.) |
| Instalare |
Wall-mount kit |
| Mecanic |
Metal |
| Conformitatea standardelor |
| Respectarea standardelor |
IEEE 802.3 10BASE-T standard
IEEE 802.3u 100BASE-TX standard
IEEE 802.3x Full-duplex flow control
EIA/TIA RS422/485
|
| Respectarea reglementărilor |
FCC Part 15 Class B, CE |
| Testul de stabilitate |
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
|
| Mediu inconjurator |
| Temperatura |
Operating: -40~75 degrees C
Storage: -40~75 degrees C
|
| Umiditate |
Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
|
