| Specificații hardware |
| Porturile de cupru |
Ten 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Port-1 to Port-10) |
| Sloturi SFP / mini-GBIC |

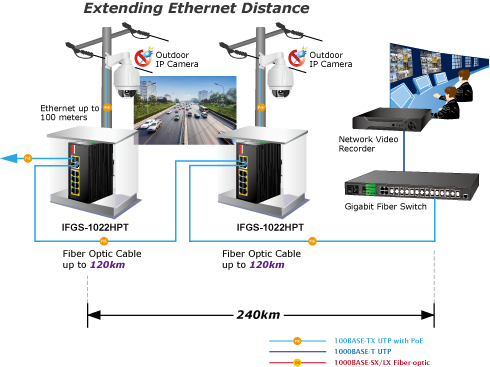

Two 1000BASE-SX/LX/BX SFP interfaces (shared with Port-9 and Port-10) |
| PoE port injector |
Eight ports with 802.3af/802.3at PoE+ injector function (Port-1 to Port-8) |
| Schimbarea arhitecturii |
Store-and-Forward |
| Comutatorul Fabric |
5.6Gbps/non-blocking |
| Transmitere tranzitorie @ 64 octeți |
4.19Mpps @64 bytes |
| MAC Address Table |
16K entries |
| Tampon de date partajat |
4Mb SRAM |
| Controlul debitului |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
|
| Jumbo Frame |
10 Kbytes |

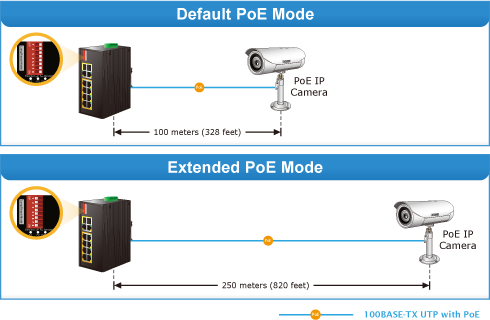

| Comutator DIP (Port-1-Port-8) |
Standard mode: 30-watt PoE transmit distance of 100m at speed of 10/100Mbps
Extend mode: 30-watt PoE transmit distance of 250m at speed of 10Mbps |
| LED |
3 x LED for System and Power:
■ Green: DC Power 1
■ Green: DC Power 2
■ Red : Power Fault
2 x LED for PoE Copper Port (Port-1~Port-8):
■ Green: LNK/ACT (10/100/1000Mbps)
■ Orange: PoE-In-Use
2 x LED for 10/100/1000T Copper Port (Port-9~Port-10):
■ Green: 1000 LNK/ACT
■ Orange: 10/100 LNK/ACT
2 x LED for per mini-GBIC interface (Port-9~Port-10)
■ Orange: 1000 LNK/ACT
■ Green: 1000 LNK/ACT |
| Conector |
Removable 6-pin terminal block
■ Pin 1/2 for Power 1
■ Pin 3/4 for power fault alarm
■ Pin 5/6 for Power 2 |
| Alarma |
One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V AC |
| Cerinte de putere |

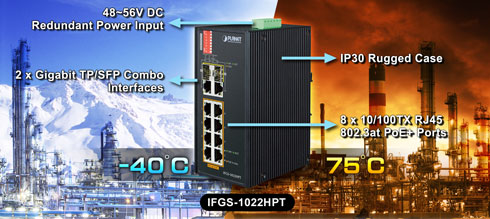

48~56V DC, 6A (max.) (>51V DC for PoE+ output recommended) |
| Consum de energie / dizolvare |
19 watts, 64BTU (Standby without PoE function) at DC 56V power input
23 watts, 78BTU (Full loading without PoE function) at DC 56V power input
244 watts, 832BTU (Full loading with PoE function) at DC 56V power input |
| Dimensiuni (L x Î x H) |
72 x 107 x 161 mm |
| Greutate |
1034g |
| Protecția ESD |
6KV DC |
| împrejmuire |
IP30 aluminum case |
| Instalare |
DIN-rail kit and wall-mount kit |
| Putere peste Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
| Tip de alimentare PoE |
End-span |
| Alocarea pinilor de putere |
1/2(+), 3/6(-) |
| Putere de ieșire PoE |
IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 51V~56V DC (depending on the power supply), max. 30 watts |
| PoE Power Buget |
Dual power input: maximum 240W (depending on power input) |
| Max. Numărul PD-urilor din clasa 2 |
8 |
| Max. Numărul PD-urilor din clasa 3 |
8 |
| Max. Numărul PD-urilor din clasa 4 |
8 |
| Conformitatea standardelor |
| Respectarea reglementărilor |
FCC Part 15 Class A, CE |
| Testul de stabilitate |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Respectarea standardelor |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus |
| Mediu inconjurator |
| Temperatura de Operare |
-40 ~ 75 degrees C |
| Temperatura de depozitare |
-40 ~ 85 degrees C |
| Umiditate |
5 ~ 95% (non-condensing) |
