| Specificații hardware |
| Porturile de cupru |
8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Sloturi SFP / mini-GBIC |
2 1000BASE-SX/LX/BX SFP interfaces (Port-9 to Port-10)
Compatible with 100BASE-FX SFP |
| PoE port injector |
8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Schimbarea arhitecturii |
Store-and-Forward |
| Comutatorul Fabric |
20Gbps/non-blocking |
| Capacitatea de transfer (pachet pe secundă) |
14.88Mpps@ 64 bytes packet |
| Tabel de adrese |
8K entries, automatic source address learning and aging |
| Tampon de date partajat |
4Mbits |
| Controlul debitului |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex |
| Jumbo Frame |
9Kbytes |
| Butonul de resetare |
< 5 sec: System reboot
> 5 sec: Factory default |
| Protecția ESD |
6KV DC |
| împrejmuire |
IP30 metal case |
| Instalare |
DIN rail kit and wall-mount |
| Conector |
Removable 3-pin terminal block for power input
- Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)
- Pin 3 for earth ground
DC power jack with 2.0mm central pole |
| Indicator cu LED |
System:
PWR(Green)
Ring (Green)
Ring Owner (Green)
Per 10/100/1000T RJ45 PoE+ Ports:
PoE-in-Use (Orange)
LNK/ACT (Green)
Per SFP Interface:
100 LNK/ACT (Orange)
1000 LNK/ACT (Green) |
| Dimensiuni (L x Î x H) |
180 x 140 x 24.4 mm |
| Greutate |
686g |
| Cerinte de putere |
Dual 48~56V DC (>51V DC for PoE+ output recommended) |
| Consumul de energie |
Max. 6.6 watts/22.6BTU (Power on without any connection)
Max. 250.4 watts/859.1BTU (Full loading with PoE function) |
| Power Over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
| Tip de alimentare PoE |
End-span |
| Putere de ieșire PoE |
IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 51V~56V DC (depending on the power supply), max. 36 watts
|
| Alocarea pinilor de putere |
1/2(+), 3/6(-) |
| PoE Power Buget |
240W maximum (depending on power input) |
| Max. Numărul PD-urilor din clasa 2 |
8 |
| Max. Numărul PD-urilor din clasa 3 |
8 |
| Max. Numărul PD-urilor din clasa 4 |
8 |
| Funcția stratului 2 |
| Interfețe de management de bază |
Console; Telnet; Web browser; SNMP v1, v2c |

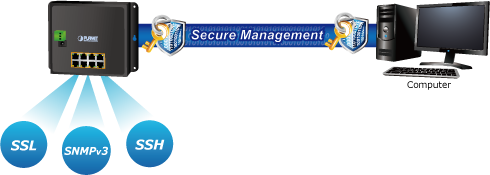

| Interfețe de management securizate |
SSH, SSL, SNMP v3 |
| Configurația portului |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control |
| Starea portului |
Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status |
| Port Mirroring |
TX/RX/both
1 to 1 monitor |
| VLAN |
802.1Q tag based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Agregarea legăturii |
IEEE 802.3ad LACP/static trunk
Supports 2 trunk groups with 2 ports per trunk group |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet |
| IGMP Snooping |
IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support |
| MLD Snooping |
MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support |
| Lista de control al accesului |
IP-based ACL/MAC-based ACL
Up to 256 entries |
| Bandwidth Control |
Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps |
| SNMP MIB |
RFC 1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB |
| Funcția stratului 3 |
| Interfețe IP |
Max. 8 VLAN interfaces |
| Tabel de rutare |
Max. 32 routing entries |
| Protocoale de rutare |
IPv4 software static routing
IPv6 software static routing |
| Conformitatea standardelor |
| Respectarea reglementărilor |
FCC Part 15 Class A, CE |
| Testul de stabilitate |
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration) |
| Respectarea standardelor |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

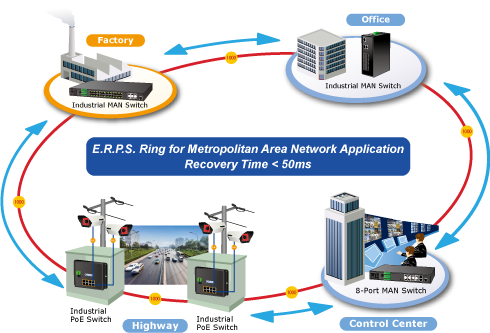

ITU-T G.8032 Ethernet Ring Protection Switching
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2 |
| Mediu inconjurator |
| Temperatura de Operare |
-40 ~ 75 degrees C |
| Temperatura de depozitare |
-40 ~ 85 degrees C |
| Umiditate |
5 ~ 95% (non-condensing) |
