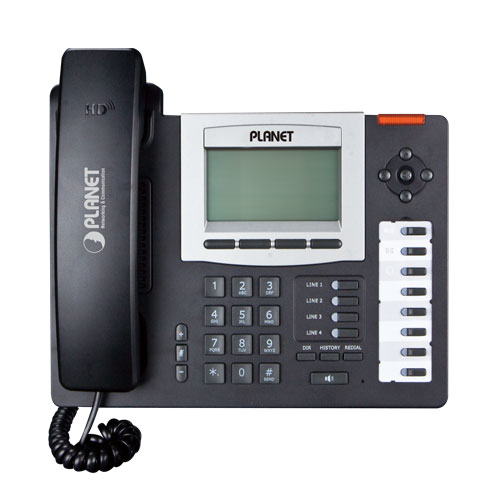

VIP-5060PT

Professional HD PoE IP Phone (6-Line)

Overview
Application
Key Features
Specification
Download
Related Products

Cost-effective, High-performance PoE VoIP Phone

To build high-performance VoIP communications at a low cost, PLANET has launched a new member of its IP Phone family, the VIP-5060PT enterprise-class 6-Line PoE IP Phone. It complies with IEEE 802.3af PoE interface for flexible deployment. The VIP-5060PT makes it simple for the enterprise featuring voice and data system or expanding voice system to new locations. It helps the company to save money on long distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long distance call charge would occur. The VIP-5060PT also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes.

High Quality HD Voice over IP

The VIP-5060PT delivers HD voice (High-Definition Voice) which is the next generation of voice quality for telephony audio, making the quality of voice better than that (toll quality) of the standard digital telephony and even close to that of a room conversation. HD voice is transmitted in the audio frequency range of 50 Hz to 7 kHz or higher over telephone lines, resulting in higher quality voice and clearer communication.

Standard Compliance

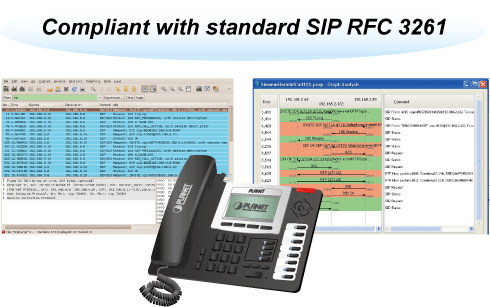

The VIP-5060PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VIP-5060PT is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

Enhanced, Full-Featured Business IP Phone

The VIP-5060PT is a full-featured enhanced business IP Phone that addresses the communication needs of the enterprises. It provides 6 voice lines and dual 10/100/1000Mbps Ethernet. Furthermore, the VIP-5060PT delivers user-friendly design containing a 128 X 64 LCD with white backlight, 4 Line keys and 4 soft keys. It supports 5 extension consoles with each consisting of 26 keys.

The VIP-5060PT supports all kinds of SIP based phone features including Call Waiting, Auto Answer, Music on Hold, Caller ID and Call Waiting ID, 3-way Conferencing, Call Hold, Call Forwarding, Black List, DTMF Relay, In-Band, Out-of-Band (RFC 2833) and SIP INFO, among others. Besides office use, the VIP-5060PT is also the ideal solution for VoIP service offered by Internet Telephony Service Provider (ITSP).

Secure, High-Quality VoIP Communication

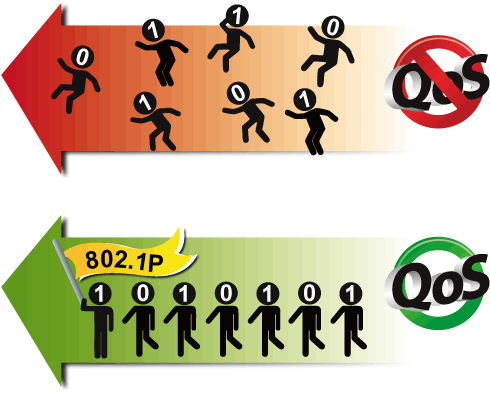

The VIP-5060PT can effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service), 802.1Q VLAN tagging, and IP TOS (Type of Service) technology. Using voice and data VLAN can easily separate the data and voice, thus maintaining the best quality.

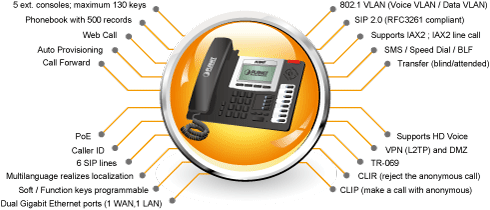

Highlights

Dual 10/100/1000 Gigabit Ethernet
Supports SIP 2.0 (RFC3261)
Supports six SIP voice lines
IEEE 802.3af Power over Ethernet compliant
Supports multiple road calls waiting in line
Supports HD voice
Supports SRTP (Secure Real-time Transport Protocol) and Busy Lamp Field (BLF)
Supports 5 extension consoles; max. 130 definable keys

Advanced Features

SIP supports SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/ IP call
Inband, SIP info, RFC 2833 DTMF Relay
9 kinds of ring types and 3 user-defined music rings
Large dot matrix LCD display and soft keys make user easier to use
Soft keys and function keys programmable
Multilanguage realizes localization
Echo cancellation: Supports G.168, and hands-free can support 96ms
Full duplex hands-free speaker phone
Hands-free headset ringing choice
Supports Voice Gain Setting, VAD, CNG
Voice codec setting for each SIP line

SIP Applications

Call forward / Transfer (blind/attended)
Call Holding / Waiting
3-way conference
Paging and Intercom
Call park / Call pickup / Join call
Redial and click to dial
Secondary dialing automatically
Incoming calls /outgoing calls / missing calls (Each supports 100 records)
SMS and Speed Dial
Phonebook up to 500 records
XML phonebook / browser

Call Control Features

Flexible dial map / Hotline / Empty calling no.
Reject service / Black list for reject authenticated call
White list / Limit call
Do not disturb (DND)
Caller ID / CLIR (reject the anonymous call) / CLIP (make a call with anonymous)
Dial without register

Network Features

Route and Bridge modes
PPPoE / DHCP client on WAN
802.1 VLAN (voice VLAN / data VLAN)
VPN (L2TP) and DMZ
Main DNS and secondary DNS server
DNS Relay, SNTP Client, Firewall, openVPN

Maintenance and Management

Integrated web server provides web-based administration and configuration
Telephone keypad configuration via display menu/navigation
Automated provisioning and upgrade via HTTPS, HTTP, TFTP
User Authentication for configuration pages
Local and Remote Syslog (RFC 3164)
SNTP Time Synchronization
TR069

Hardware
Lines (Direct Numbers)	6-Line enterprise-class IP phone
Display	80 x 43 mm / 128 x 64 pixel LCD with blue backlight
Feature Keys	4 line keys 8 DSS keys 4 Soft Keys 12 dialing buttons (0~9, *, #) 12 fixed function buttons
Network Interfaces	2 x 10/100/1000Base-T RJ-45 Auto Negotiation, Auto MDI Network-port with 802.3af PoE support
Protocols and Standard
Data Networking	MAC Address (IEEE 802.3) IPv4 (RFC 791) Address Resolution Protocol (ARP) DNS: A record (RFC 1706), SRV record (RFC 2782) Dynamic Host Configuration Protocol (DHCP) client (RFC 2131) Internet Control Message Protocol (ICMP) (RFC 792) TCP (RFC 793) User Datagram Protocol UDP (RFC 768) Real Time Protocol RTP (RFC 1889, 1890) Real Time Control Protocol (RTCP) (RFC 1889) Differentiated Services (DiffServ) (RFC 2475) Type of service (ToS) (RFC 791, 1349) VLAN tagging 802.1p Layer 2 quality of service (QoS) Simple Network Time Protocol (SNTP) (RFC 2030) Backward compatible with RFC 2543 Session Timer (RFC 4028) SDP (RFC 2327) NAPTR for SIP URI Lookup (RFC 2915)
Voice Gateway	SIP version 2 (RFC 3261, 3262, 3263, 3264) SIP supported in STUN (RFC 3489) Message Waiting Indicator (RFC 3842) Voice algorithms: - G.711 (A-law and μ-law) - G.723.1 high/low - G.729a/b - G.722.1 (HD Voice) - G.726 Dual-Tone Multi-Frequency (DTMF), In-Band and Out-of-Band (RFC 2833) (SIP INFO) Voice Activity Detection (VAD) with Silence Suppression Adaptive Jitter Buffer Management Comfort Noise Generation Echo Cancellation Message
Function
Advanced Features	SIP 2.0 (RFC3261) IEEE 802.3af Power over Ethernet (PoE) compliant Multiple road call waiting in line Supports HD voice Supports SRTP and BLF SIP supports SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer / IP call Inband, SIP info, RFC 2833 DTMF Relay 9 kinds of ring types and 3 user-defined music rings Large dot matrix LCD display and soft keys make user easier to use Supports 5 extension consoles with each consisting of 26 keys Soft keys programmable; function keys programmable Multilanguage realizes localization Echo cancellation: Support G.168, and Hands-free can support 96ms Full duplex hands-free speaker phone Hands-free headset ringing choice Supports Voice Gain Setting, VAD, CNG Voice codec setting for each SIP line
SIP Applications	Call forward / Transfer (blind/attended) Call Holding / Waiting 3-way conference Paging and Intercom Call park / Call pickup / Join call Redial and click to dial Secondary dialing automatically Incoming calls / outgoing calls / missing calls (Each supports 100 records) SMS and Speed Dial Phonebook for 500 records XML phonebook/browser
Call Control Features	Flexible dial map / Hotline / Empty calling no. Reject service / Black list for reject authenticated call White list / Limit call Do not disturb (DND) Caller ID / CLIR (reject the anonymous call) / CLIP (make a call with anonymous) Dial without register
Network Features	Route and Bridge modes PPPoE / DHCP client on WAN 802.1 VLAN (voice VLAN / data VLAN) VPN (L2TP) and DMZ Main DNS and secondary DNS server DNS Relay, SNTP Client, Firewall, openVPN
Management	Integrated web server provides web-based administration and configuration Telephone keypad configuration via display menu/navigation Automated provisioning and upgrade via HTTPS, HTTP, TFTP User Authentication for configuration pages Local and Remote Syslog (RFC 3164) SNTP Time Synchronization TR069
Environments
Power Requirements	5V DC, 1A IEEE 802.3af Power over Ethernet
Operating Temperature	0 ~ 40 degrees C
Operating Humidity	10 ~ 65% (non-condensing)
Weight	990 g
Dimensions (W x D x H)	290 x 260 x 60 mm
Emission	CE, FCC, RoHS

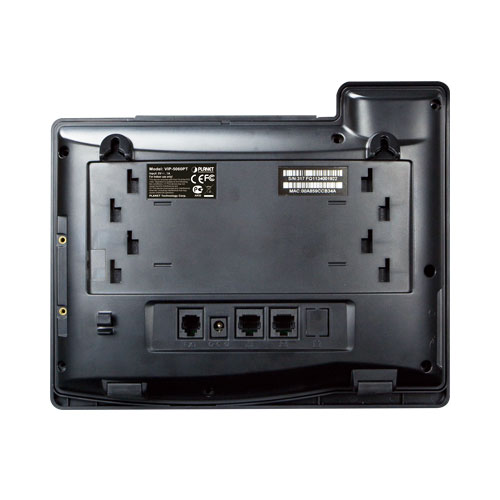

Connectors	Two 10/100/1000 BASE-T RJ-45 Ethernet ports Handset: RJ-9 connector Headset: RJ-9 connector RJ-11 EXT connector DC power jack Built-in speakerphone and microphone
