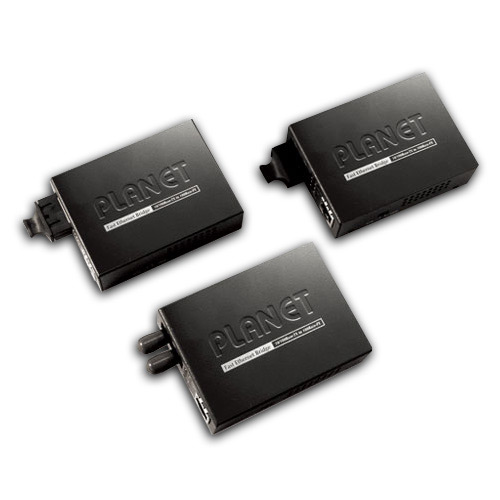

| Produs |
| Protocol |
IEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX
IEEE 802.3u, 100Base-FX |
| Dimensiune (L x Î x H) |
97 x 69 x 26 mm |
| Greutate |
0.2kg |
| Putere |
5V DC, 2A, max. |
| Conectori și cabluri |
| Cuplul twisted / STP |
RJ45, Category 5 (EIA/TIA 568) |
| Fibra optica |
FT-801 : ST / Multi-mode / 2km
FT-802 : SC / Multi-mode / 2km
FT-803: MTRJ / Multi-mode / 2km
FT-802S15 : SC / Single Mode / 15km
FT-802S35 : SC / Single Mode / 35km
FT-802S50 : SC / Single Mode / 50km
FT-806A20: WDM SC / Single Mode / 20km
FT-806B20: WDM SC / Single Mode / 20km |
| Cablu multi-mod |
50/125, 62.5/125 µm |
| Cablu cu un singur mod (SM) |
9/125 µm |
| Lungime de undă optică |
FT-801: 1310nm
FT-802: 1310nm
FT-803: 1310nm
FT-802S15: 1310nm
FT-802S35: 1310nm
FT-802S50: 1310nm
FT-806A20: TX: 1310nm; RX: 1550nm
FT-806B20: TX: 1550nm; RX: 1310nm
|
| Puterea de pornire (dBm) Max. |
FT-801: -14
FT-802: -14
FT-803: -14
FT-802S15:0
FT-802S35:-8
FT-802S50:0
FT-806A20:-8
FT-806B20:-8
|
| Puterea de pornire (dBm) Min. |
FT-801: -20 (62.5/125µm), -23.5 (50/125µm)
FT-802: -20 (62.5/125µm), -23.5 (50/125µm)
FT-803: -20 (62.5/125µm), -23.5 (50/125µm)
FT-802S15: −20
FT-802S35: -15
FT-802S50:-5
FT-806A20:-14
FT-806B20:-14
|
| Primiți sensibilitatea (dBm) |
FT-801: -31.8
FT-802: -31.8
FT-803: -31.8
FT-802S15: -32
FT-802S35:-34
FT-802S50: -35
FT-806A20:-31
FT-806B20:-31 |
| Putere maximă de intrare (dBm) |
FT-801: -14
FT-802: -14
FT-803: -14
FT-802S15:0
FT-802S35:0
FT-802S50:0
FT-806A20:0
FT-806B20:0 |
| Distanțele și funcțiile acceptate |
| Trusă twisted pair STP |
100 m / 328 ft. |
| Fibra optică multi-mod |
412 m / 1,350 ft. (Half-Duplex)
2 km / 1.2 mile. (Full-Duplex) |
| Modul unic (SM) |
412 m / 1,350 ft. (Half-Duplex)
15 km / 9 mile. (Full-Duplex)
20 km / 12 mile. (Full-Duplex)
35 km / 21 mile. (Full-Duplex)
50 km / 31 mile. (Full-Duplex)
|
| Mod Port |
TP: Half and Full Duplex, auto-negotiation
FX: Half and Full Duplex via DIP switch |
| Mediu și emisii |
| Mediu de lucru |
Temperature: 0~50 Degree C
Humidity: 5~90% non-condensing |
| Mediu de stocare |
Temperature: -40~70 Degree C
Humidity: 5~90% non-condensing |
| Emisiile |
FCC Class A, CE Class A |
