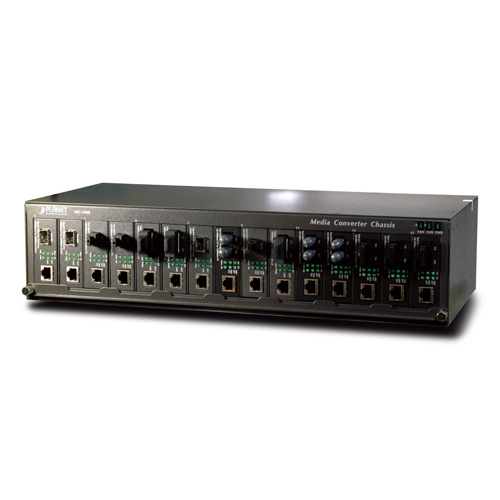

Providing more capacity to the converters in one chassis, the MC-1500 provides 15-slot in the 19"-rack saving more spaces for fiber-optic wiring yet ease the maintenance of media conversion.
The MC-1500, media chassis allows the connectivity of up to fifteen PLANET Ethernet/ Fast Ethernet Gigabit Ethernet Converter in one chassis. Two fans with LED indicators for the system cooling and keep you informed in the system and FAN status.
Independent power supply in each bay of the MC 1500, you can freely install the converters without interrupting the rest of the networks. Moreover, each bay of the media center can deploy to PLANET's converter family like Ethernet, Fast Ethernet twisted pair to Fiber-optic conversion, Gigabit SX to LX conversion, etc.

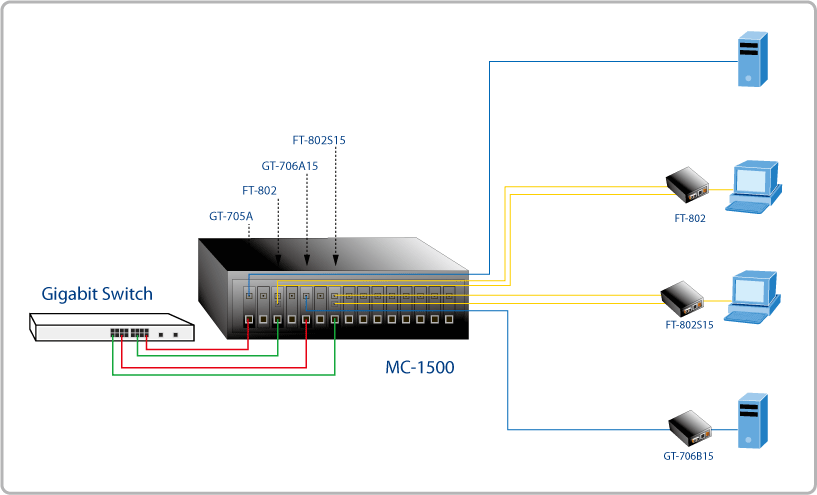

Fiber-optic wiring/ Media conversion center
With up to 15-bay, this high-density media chassis can simply be a conversion center of your fiber-optic network, or a network with the demand of multiple media interfaces, in a cost-effective way.
Slot
15 open slot; 27 x 95 x 71 mm (W x D x H)
Dimension (W x H x D)
440 mm x 103 mm x 180 mm, 2.4U height
Power Requirement
100-240V AC, 1.8A, 50/60Hz
Power output
+5V DC per slot, 1 A minimum
DC Output
+5VDC (+/-1%) per slot
LED indicators
3, Power, Fan A, Fan B (On: operating; Off: device or fan fail)
Environment
Temperature: 0~50 Degree C (operating); -20~70 Degree C (storage) Humidity: 0~90% (non-condensing)
