| Porturi-cupru |
1 x 10 / 100Base-TX port |
| Porturi-Fiber |
2 x 100Base-FX port |
| Interfață optică |
SFP |
| Lungime de undă optică |
Very on SFP module |
| Lansarea puterii (dBm) -Max. |
Very on SFP module |
| Lansarea puterii (dBm) -Min. |
Very on SFP module |
| Primiți sensibilitate |
Very on SFP module |
| Putere maximă de intrare |
Very on SFP module |

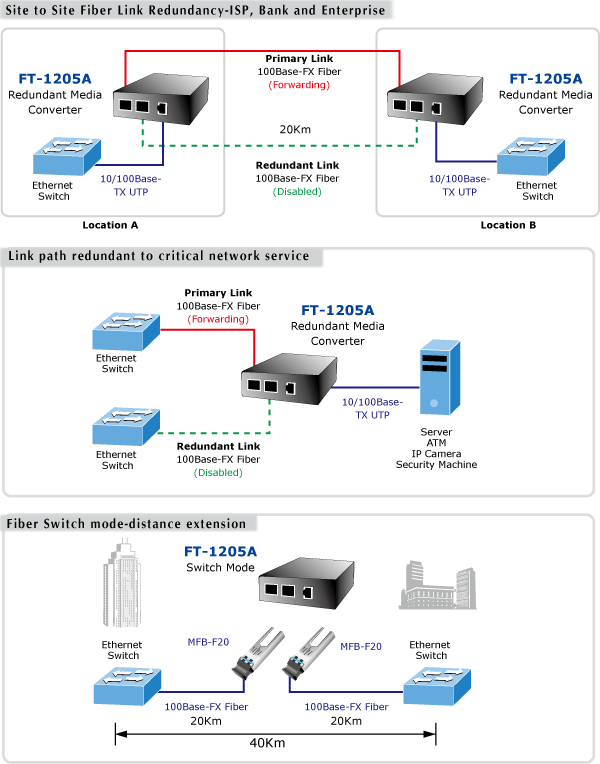

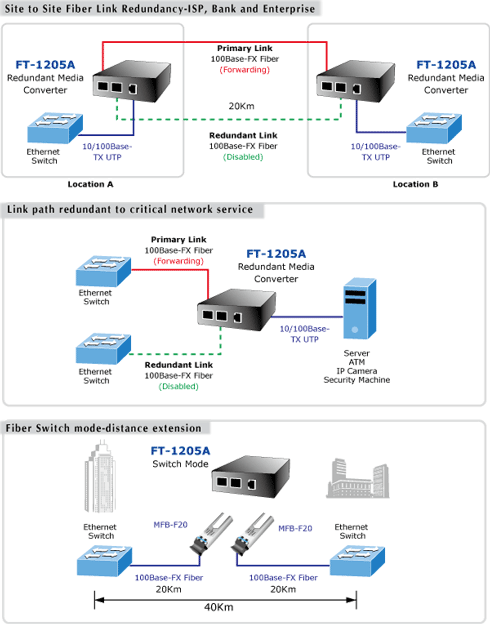

| Link redundant |
Port 1 (Primary)
Port 2 (Backup) |
| Cablu-twisted-pair |
10Base-T : 2-Pair UTP Cat. 3, 4, 5, up to 100 m
100Base-TX : 2-Pair UTP Cat. 5, 5e up to 100 m |
| Cablu de cablu și fibră optică |
50 / 125µm or 62.5 / 125µm multi-mode fiber cable, up to 2km.
9 / 125µm single-mode cable, provides long distance for 20 / 40 / 60km or longer (very on SFP module) |
| Speed-twisted-pair |
10 / 20Mbps for Half / Full-Duplex
100 / 200Mbps for Half / Full Duplex |
| Viteza de fibră optică |
200Mbps for Full-Duplex |
| Indicatoare LED |
System: One Power LED
TP Port: One Speed; One LNK / ACT
Fiber Port: One Link / Act |
| Comutatoare DIP |
DIP 1: On 3-Port Switch Mode; Off 2-Port Redundant
DIP 2: On Loop Back Reply Enable; Off Loop Back Reply Disable |
| Standarde |
IEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX, 100Base-FX
IEEE 802.3x Flow Control |
| Consumul de energie |
6.7 Watts (maximum) |
| Putere |
5V / 2A |
| Dimensiune (L x Î x H) |
97 x 69 x 25 mm |
| Mediu de lucru |
Operating temperature: 0~50 Degree C
Humidity: 10~90% non-condensing |
| Mediu de stocare |
Storage temperature: -25~70 Degree C
Humidity: 10~90% non-condensing |
