| Specificații hardware |
| Interfață |
WAN Port: 1 x 10/100/1000 Mbps Auto MDI/MDI-X RJ45 port
LAN Port: 4 x 10/100/1000 Mbps Auto MDI/MDI-X RJ45 ports (LAN1~4)
USB Port: 1 x USB 3.0, Type A, 5V 900mA |
| Antenele câștigă |
2.4GHz: 2 x 1.8dBi Internal Antenna
5GHz: 2 x 3.8dBi Internal Antenna
|
| Buton |
1 x Reset button (Press for about 10 seconds to reset the device to factory default.)
1 x WPS button (Press for 1 second to activate WPS function.) |
| Indicatoare LED |
PWR x 1
WLAN (2.4GHz & 5GHz) x 2
WAN x 1
WPS x 1 |
| Material |
Plastic |
| Dimensiuni (L x Î x H) |
192x 115 x 90 mm |
| Greutate |
308g |
| Necesitatea de alimentare |
12V DC, 2A |
| Consumul de energie |
12W |
| Specificațiile interfeței fără fir |
| Standard |
IEEE 802.11ac (Draft 2.0) 5GHz
IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz |
| Banda de frecventa |
Simultaneous 2.4 GHz and 5 GHz |
| Tipul de modulare |
802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK) |

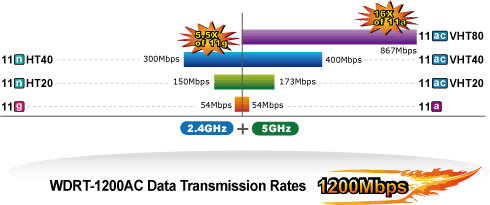

| Rata de date |
2.4GHz up to 300Mbps
5GHz up to 866Mbps |
| Canal |
2.4GHz:
America / FCC: 2.412~2.462GHz (11 Channels)
Europe / ETSI: 2.412~2.472GHz (13 Channels)
Japan / TELEC: 2.412~2.484GHz (14 Channels)
5GHz:
5.180-5.240GHz, 5.745-5.825GHz (Up to 9 channels)
The actual channels in application will vary depending on the regulation in
different regions and countries
|
| latimea canalului |
802.11ac: 20/40/80MHz
802.11n: 20/ 40MHz |
| RF Putere / EIRP |
2.4GHz:
11b: 17±1.5dBm
11g: 14±1.5dBm
11n: 14±1.5dBm
5GHz:
11a: 14±1.5dBm
11n: 14±1.5dBm
11ac: 13±1.5dBm
|
| Primiți sensibilitate |
2.4GHz:
11b (11Mbps): -79dBm
11g (54Mbps): -70dBm
11n (20M)mode: -67dBm
11n (40M)mode: -64dBm
5GHz:
11a: -70dBm
11n (20M)mode: -67dBm
11n (40M)mode: -64dBm
11ac (20M)mode: -57dBm
11ac (40M)mode: -54dBm
11ac (80M)mode: -51dBm
|
| Transmite controlul puterii |
25%, 50%, 75%, 100% |
| Funcții de gestionare fără fir |

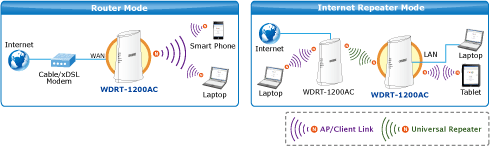

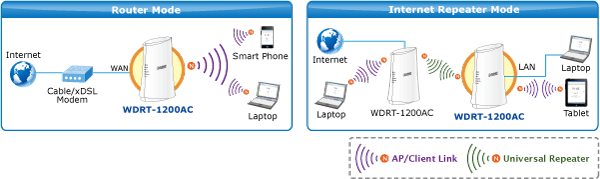

| Moduri wireless |
■ Router
■ WDS Repeater |
| Securitate criptare |
WEP (64/128-bit)
WPA / WPA2
WPA-PSK/ WPA2-PSK encryption |
| Securitate wireless |
Provides Wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (WiFi Protected Setup)
Enable / Disable SSID Broadcast |
| Wireless avansat |
Supports Dual-SSID (2.4GHz & 5GHz) |
| Max. Clienți suportați |
Wire: 64
Wireless: 128 |
| Caracteristicile routerului |
| Tip de conectare la Internet |
Shares data and Internet access for users, supporting the following Internet accesses:
■ DHCP
■ Static IP
■ PPPoE
■ PPTP
■ L2TP
|
| Firewall |
NAT firewall
Built-in NAT server which supports Virtual Server, and DMZ
Built-in firewall with URL filtering, and MAC address filtering |
| LAN |
Built-in DHCP server supporting static IP address distribution
Supports UPnP, Dynamic DNS
Supports Packets Statistics
Session Number: Max. 7776 |
| Distribuire USB |
Samba
FTP Server
DLNA Media Server |
| Managementul sistemului |
Web-based (HTTP) management interface
Remote management (WAN Access Control)
SNTP synchronization
Supports Scheduling Reboot
System Log and e-mail events notification |
| Compatibilitate OS |
Windows 7 / Windows 8
Windows Vista
Windows XP
Mac OS X 10.4 or later |
| Conformitatea standardelor |
| Standardele IEEE |
IEEE 802.11ac (Draft 2.0, 2T2R, up to 867Mbps)
IEEE 802.11n (2T2R, up to 300Mbps)
IEEE 802.11a
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T |
| Alte protocoale și standarde |
CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP |
| de reglementare |
CE, RoHS, WEEE |
| Mediu inconjurator |
| Temperatura |
Operating: 0 ~ 45 degrees C
Storage: -40 ~ 70 degrees C |
| Umiditate |
Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing) |
