WDAP-C7200AC

1200Mbps 802.11ac Dual Band Ceiling Mount Wireless Access Point

Overview
Application
Key Features
Specification
Download

Brand-new 11ac Wireless Technology

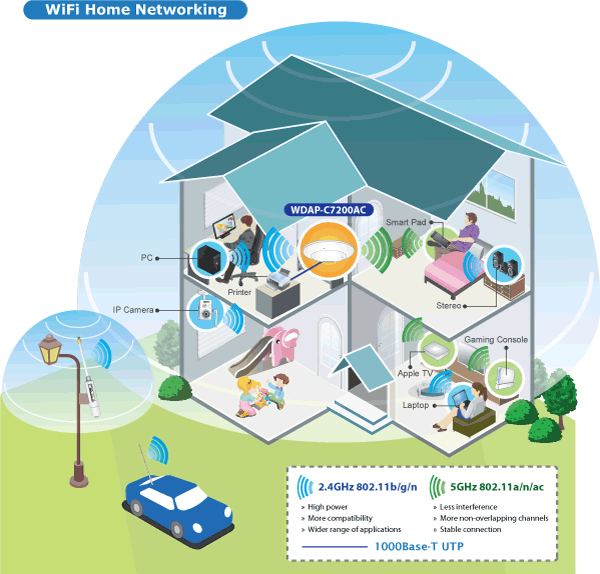

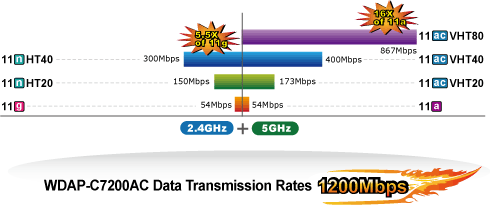

The WDAP-C7200AC supports IEEE 802.11a/b/g/n/ac dual band standards with 2T2R MIMO technology; therefore, it provides the wireless speed up to 300+867Mbps, which is 16X faster than the 11a access point at 5GHz frequency and 5.5X faster than the 11g access point at 2.4GHz frequency. Moreover, the WDAP-C7200AC is equipped with Gigabit Ethernet Port. Compared with the general wireless APs, the WDAP-C7200AC offers faster transmission speed for the network applications and less interference to enhance data throughput. The incredible wireless speed makes it ideal for handling multiple HD movie streams, high-resolution on-line games, stereo music, VoIPs and data streams at the same time stably and smoothly.

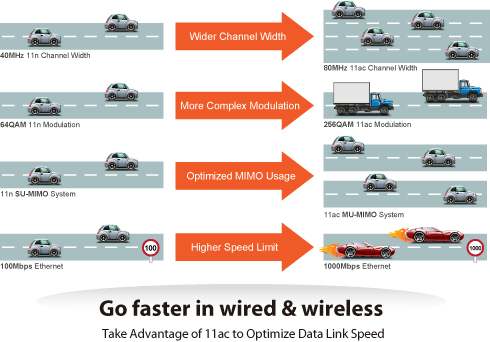

11ac Innovations Bring Excellent Data Link Speed

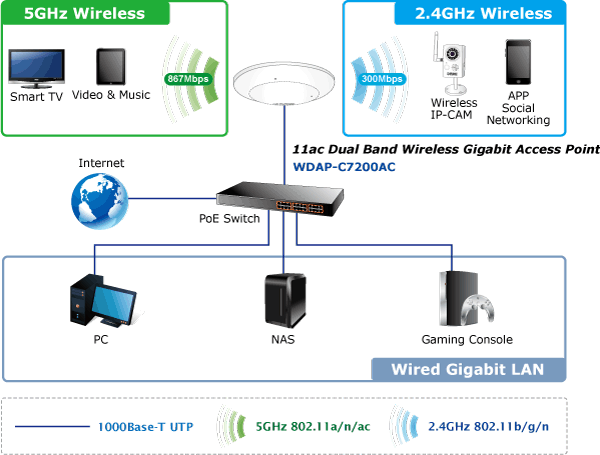

The WDAP-C7200AC is built-in with high power amplifier and 4 highly-sensitive antennas which provide stronger signal and excellent coverage even in the wide-ranging or bad environment. With adjustable transmit power option, the administrator can flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. To provide extremely high-speed user experience, the WDAP-C7200AC adopts IEEE 802.11ac technology to extend the 802.11n 40MHz channel binding to 80MHz and the implementation of 256-QAM modulation where higher transmitting/receiving rates go up to 867Mbps in 5GHz less interference frequency band. In addition, the WDAP-C7200AC is equipped with Gigabit LAN port to eliminate the restriction of 100Mbps Fast Ethernet wired connection to let users fully enjoy the high speed provided by wireless. The IEEE 802.11ac also optimizes MU-MIMO (Multi-User MIMO) mechanism to serve multiple devices simultaneously.

Ceiling Mount Designed for Highly-efficient Wireless Coverage

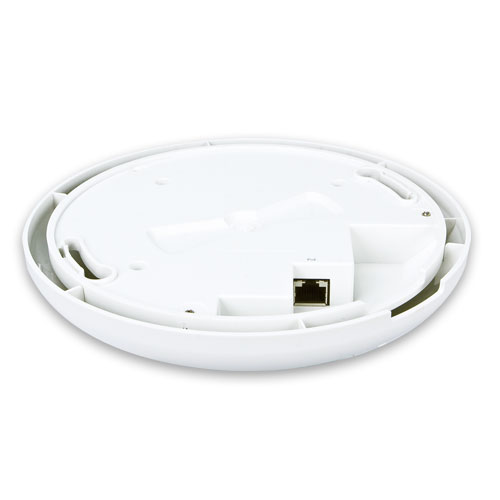

Featuring attractive flying saucer appearance and ceiling-mount design, the WDAP-C7200AC can be firmly installed on the ceiling or the wall conveniently. The ceiling-mount design is smartly integrated into the environment. Its streamlined body without the protruding antennas also gives effects of embellishment in the surroundings. Moreover, the WDAP-C7200AC is compliant with the IEEE 802.3at PoE standard, so it is easy and flexible in client-side installation. It is definitely nice to have this eye-catching access point mount on the ceilings and walls of villas, hotels, exhibit halls, and other establishments.

Full Support of Wireless Security Encryption and Wireless Value-added Features

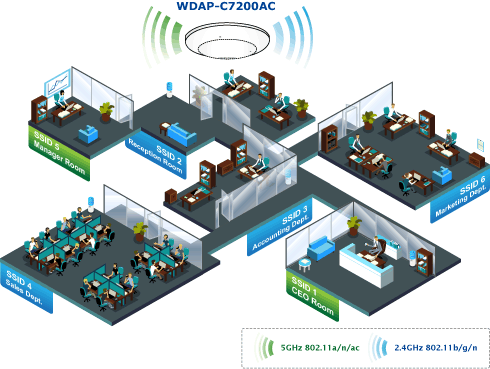

In aspect of security, besides 64/128-bit WEP encryption, the WDAP-C7200AC is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x Radius authority to secure and protect your wireless LAN. It provides the wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection. Being an access point, the WDAP-C7200AC supports the VLAN function to allow multiple SSIDs (10 sets of SSIDs) to access Internal VLAN topology. Moreover, its Wi-Fi Multimedia (WMM) mechanism provides enhanced QoS over wireless connection for better performance in multimedia transmission like on-line gaming and video streaming, which are classified as a top priority.

Multiple Operation Modes for Various Applications

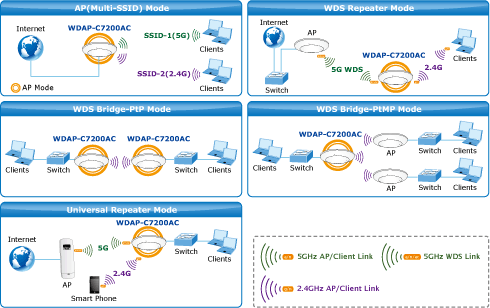

The WDAP-C7200AC supports AP, Client, WDS Bridge, Repeater and Universal Repeater modes, through which it provides more flexibility for users when wireless network is established. Compared with general wireless access point, the WDAP-C7200AC offers more powerful and flexible capability for wireless clients.

Hardware Specifications
Interfaces LAN	1 x 10/100/1000Base-T RJ45 port Auto-negotiation and Auto MDI/MDI-X
Antennas Gain	2 x 2.4GHz 2.5dBi PCB antenna 2 x 5GHz 4dBi PCB antenna
Reset Button	Reset button on the top cover Press over 7 seconds to reset the device to factory default
LED Indicators	PWR Allow LED to turn off via software control
Material	Plastic
Dimensions (Φ x H)	194 x 49 mm
Weight	300 ±5g
Power Requirements	802.3at PoE, 48-56V DC input
Power Consumption	20W (max.)
Mounting	Ceiling Mount
Wireless Interface Specifications
Standard	IEEE 802.11ac (Draft 2.0) 5GHz IEEE 802.11a/n 5GHz IEEE 802.11b/g/n 2.4GHz
Antenna Structure	802.11ac: 2T2R MU-MIMO 802.11n: 2T2R MIMO
Modulation	DSSS
Data Modulation	802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)
Band Mode	2.4GHz / 5GHz concurrent mode
Frequency Range	2.4GHz: America/ FCC: 2.412~2.462GHz 　　　　Europe/ ETSI: 2.412~2.484GHz 5GHz: America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz 　　　Europe/ ETSI: 5.180~5.240GHz
Operating Channels	2.4GHz: America/ FCC: 1~11 　　　　Europe/ ETSI: 1~13 5GHz: America/ FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 　　　Europe/ ETSI: 36, 40, 44, 48 *5GHz channel list will vary in different countries according to their regulations.
Channel Width	802.11ac: 20/40/80MHz 802.11n: 20/40MHz
Data Transmission Rates	802.11ac (VHT20, Nss2-MCS8): Up to 173.3Mbps 802.11ac (VHT40, Nss2-MCS9): Up to 400Mbps 802.11ac (VHT80, Nss2-MCS9): Up to 867Mbps 802.11n (HT40): 270/243/216/162/108/81/54/27Mbps 　　　　　　　　135/121.5/108/81/54/40.5/27/13.5Mbps (dynamic) 802.11n (HT20): 130/117/104/78/52/39/26/13Mbps 　　　　　　　　65/58.5/52/39/26/19.5/13/6.5Mbps (dynamic) 802.11g: 54/48/36/24/18/12/9/6Mbps (dynamic) 802.11b: 11/5.5/2/1Mbps (dynamic)
Transmission Distance	802.11ac (draft): up to 30m 802.11n: up to 70m 802.11g: up to 30m The estimated transmission distance is based on the theory. The actual distance will vary in different environments.
Max. RF Power	5GHz: 　　　802.11ac (VHT20): 22dBm 　　　802.11ac (VHT40): 22dBm 　　　802.11ac (VHT80): 22dBm 　　　802.11n (HT20): 22dBm 　　　802.11n (HT40): 22dBm 　　　802.11a: 22dBm 2.4GHz: 　　　802.11n: 17 ±2.5dBm 　　　802.11b/g: 20 ±2.5dBm
Receive Sensitivity	5GHz: 　　　802.11ac (VHT20): -91dBm @ Nss1-MCS0, -64dBm @ Nss2-MCS8 　　　802.11ac (VHT40): -89dBm @ Nss1-MCS0, -59dBm @ Nss2-MCS9 　　　802.11ac (VHT80): -86dBm @ Nss1-MCS0, -56dBm @ Nss2-MCS9 　　　802.11n (HT20): -92dBm @ MCS0, -71dBm @ MCS7 　　　802.11n (HT40): -89dBm @ MCS0, -66dBm @ MCS15 　　　802.11a: -93 @ 6Mbps, -75dBm @ 54Mbps 2.4GHz: 　　　802.11n 20MHz (MCS7): -69dBm @10% PER 　　　802.11n 40MHz (MCS15): -66dBm @10% PER 　　　802.11g (54Mbps): -74dBm @10% PER 　　　802.11b (11Mbps): -88dBm @10% PER
Software Features
Wireless Mode	■ Universal Repeater (AP+Client) ■ Repeater (WDS+AP) ■ AP (Access Point) ■ WDS PTP (Point to Point) ■ WDS PTMP (Point to Multipoint) ■ Client
Encryption Security	■ WEP (64/128-bit) encryption security ■ WPA / WPA2 (TKIP/AES) ■ WPA-PSK / WPA2-PSK (TKIP/AES)
Wireless Security	Provides wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Supports WPS (Wi-Fi Protected Setup) Enable/ Disable SSID Broadcast
Wireless Advanced	WMM (Wi-Fi Multimedia): 802.11e Wireless QoS Multiple SSID: up to 5 at 2.4GHz and 5GHz, respectively Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming Provides Wireless Statistics
Max. Clients	Wire: 253 2.4GHz Wireless: 32 5GHz Wireless: 32
LAN	Built-in DHCP server supporting static IP address distributing Supports UPnP Supports 802.1d Spanning Tree
System Management	Web-based (HTTP) management interface SNTP time synchronize Easy firmware upgrade Supports Scheduling Reboot Supports Smart Discovery Utility
Standards Conformance
IEEE Standards	IEEE 802.11ac (Draft 2.0, 2T2R, up to 867Mbps) IEEE 802.11n (2T2R, up to 300Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control
Other Protocols and Standards	CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP
Environment & Certification
Temperature	Operating: 0 ~ 50 degrees C Storage: -40 ~ 70 degrees C
Humidity	Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing)
Regulatory	FCC Part 15B & 15C, IC, RoHS
