| Specificații hardware |
| Porturile de cupru |
16 10/ 100/1000Base-T RJ45 Auto-MDI/MDI-X ports |
| Sloturi SFP / mini-GBIC |
4 1000Base-SX/LX/BX SFP interfaces (Port-17 to Port-20)
Compatible with 100Base-FX SFP
|
| Consolă |
1 x RJ45 serial port (115200, 8, N, 1) |
| Schimbarea arhitecturii |
Store-and-Forward |
| Comutatorul Fabric |
40Gbps / non-blocking |
| Capacitatea de transfer (pachet pe secundă) |
25.6Mpps |
| Tabel de adrese |
8K entries, automatic source address learning and ageing |
| Tampon de date partajat |
4Mbits |
| Controlul debitului |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
|
| Jumbo Frame |
9Kbytes |
| Butonul de resetare |
< 5 sec: System reboot
> 5 sec: Factory Default
|
| Protecția ESD |
6KV DC |
| Protecția EFT |
6KV DC |
| împrejmuire |
IP30 aluminum case |
| Instalare |
DIN rail kit and wall-mount kit |
| Conector |
Removable 6-pin terminal block for power input
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 0 & DI 1; Pin 3/4 for DO 0 & DO 1; Pin 5/6 for GND
|
| Alarma |
One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V AC |

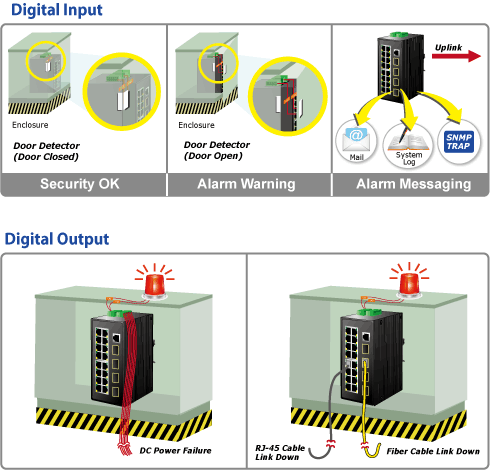

| DI / DO |
2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.
2 Digital Output (DO): Open collector to 24V DC, 100mA (max.)
|
| Indicator cu LED |
System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm (Green)
Ring (Green)
R.O. (Green)
Per 10/100/1000T RJ45 Port:
1000 LNK/ACT (Green)
10/100 LNK/ACT (Orange)
Per SFP Interface:
1000 LNK/ACT (Green)
100 LNK/ACT (Orange)
|
| Dimensiuni (L x Î x H) |
72 x 107 x 152 mm |
| Greutate |
1043g |
| Cerinte de putere |
12V to 48V DC
24V AC
|
| Consumul de energie |
8 watts / 27BTU (System on)
17 watts / 57BTU (Full loading)
|
| Funcțiile stratului 2 |
| Interfețe de management de bază |
Web browser, Remote Telnet, SNMPv1, v2c, local console |
| Interfață de administrare sigură |
SSH, SSL, SNMPv3 |
| Configurația portului |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Power saving mode control
|
| Starea portului |
Display each port’s speed duplex mode, link status, Flow control status. Auto negotiation status, trunk status. |
| Port Mirroring |
TX / RX / Both
Many to 1 monitor
|
| VLAN |
802.1Q tagged-based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
|
| Agregarea legăturii |
IEEE 802.3ad LACP / Static Trunk
Support 10 groups of 8-Port trunk support
|
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
- Port Number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP Packet
|
| IGMP Snooping |
IGMP (v1/v2/v3) Snooping, up to 255 multicast Groups
IGMP Querier mode support
|
| MLD Snooping |
MLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode support
|
| Lista de control al accesului |
IP-Based ACL / MAC-based ACL
Up to 256 entries
|
| Bandwidth Control |
Per port bandwidth control
■ Ingress: 500Kbps~1000Mbps
■ Egress: 500Kbps~1000Mbps
|
| SNMP MIB |
RFC-1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
|
| Funcțiile stratului 3 |
| Interfețe IP |
Max. 8 VLAN interfaces |
| Tabel de rutare |
Max. 32 routing entries |
| Protocoale de rutare |
IPv4 software static routing
IPv6 software static routing
|
| Conformitatea standardelor |
| Reglementarea conformității |
FCC Part 15 Class A, CE |
| Testul de stabilitate |
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
|
| Respectarea standardelor |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX / 100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000Base-T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 1588v2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
|
| Mediu inconjurator |
| De operare |
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
| Depozitare |
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
