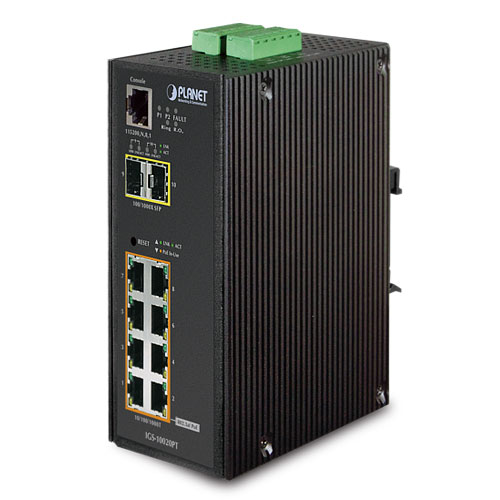

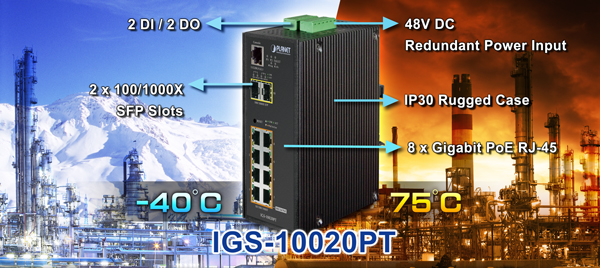

Environmentally Hardened Design
The Industrial 8-Port Gigabit 802.3af PoE Switch, IGS-10020PT is equipped with rugged IP30 metal case for stable operation in heavy Industrial demanding environments. With IP30 industrial case protection, the IGS-10020PT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate in wide temperature range from -40 to 75 degrees C, the IGS-10020PT can be placed in almost any difficult environment. The IGS-10020PT also allows either DIN rail or wall mounting for efficient use of cabinet space. | | | | | | Redundant Ring, Fast Recovery for Surveillance System
The IGS-10020PT supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced Redundant Ring technology, Spanning Tree Protocol (802.1w RSTP), and redundant power supply system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. The IGS-10020PT also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network was interrupted accidentally, the fault recovery times could be less than 50ms to quickly bring the network back to normal operation. | | | | | | Built-in Unique PoE Functions for Powered Devices Management
As a managed PoE Switch for surveillance, wireless and VoIP network, the IGS-10020PT features three special PoE Management functions:
■ PD ALIVE Check
■ Schedule Power Recycle
■ SMTP/SNMP Trap Event Alert
■ PoE Schedule

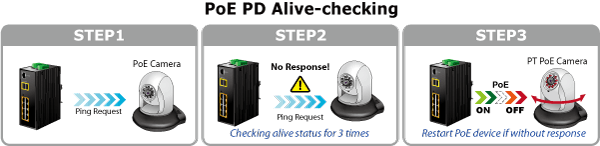

Intelligent Alive Check for Powered Device
The IGS-10020PT can be configured to monitor connected PD (Powered Device) status in real-time via ping action. Once the PD stops working and responding, the IGS-10020PT will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. | | | | | | PoE Schedule for Energy Saving

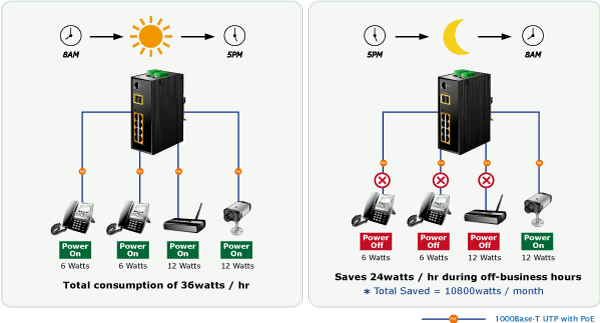

Under the trend of energy saving worldwide and contributing to environmental protection, the IGS-10020PT can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMB or Enterprise save power and money. | | | | | | Digital Input and Digital Output for external Alarm

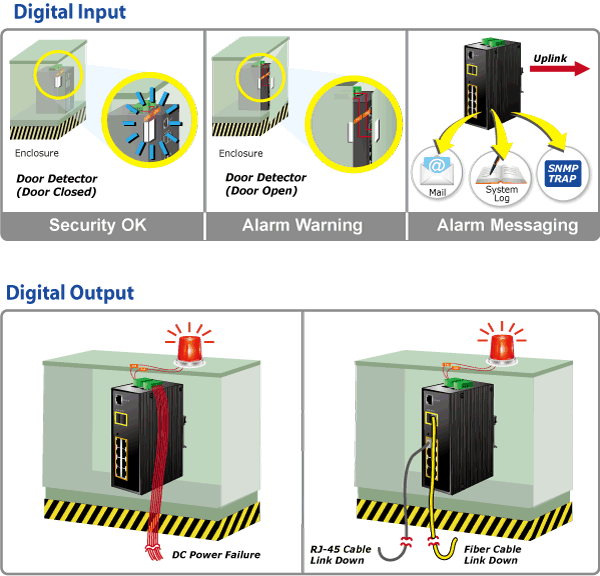

The IGS-10020PT supports Digital Input, and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect, log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-10020PT port is link down, link up or power failure. | | | | | | Robust Layer 2 Features
The IGS-10020PT can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, rapid spanning tree protocol, layer 2 to layer 4 QoS, bandwidth control and IGMP/MLD snooping. The IGS-10020PT provides 802.1Q tagged VLAN and the VLAN groups allowed will be maximally up to 255. The IGS-10020PT not only allows the operation of a high-speed trunk combining multiple ports, but also supports connection fail-over.
Efficient Management
For efficient management, the IGS-10020PT managed switch is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, the IGS-10020PT offers an easy-to-use, platform independent management and configuration facility. The IGS-10020PT supports SNMP and it can be managed via any based on standard of SNMP v1 and v2 management software. For text-based management mode, the IGS-10020PT can be accessed via Telnet and the console port. Moreover, the IGS-10020PT offers remote secure management by supporting SSH, SSL and SNMPv3 connection which can be encrypted the packet content at each session.
Powerful Security
The IGS-10020PT offers comprehensive layer 2 to layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The IGS-10020PT also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly secured corporate networks with considerably less time and effort than before.
Flexibility and Extension Solution
The two mini-GBIC slots built in the IGS-10020PT supports dual speed that 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. Now the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (Multi-Mode fiber) up to above 10/20/30/40/50/70/120 kilometers (Single-Mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

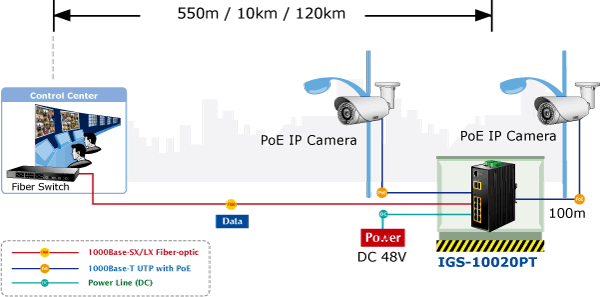

Perfect Integration Solution for Outdoor IP PoE Camera and NVR System
The IGS-10020PT provides 8 10/100/1000Mbps 802.3af PoE ports and can offer sufficient PoE power for 8 PoE IP cameras at the same time. In addition, with the 2-Port 100/1000Base-X SFP interfaces, the IGS-10020PT can connect to core fiber switch and send video stream to NVR and monitor center. Through the high performance switch architecture, the IGS-10020PT facilitates the recorded video files from the 8 PoE IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored both in the local LAN and the remote site via Internet. The IGS-10020PT undoubtedly brings an ideal secure surveillance system with lower total cost. | | | | | |

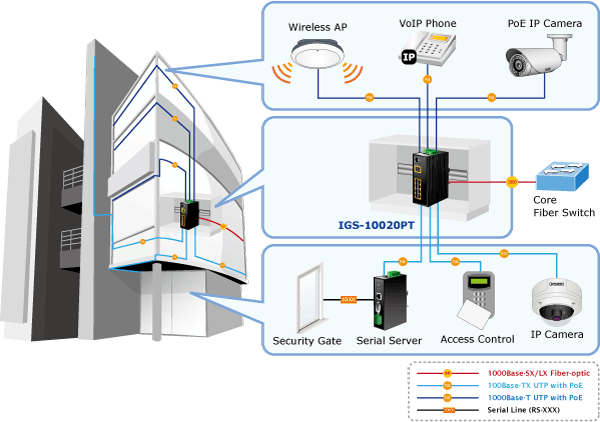

Industrial Area Department / Workgroup PoE Switch
Providing up to 8 PoE, in-line power interface, the IGS-10020PT can easily build a power central-controlled IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 8 PoE IP cameras or Wireless Access Points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-10020PT makes the installation of IP cameras or Wireless AP easier and more efficient.

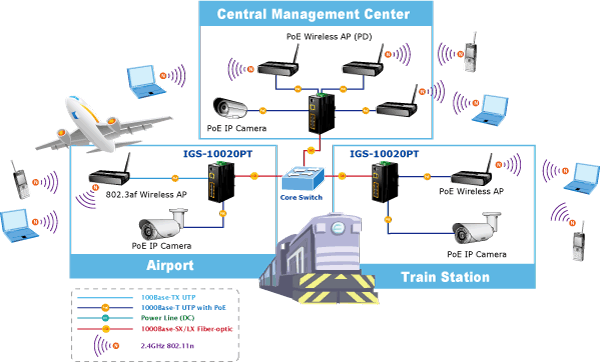

| | | | | | Transportation – Wireless and IP Surveillance
In modern times, Internet service is mostly demanded during travel times, either for business or for leisure. Besides the wired Internet network, the wireless LAN would be more efficient for the transportation station to provide high-speed and wide area Internet services for travelers. With the PoE wireless LAN APs connected to the IGS-10020PT that provides long distance fiber capability, people can experience the wireless LAN roaming service within the Wi-Fi coverage even when the transportation itself like train, bus or ship moving on the way. By adopting PoE Wireless LAN structure, the transportation authority gains benefit from costing less while providing better Internet services in wider areas for the travelers. On the other hand, the PoE IP Surveillance system deployed helps watch the transportation security and PoE IP Telephony system improves the voice communicating in the station with lower cost. | | | | | |
Physical Port- 8-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 with IEEE 802.3af PoE Injector
- 2 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detection
- One RJ-45 console interface for basic management and setup
Power over Ethernet- Complies with IEEE 802.3af Power over Ethernet End-Span PSE
- Up to 8 IEEE 802.3af devices powered
- Supports PoE Power up to 15.4 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- PoE Management
- - Total PoE power budget control
- - Per port PoE function enable/disable
- - PoE Admin-mode control
- - PoE Port power feeding priority
- - Per PoE port power limit
- - PD classification detection
- - Temperature Threshold Control
- - PoE Usage Threshold Control
- - PD Alive Check
- - PoE Schedule
- - PD Power Recycling Schedule

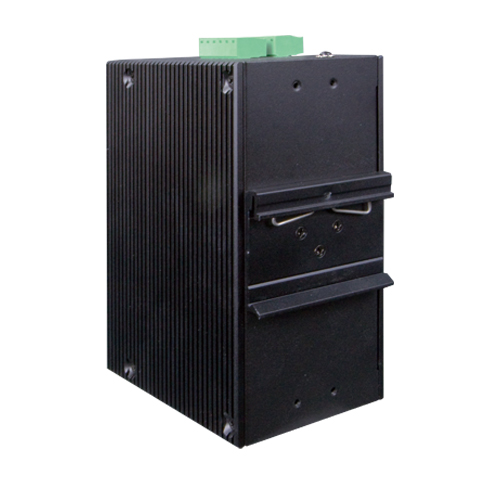

Industrial Case / Installation- IP30 Aluminum metal case protection

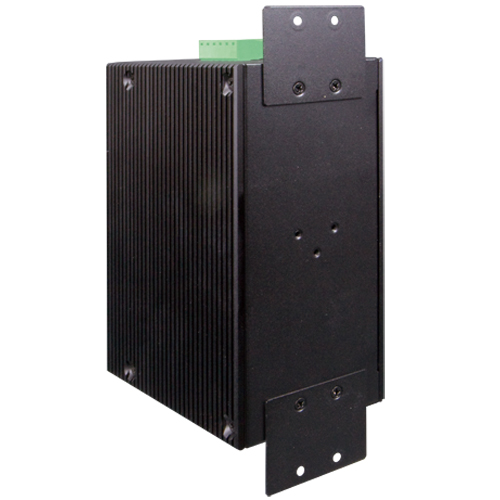

- DIN Rail and Wall Mount Design
- 48V DC, redundant power with polarity reverse protect function
- Supports EFT protection 6000 VDC for power line
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Digital Input / Digital Output- 2 Digital Input (DI)
- 2 Digital Output (DO)
- Integrate sensors into auto alarm system
- Transfer alarm to IP network via SNMP trap
Layer 2 Features- Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
- High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Storm Control support
- - Broadcast / Multicast / Unicast
- Supports VLAN
- - IEEE 802.1Q Tagged VLAN
- - Up to 255 VLANs groups, out of 4094 VLAN IDs
- - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- - Private VLAN Edge (PVE)
- - Protocol-based VLAN
- - MAC-based VLAN
- - Voice VLAN
- Supports Spanning Tree Protocol
- - STP, IEEE 802.1D Spanning Tree Protocol
- - RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
- - MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
- - BPDU Guard
- Supports Link Aggregation
- - 802.3ad Link Aggregation Control Protocol (LACP)
- - Cisco ether-channel (Static Trunk)
- - Maximum 5 trunk groups, up to 8 ports per trunk group
- - Up to 16Gbps bandwidth (Duplex Mode)
- Provides Port Mirror (1-to-1)
- Port Mirroring to monitor the incoming or outgoing traffic on a particular port
- Loop protection to avoid broadcast loops

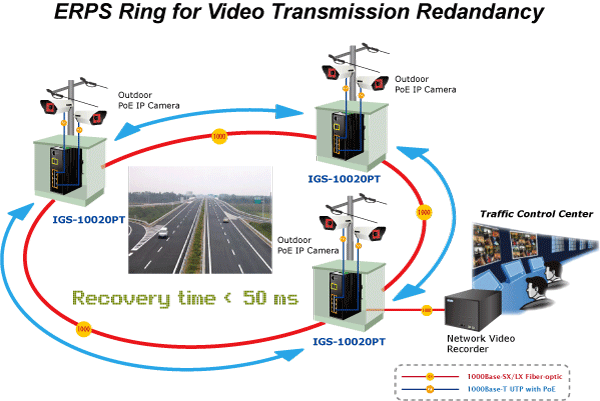

- Supports ERPS (Ethernet Ring Protection Switching)
Quality of Service- Ingress Shaper and Egress Rate Limit per port bandwidth control
- 8 priority queues on all switch ports
- Traffic classification
- - IEEE 802.1p CoS
- - IP TOS / DSCP / IP Precedence
- - IP TCP/UDP port number
- - Typical network application
- Strict priority and Weighted Round Robin (WRR) CoS policies
- Supports QoS and In/Out bandwidth control on each port
- Traffic-policing policies on the switch port
- DSCP remarking
Multicast- Supports IGMP Snooping v1, v2 and v3
- Supports MLD Snooping v1 and v2
- Querier mode support
- IGMP Snooping port filtering
- MLD Snooping port filtering
- MVR (Multicast VLAN Registration)
Security- IEEE 802.1x Port-based / MAC-based network access authentication
- Built-in RADIUS client to co-operate with the RADIUS servers
- TACACS+ login users access authentication
- RADIUS / TACACS+ users access authentication
- IP-based Access Control List (ACL)
- MAC-based Access Control List
- Source MAC / IP address binding
- DHCP Snooping to filter untrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- IP address access management to prevent unauthorized intruder
Management- Switch Management Interfaces
- - Console / Telnet Command Line Interface
- - Web switch management
- - SNMP v1 and v2c switch management
- - SSH / SSL and SNMP v3 secure access
- Four RMON groups (history, statistics, alarms, and events)
- IPv6 IP Address / NTP / DNS management
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- Firmware upload / download via HTTP / TFTP
- DHCP Relay
- DHCP Option 82
- User Privilege levels control
- NTP (Network Time Protocol)
- Link Layer Discovery Protocol (LLDP) Protocol
- SFP-DDM (Digital Diagnostic Monitor)
- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
- Reset button for system reboot or reset to factory default
- PLANET Smart Discovery Utility for deploy management
| | |
| Hardware Specification |
| Copper Ports |
8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots |
2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100Base-FX SFP |
| Console |
1 x RJ-45-to-RS-232 serial port (115200, 8, N, 1) |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
20Gbps / non-blocking |
| Throughput (packet per second) |
14.8Mpps@ 64Bytes packet |
| Address Table |
8K entries, automatic source address learning and ageing |
| Share Data Buffer |
4Mbits |
| Flow Control |
IEEE 802.3x Pause Frame for Full-Duplex
Back pressure for Half-Duplex |
| Jumbo Frame |
9Kbytes |
| Reset Button |
< 5 sec: System reboot
> 10 sec: Factory Default |
| ESD Protection |
6KV DC |
| EFT Protection |
6KV DC |
| Enclosure |
IP30 Aluminum Metal Case |
| Installation |
DIN Rail Kit and Wall Mount Kit |
| Connector |
Removable 6-pin terminal block for power input
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

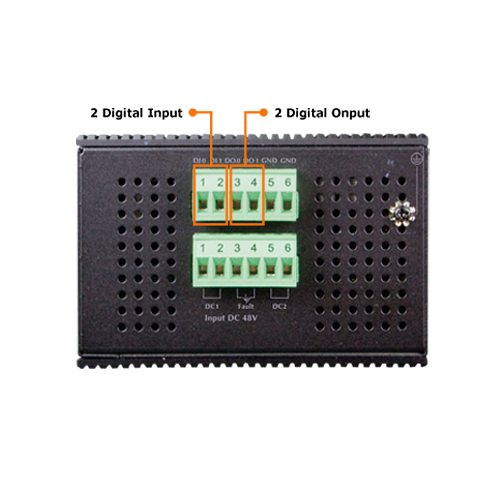

Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2; Pin 3/4 for DO 1 & 2; Pin 5/6 for GND |
| Alarm |
One relay output for power fail. Alarm Relay current carry ability: 1A @ DC 24V |
| DI/DO |
2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.
2 Digital Output (DO): Open collector to 24VDC, 100mA max.
|
| LED Indicator |
System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm (Green)
Ring (Green)
Ring Owner (Green)
Per 10/100/1000T RJ-45 Ports:
PoE In-Use (Orange)
LNK/ACT (Green)
Per SFP Interface:
1000 (Orange)
LNK/ACT (Green)
|
| Dimensions (W x D x H) |
152 x 107x 72 mm |
| Weight |
1684g |
| Power Requirements |
DC 48V |
| Power Consumption |
31.9 watts / 108.78BTU (Full loading without PoE function)
161.9 watts / 522.08BTU (Full loading with PoE function) |
| Power Over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type |
End-Span |
| PoE Power Output |
Per Port 48V DC, 350mA . Max. 15.4 watts |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Budget |
130W maximum (depends on power input) |
| Max. number of Class 2 PD |
8 |
| Max. number of Class 3 PD |
8 |
| Layer 2 Function |
| Basic Management Interfaces |
Console, Telnet, Web Browser, SNMP v1, v2c |
| Secure Management Interfaces |
SSH, SSL, SNMP v3 |
| Port Configuration |
Port disable/enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Power saving mode control |
| Port Status |
Display each port’s speed duplex mode, link status, Flow control status,
Auto negotiation status, trunk status |
| Port Mirroring |
TX / RX / Both
1 to 1 monitor |
| VLAN |
802.1Q Tagged Based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-Based VLAN
Protocol-Based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
|
| Link Aggregation |
IEEE 802.3ad LACP / Static Trunk
Supports 5 groups of 8-Port trunk support |
| QoS |
Traffic classification based, Strict priority and WRR
8-Level priority for switching
- Port Number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP Packet |
| IGMP Snooping |
IGMP (v1/v2/V3) Snooping, up to 255 multicast Groups
IGMP Querier mode support |
| MLD Snooping |
MLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode support |
| Access Control List |
IP-based ACL / MAC-based ACL
Up to 123 entries |
| Bandwidth Control |
Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
|
| SNMP MIBs |
RFC 1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB |
| Standards Conformance |
| Regulation Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration) |
| Standards Compliance |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning tree protocol
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1s Multiple spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2 |
| Environment |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (Non-condensing) |
Quick Guide
| Date |
Version |
Description |
Download |
| 2013-05-10 |
1.1 |
Initial release. |
 | |
| Photo |
Model |
Description |
 |
MFB-Series Transceiver |
100Base-FX SFP Transceiver |
 |
MGB-Series Transceiver |
1000Base-SX/LX SFP Transceiver |
 |
POE-162S |
IEEE 802.3at Gigabit High Power over Ethernet Splitter |
 |
POE-E101 |
IEEE 802.3af Power over Ethernet Extender |
 |
POE-E201 |
IEEE 802.3at Power over Gigabit Ethernet Extender |
|
