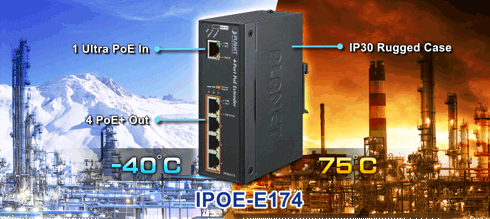

| Hardware Specifications |
| Network Connector |
PoE In Port
1 x 10/100/1000BASE-T Ethernet with ultra PoE “Data + DC” in, auto
MDI/MDI-X, auto-negotiation RJ45 connector
PoE Out Port
4 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE “Data + DC”
out, auto MDI/MDI-X, auto-negotiation RJ45 connector
|
| Switch Architecture |
Store-and-Forward switch architecture |
| MAC Address Table |
8K MAC address table with auto learning function |
| Data Buffer |
1Mbit |
| Switch Fabric |
10Gbps |
| Switch Throughput |
7.44Mpps @ 64Bytes |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
|
| Jumbo Frame |
9Kbytes |
| ESD Protection |
6KV DC |
| EFT Protection |
6KV DC |
| Enclosure |
IP30 metal case |
| Installation |
DIN rail kit and wall-mount ear |

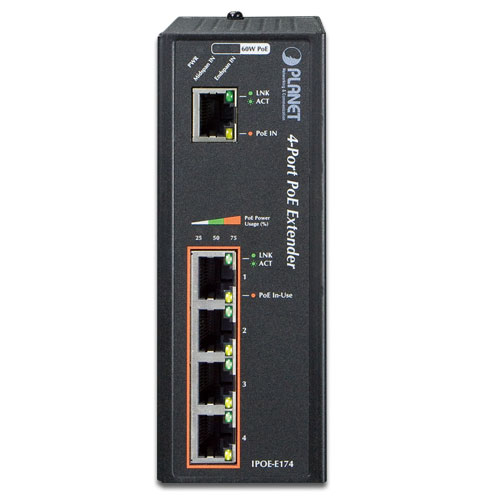

| LED Display |
System: PWR (Green)
Power Input: Midspan in (Green)
Power Input: Endspan in (Green)

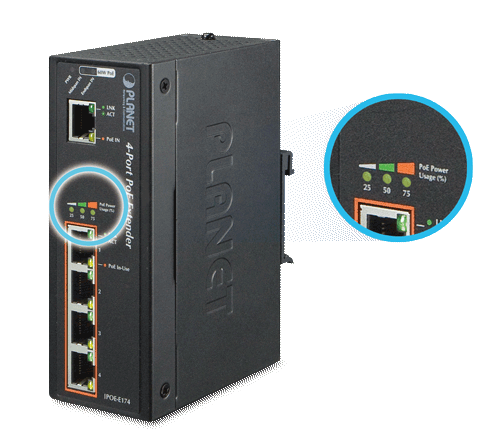

PoE Power Usage (%): 25 (Green)
PoE Power Usage (%): 50 (Green)
PoE Power Usage (%): 75 (Green)
PoE Input Port: LNK/ACT (Green)
PoE Input Port: PoE in (Orange)
Per PoE Output Port: LNK/ACT (Green)
Per PoE Output Port: PoE-in-Use (Orange)
|
| Cable |
Twisted-pair cable :
■ 10BASE-T: 2-pair UTP Cat. 3, 4, 5 up to 100 meters
■ 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
■ 1000BASE-T: 4-pair UTP Cat. 5e, 6 up to 100 meters
|
| Dimensions (W x D x H) |
56 x 87.8 x 135 mm |
| Weignt |
715g |
| Power Consumption |
60 watts / 204.6BTU (Full loading with PoE function) |

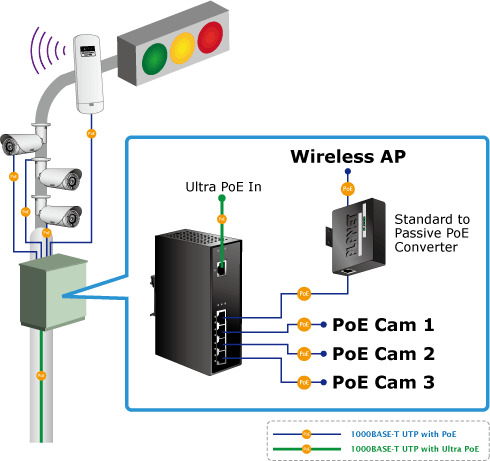

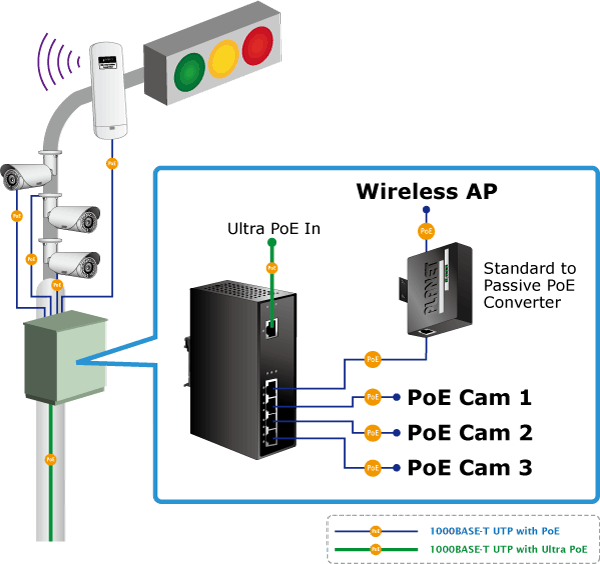

| Power over Ethernet |
| PoE Standard |
PoE In Port
IEEE 802.3at High Power over Ethernet end-span / mid-span class 4 PD
Per PoE Out Port
IEEE 802.3at High Power over Ethernet end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE
|
| PoE Power |
PoE In Port
50~57V DC, max. 60 watts
Per PoE Out Port
44~55V DC, max. 30.8 watts
|
| Power Pin Assignment |
PoE In Port
1/2(+), 3/6(-); 4/5(+), 7/8(-)
Per PoE Out Port
1/2(+), 3/6(-)
|

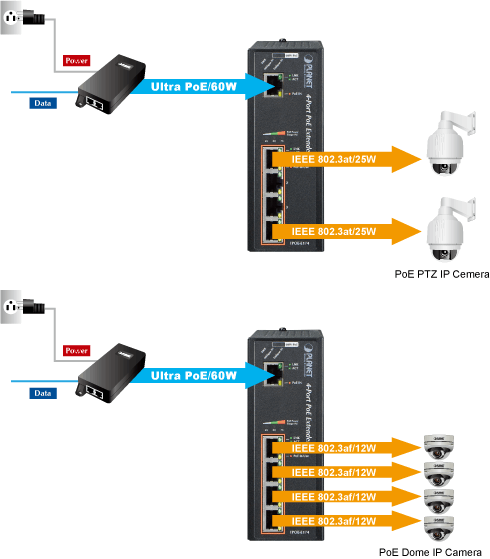

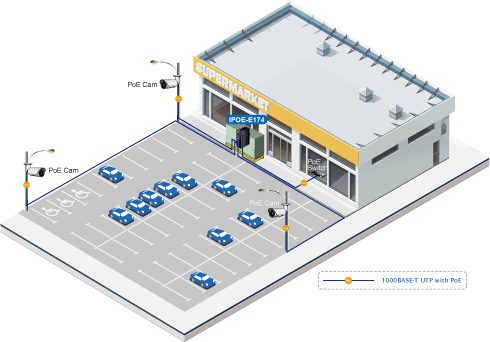

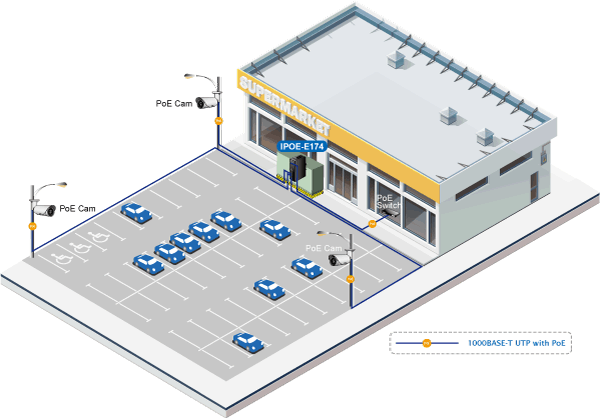

| PoE Power Budget |
50 watts (max.) @ Ultra PoE input
20 watts (max.) @ IEEE 802.3at PoE+ input
No support @ IEEE 802.3af PoE input
|
| Standards Conformance |
| Regulation Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration)
|
| Standards Compliance |
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at High Power over Ethernet
|
| Environment |
| Operating |
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
| Storage |
Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
