IPOE-E172

Industrial 1-Port Ultra PoE to 2-Port 802.3bt/at Gigabit PoE Extender

Overview
Application
Key Features
Specification
Download
Related Products

Ultra PoE Solution for Breaking RJ45 100m Limitation

PLANET IPOE-E172 is an industrial IP63-rated 1-port Ultra PoE to 2-port 802.3bt/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The IPOE-E172 can obtain a maximum of 95-watt PoE power from ultra PoE input port and supplies a maximum of 60-watt PoE power budget for 2 PoE output ports, extending both the Gigabit Ethernet Data and IEEE 802.3bt/802.3at Power over Ethernet over the UTP cable. The IPOE-E172 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

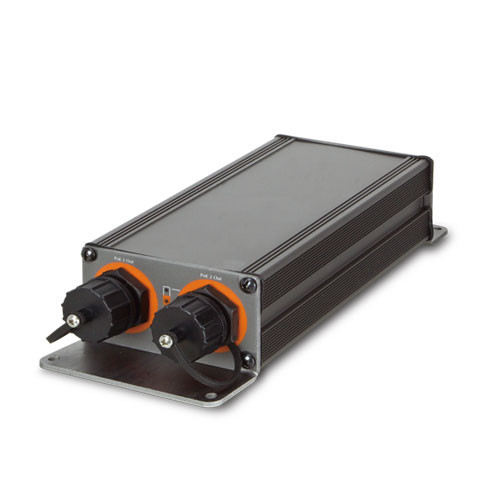

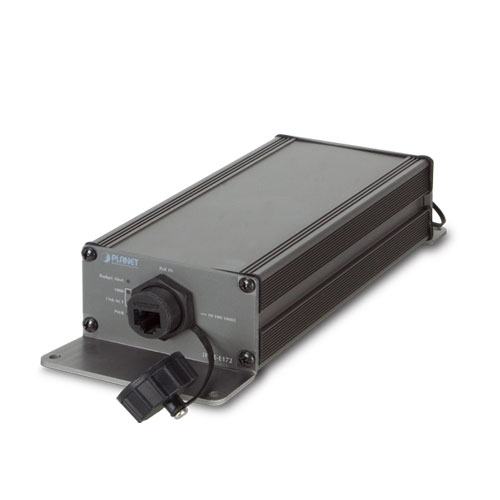

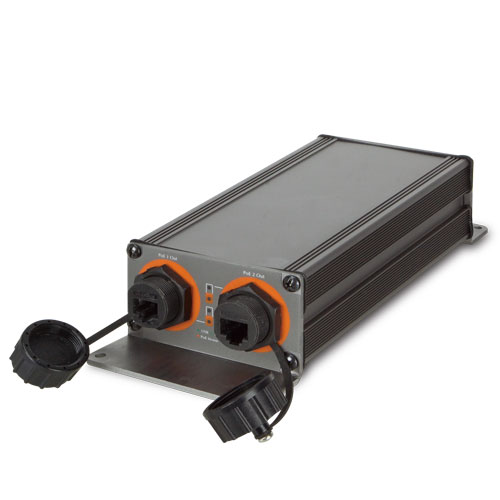

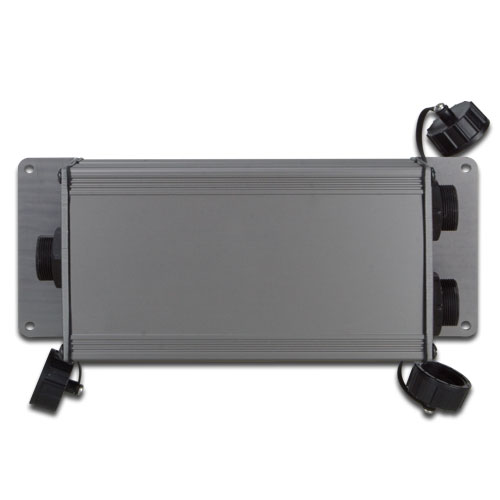

Weather-proof RJ45 Ethernet Connector and Shielded Plug

The IPOE-E172 is ideal for installing an extended range of outdoor PoE devices such as outdoor PoE wireless access points, outdoor PoE IP cameras, outdoor PoE IP intercoms and much more. The IPOE-E172 is equipped with 3-port 10/100/1000BASE-T auto-negotiation weather-proof RJ45 connectors and 3 shielded RJ45 plugs for direct attach applications. These shielded RJ45 plugs can make the general UTP cable weather-proof. When connected to the weather-proof RJ45 connector, it provides tight and strong connection, and ensures it comes with the industrial protection rating of IP63 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.

Environmentally Hardened Design

With industrial-level IP63-rated aluminum case, the IPOE-E172 provides a high level of immunity against electromagnetic interference, and is able to protect itself from dust and water ingress and to operate under the temperature range from -40 to 75 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

Intelligent PoE Power Budget Alert

The IPOE-E172 helps users to monitor the current status of PoE power usage easily via its advanced LED indication, which is called “Budget Alert” on the front panel of the IPOE-E172. When the PoE output power is reaches 50 watts, this Budget Alert LED will light up.

Hardware Specifications
Network Connector	PoE In Port 　1 x 10/100/1000BASE-T Ethernet with 802.3bt/at PoE “Data + Power” in, auto MDI/MDI-X, auto-negotiation RJ45 connector PoE Out Port 　2 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at/bt PoE “Data + Power” out, auto MDI/MDI-X, auto-negotiation RJ45 connector
Switch Architecture	Store-and-Forward switch architecture
MAC Address Table	2K MAC address table with auto learning function
Data Buffer	1Mbit
Switch Fabric	6Gbps
Switch Throughput	4.46Mpps @ 64 bytes
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
Jumbo Frame	9KB
ESD Protection	2KV DC
Enclosure	IP63 aluminum case
Installation	Wall-mount kit
LED Display	System: PWR (Green) Budget Alert (Red) PoE Input Port: LNK/ACT (Green) PoE Input Port: 1000 (Green) Per PoE Output Port: LNK/ACT (Green) Per PoE Output Port: PoE-in-Use (Orange)
Cable	Twisted-pair cable : 10BASE-T: 2-pair UTP Cat3, 4, 5 up to 100 meters 100BASE-TX: 2-pair UTP Cat5, 5e up to 100 meters 1000BASE-T: 4-pair UTP Cat5e, 6 up to 100 meters
Dimensions (W x D x H)	199.6 x 81 x 40 mm
Weight	373g
Power Consumption	60 watts/204BTU (Full loading with PoE function)
Power over Ethernet
PoE Standard	PoE In Port IEEE 802.3bt/at Power over Ethernet end-span/mid-span PD class 4 PD Per PoE Out Port IEEE 802.3bt 4-pair Power over Ethernet end-span + mid-span PSE IEEE 802.3at Power over Ethernet Plus end-span + mid-span PSE IEEE 802.3af Power over Ethernet end-span + mid-span PSE
PoE Power	PoE In Port 44~57V DC, max. 95 watts Per PoE Out Port 44~55V DC, max. 60 watts
Power Pin Assignment	PoE In Port 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) Per PoE Out Port 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet
Environment
Operating	Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Accessory
Standard Accessories	User’s Manual x 1 Waterproof RJ45 Connector x 3 Wall-mounted Kit x 1
