ICS-2100

Industrial RS-232/ RS-422/ RS-485 over Ethernet Media Converter

Overview
Application
Key Features
Specification
Download
Related Products

Cost Effective Solution for RS-232 / RS-422 / RS-485 to Industrial Ethernet Application

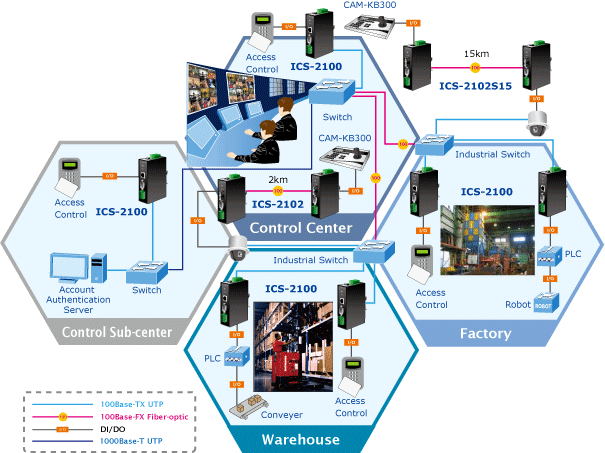

PLANET ICS-210x series Smart Media Converter / Device Server offer conversion of serial RS-232 / RS-422 / RS-485 communication to Industrial Fast Ethernet networking. There are RJ-45 and SC connectors with single-mode or multi-mode media available for your network needs. It allows serial and Ethernet communications to connect efficiently and inexpensively. The ICS-210x is a time-saving and cost-effective solution for user and SI to quickly transform its serial equipments to the Ethernet network with no need of replacing the existing Serial equipment and software system.

Extend Distance

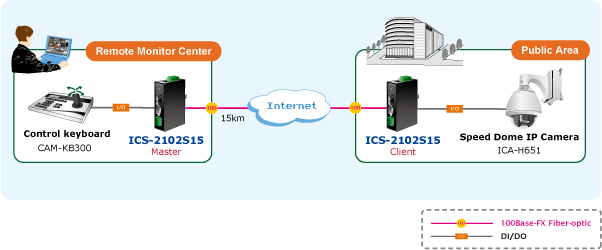

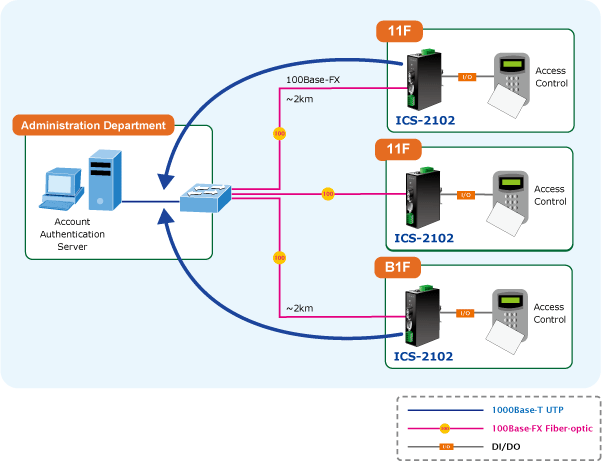

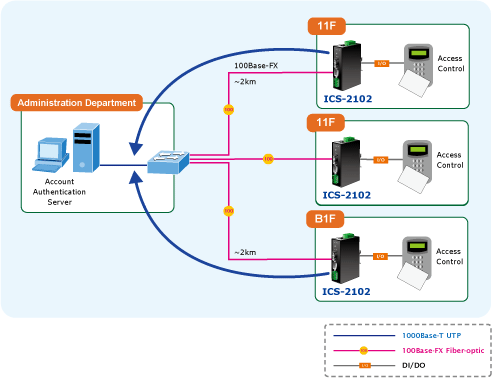

The ICS-210x series media converter extends the deployment distance of serial equipments and hosts. The fiber-optic wires for different distance applications are available for choice to fit with your needs. The ICS-210x perfectly satisfy the diverse demands in various industrial networks while providing reliable and efficient network solutions with budgets of installation.

Remote Manageable
The ICS-210x makes the connected serial equipments become the IP-based facilities and be able to connect to a TCP/IP networking immediately. It also provides Web Management Interface for efficient network management. The powerful Web-Smart Media Converter supports Application mode and Serial operation mode for alarm or IP address connection, which helps reduce a network administrator’s time in detecting and locating network problems without requiring visual inspection of cabling and equipment. Multiple connection options are available for large networking environment as well.

Stable Performance under Difficult Environments
The ICS-210x provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The feature of operating temperature range from -10 to 60 Degree C allows the ICS-210x to be placed in almost any difficult environment.

The ICS-210x equip with compact, IP-30 standard metal case that allows either DIN rail or wall mounting for efficient use of cabinet space. The ICS-210x also provides an integrated power supply source with wide range of voltages (12 to 48V DC) ideally suitable for worldwide operation with high availability applications requiring dual or backup power inputs.

Ordering Information
ICS-2100	Industrial RS-232/RS-422/RS-485 over 10/100Base-TX Media Converter (Copper, RJ-45)
ICS-2102	Industrial RS-232/RS-422/RS-485 over 100Base-FX Media Converter (Fiber, MM/2km)
ICS-2102S15	Industrial RS-232/RS-422/RS-485 over 100Base-FX Media Converter (Fiber, SM/15km)
