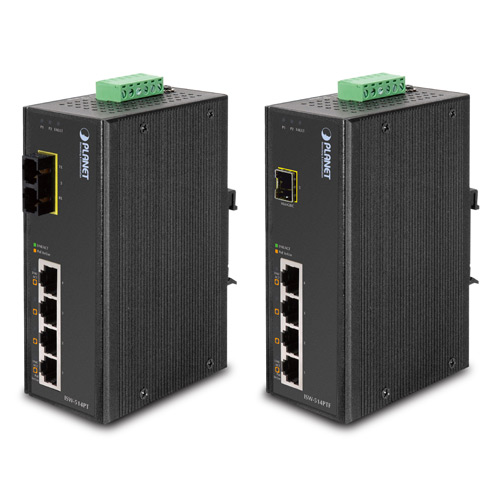

ISW-514PT / ISW-514PT15 / ISW-514PTF

4-Port 10/100Mbps with PoE + 1-Port 100FX Industrial Ethernet Switch – Wide Temperature

Overview
Application
Key Features
Specification
Download
Related Products

The PLANET ISW-514PT PoE Industrial Ethernet Switch is designed to transmit power and data over single Ethernet cable to remote PoE capable devices and operates reliably in heavy industrial demanding environments. The ISW-514PT series provides four 10/100Mbps copper ports supporting IEEE 802.3af Power over Ethernet injector and one 100Base-FX fiber optic interface delivered in an IP-30 rugged strong case. Supporting up to 15.4 Watts power per port for any remote IEEE 802.3af powered device (PD) such as PoE IP cameras and PoE wireless LAN access point, the ISW-514PT series is an ideal solution to deploy surveillance system and wireless service in climatically demanding wide temperature range (-40 to 75 Degree C) environments. The 100Base-FX fiber optic uplink port provides long distance, high speed and stable data transmission to remote core network.

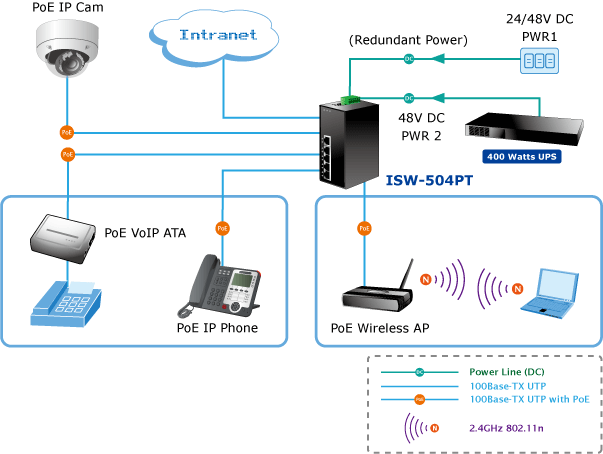

IEEE 802.3af Power over Ethernet PSE Industrial Switch

PoE feature is more often supported in the industrial Ethernet devices for efficient operation in harsh environments. The ISW-514PT series in-line power follows standard IEEE 802.3af and allows to give power to 4 PoE compliant devices at the distance up to 100 meters through the 4-pair Cat 5 / 5e UTP wire. With Data and Power over Ethernet from one unit, the ISW-514PT series shall reduce cables deployment and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords.Furthermore,there is only 24V DC input in some industrial environments, the ISW-514PT series supports 24V DC or 48V DC dual voltages input and able to provide more wide range of industrial IEEE 802.3af PoE applications.

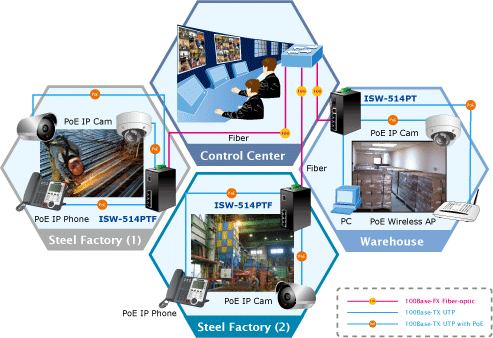

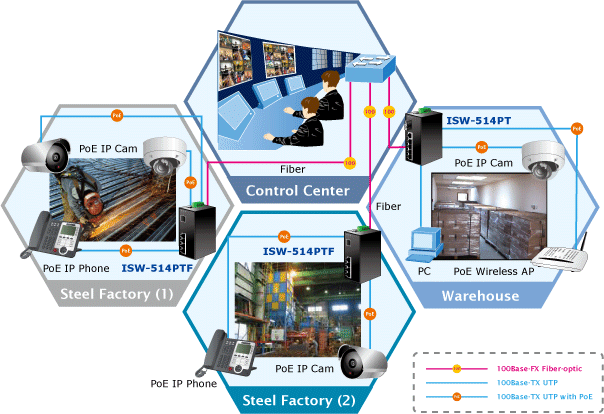

Fiber Optic Link Capability for Flexible Distance Extension

The ISW-514PT series equips one 100Base-FX port that provides more flexibility for Transportation, Manufacturing, Security and Surveillance on distance extension without any limitation. The ISW-514PT series offers high performance switch architecture as below:
　• ISW-514PT：equips with 4 10/100Mbps UTP ports and 1 100FX (SC interface within 2km)
　• ISW-514PT15：equips with 4 10/100Mbps UTP ports and 1 100FX (SC interface within 15km)
　• ISW-514PTF：equips with 4 10/100Mbps UTP ports and 1 100FX (LC interface within optional of
　　　　　　　　 Single / Multi-Mode SFP module)
Fiber optic uplink capability makes the ISW-514PT series suitable model for long distance network deployment. Users can choose the suitable model for network deployment by requirement.

Wide Temperature conquers installation in harsh environments

The ISW-514PT series provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under wide temperature range from -40 to 75 Degree C, the ISW-514PT series can be placed in almost any difficult environment. It also offers dual-redundant, reversible polarity 24V DC or 48V DC power inputs for high availability applications requiring or backup power inputs.

Robust Switch performance

The ISW-514PT series provides non-blocking switch fabric, wire-speed throughput as high as 1Gbps and the 2K MAC Address table. It also performs wire-speed packets transfer without risk of packet loss and the Flow Control function is default enabled to provide fast and reliable data transfer. All of the RJ-45 copper interfaces support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 3, 4, 5, 5e or 6 cable. The standard Auto-MDI / MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Hardware Specification
10/100Base-TX Ports	4
100Base-FX Port	1
Fiber Port Type	ISW-514PT：Multi-Mode ISW-514PT15：Single Mode ISW-514PTF：Vary on SFP
Connector Type	ISW-514PT：SC ISW-514PT15：SC ISW-514PTF：LC
Maximum Distance	ISW-514PT：2km ISW-514PT15：15km ISW-514PTF：Vary on SFP
Optical Frequency	ISW-514PT：1300nm ISW-514PT15：1310nm ISW-514PTF：Vary on SFP
Launch Power (dBm)	ISW-514PT：Max.: -14　　Min.: -20 ISW-514PT15：Max.: 0　　Min.: -20 ISW-514PTF：Vary on SFP
Receive Sensitivity (dBm)	ISW-514PT：-32 ISW-514PT15：-32 ISW-514PTF：Vary on SFP
IEEE 802.3af PoE ports	4
Dimension (D x W x H)	135 x 87.8 x 56 mm
Weight	842g
Power LED	Power1, Power2 and Fault Port 1~4: PoE in-use, LNK/ACT Port 5: LNK/ACT
Power Requirement	24 or 48 V DC, Redundant power with polarity reverse protection function
Installation	DIN Rail kit and Wall Mount ear
Alarm	Provides one relay output for power fail Alarm Relay current carry ability: 1A @ DC 24V
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 48V DC, 350mA . Max. 15.4 Watts
Power Pin Assignment	1/2(+), 3/6(-)
Switch Specification
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Flow Control	Back Pressure for Half Duplex IEEE 802.3x Pause Frame for Full Duplex
Switch fabric	1Gbps
Throughput (packet per second)	0.74Mpps
Network cables	10/100Base-TX: Cat. 3, 4, 5, 5e and 6 UTP cable (100meters max.) EIA/TIA-568 100-ohm STP (100meters, max.)
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3af Power over Ethernet
Regulation Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
Environment
Temperature	Operating: -40~75 Degree C Storage: -40~85 Degree C
Humidity	Operating: 5~90%, Storage: 5~90% (Non-condensing)

Ordering Information
ISW-514PT	4-Port 10/100Mbps with PoE +1-Port 100FX(MM, SC) Industrial Ethernet Switch - 2km (-40~75 Degree C)
ISW-514PT15	4-Port 10/100Mbps with PoE +1-Port 100FX(SM, SC) Industrial Ethernet Switch - 15km (-40~75 Degree C)
ISW-514PTF	4-Port 10/100Mbps with PoE +1-Port 100FX(SFP) Industrial Ethernet Switch - (-40~75 Degree C)
ISW-504PT	5-Port 10/100Mbps with 4-Port PoE Industrial Ethernet Switch (-40~75 Degree C)
ISW-504PS	5-Port 10/100Mbps with 4-PoE Industrial Web Smart Switch (-10~60 Degree C)
ISW-514PS	4-Port 10/100Mbps with PoE +1-Port 100FX(MM, SC) Industrial Web Smart Switch - 2km (-10~60 Degree C)
ISW-514PS15	4-Port 10/100Mbps with PoE +1-Port 100FX(SM, SC) Industrial Web Smart Switch - 15km (-10~60 Degree C)
ISW-514PSF	4-Port 10/100Mbps with PoE +1-Port 100FX(SFP) Industrial Web Smart Switch (-10~60 Degree C)

Accessories
MFB-TFX	SFP-Port 100Base-FX Transceiver (1310nm) -2km (-40~75 Degree C)
MFB-TF20	SFP-Port 100Base-FX Transceiver (1310nm) - 20km (-40~75 Degree C)
