| Hardware Specification |
| Hardware Version |
5.0 |

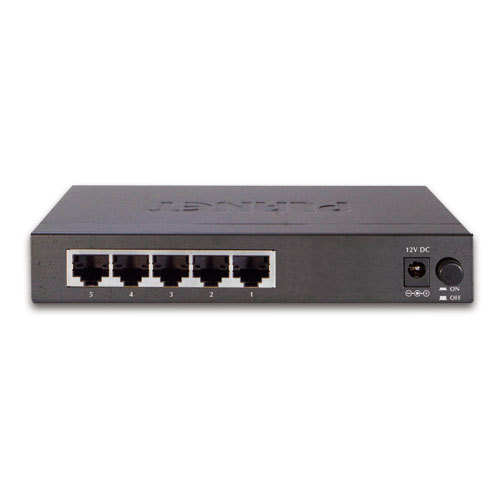

| 10/100/1000Base-T Ports |
5 Auto MDI/MDIX ports |
| Enclosure |
Metal |
| Power on/off button |
1 |
| Dimension (W x D x H) |
155 x 86 x 26 mm |
| Weight (g) |
360 |
| Power Requirement |
External power adapter 12V, 500mA |
| Power Consumption / Dissipation (Full operating) |
4.4 Watts / 15 BTU |
| Switch Specification |
| Switch Processing Scheme |
Store-and-Forward |
| Address Table |
8K entries |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| Switch fabric |
10Gbps |
| Throughput (packet per second) |
7.44Mpps |
| Jumbo packet size |
9K |
| Standards Conformance |
| Standards Compliance |
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full Duplex Flow Control)
|
| Temperature |
Operating: 0~50 Degree C
Storage: -10~70 Degree C
|
| Humidity Operating |
Operating: 5~90%, Storage: 5~90% (Non-condensing) |
| Regulation Compliance |
FCC Part 15 Class A, CE |
| Remark: The specification is for GSD-503 hardware version 5 only. |
