HPOE-1200G

12-Port Gigabit IEEE 802.3at High Power over Ethernet Injector Hub

Overview
Application
Key Features
Specification
Download
Related Products

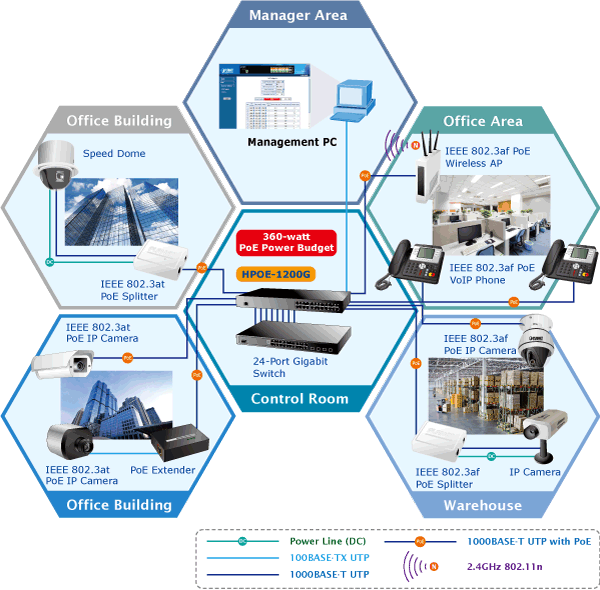

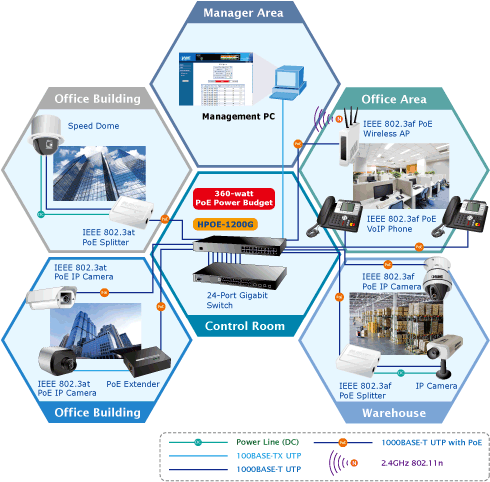

High Power PoE for Public Service PoE Applications

PLANET HPOE-1200G, the next generation 12-Port Gigabit IEEE 802.3at High Power PoE Web Management Injector Hub, features both IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) that combines up to 30-watt power output and data per port over one CAT 5E/6 Ethernet cable. It is designed specifically to satisfy the growing demand for higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by providing double amount of PoE power, more than the conventional 802.3af PoE PSE.

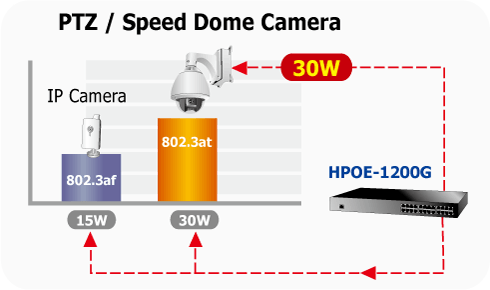

IEEE 802.3at PoE Standard Compliance

Till today, the IEEE 802.3af Power over Ethernet Standard has become popular yet the PoE demand still grows for increasing network-powered applications. With many critical applications increases, the demand for higher power appears. Hence, the IEEE 802.3at High Power over Ethernet standard is defined to allow delivery of maximum up to 30-watt input power to per PoE device. Compliant with IEEE 802.3at, the HPOE-1200G possesses stronger power capability than the existing 802.3af PoE PSE and is an ideal solution to meeting the high power requirements directly via the RJ-45 port interface.

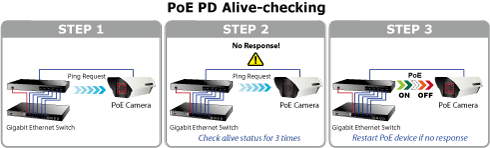

Intelligent Powered Device Alive Check

The HPOE-1200G can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and is without response, the HPOE-1200G will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reduce administrator management burden.

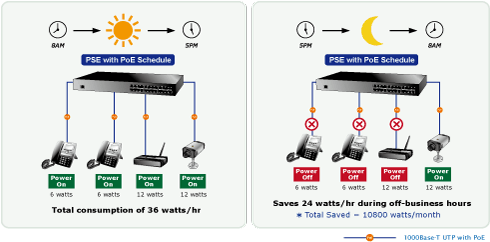

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environment protection on the Earth, the HPOE-1200G can effectively control the power supply besides its capability of giving high watts power. The “PoE Schedule" function provided by the HPOE-1200G helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.

Advanced Power Management

To facilitate power management, the HPOE-1200G comes with such powerful PoE management features as over temperature protection, usage threshold alert and auto power allocation to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and can send alert event logs when power usage reaches the defined threshold. The HPOE-1200G enables centralization of the power supply and optimizes the installation and power management of remote network devices; therefore, it eliminates costs for additional AC wiring and reduces installation time.

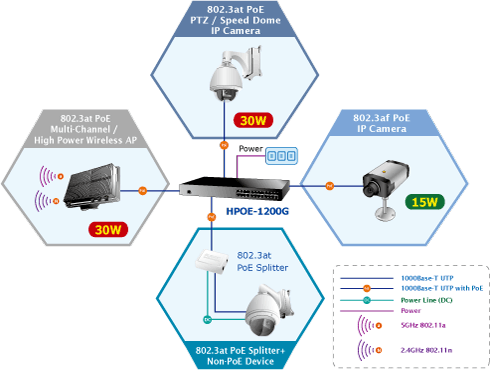

Quick and Easy PoE Network Deployment

The HPOE-1200G complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af and IEEE 802.3at standards. With 12 10/100/1000Base-T Gigabit Ethernet ports, the HPOE-1200G supports 52V DC power for any remote 802.3af / 802.3at powered device (PD). Supporting total PoE power budget of 360 watts, the HPOE-1200G provides sufficient 15.4- / 30.8-watt PoE power to up to 12 remote PD devices.

Hardware

Hardware Version

Interface

“Data” Input Ports: 12 x RJ-45

“Data+Power” Output Ports: 12 x RJ-45

Management Port: 1 x RJ-45; 10/100Base-TX, auto-negotiation, auto-MDI / MDIX

Data Rate

10/100/1000Mbps

LED

System: SYS power x 1 (green)

Management port x 2: 10/100 (green / orange)

Per PoE port: PoE in use x 1 (green)

PoE failure x 1

FAN failure x 1

Network Cable

10Base-T: 4-pair UTP Cat. 5 up to 100m (328ft)

100Base-TX: 4-pair UTP Cat. 5 up to 100m (328ft)

1000Base-T: 4-pair UTP Cat. 5e, 6, up to 100m (328ft)

EIA/TIA- 568 100-ohm STP (100m)

Dimensions (W x D x H)

440 x 300 x 44 mm (1U height)

Weight

4.27kg

Power Requirements

100-240V AC, 50/60 Hz, 6A

Power Consumption

400 watts max.

Cooling

Fan x 2

Power over Ethernet

PoE Power Supply Type

Mid-span

PoE Power Output

Per port DC 52V 30.8 / 15.4 watts

Power Pin Assignment

4/5(-), 7/8(+)

PoE Power Budget

360 watts

Number of 802.3af PD Class 0, 1, 2, 3 can be powered

Number of 802.3at PD Class 1, 2, 3 can be powered

Number of 802.3at PD Class 0, 4 can be powered

Management

Management Interface

Web, PLANET Smart Discovery Lite

PoE Management

Power limit by consumption, classification and total limit

PoE admin mode

Per port power schedule

Per port power enable / disable

Power feeding priority

Over temperature protection

Temperature threshold

PoE power budget usage threshold

Current per port usage and status

Total power consumption

Management Feature

System / management functions setup

Web firmware upgrade

SNMP trap for alarm notification of events

Standards Conformance

Standards Compliance

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3at High Power over Ethernet

IEEE 802.3af Power over Ethernet

RFC 768: UDP

RFC 791: IP

RFC 2068 HTTP

RFC 1157: SNMP v1

RFC 1902: SNMP v2c

RFC 5424: Syslog

Regulation Compliance

FCC Part 15 Class A, CE

Environment

Operating Temperature

0 ~ 50 degrees C

Storage Temperature

-10 ~ 70 degrees C

Humidity

Operating:
	Storage:
