VDR-300NU

300Mbps Dual Band Wireless VDSL2 Router

Overview
Application
Key Features
Specification
Download
Related Products

PLANET VDR-300NU 802.11n Wireless VDSL2 Router is a multi-function home gateway designed to establish a high-speed VDSL2 broadband network for triple play applications. It is backward compatible with ADSL2+ fixed line over existing phone wire. The VDR-300NU is developed with five core networking technologies in one unit: VDSL2 (Very High Speed Digital Subscriber Line 2), ADSL2+, 3G, IEEE 802.11a/b/g/n dual band wireless connectivity and IPv6/IPv4 dual stack. It provides residential and office users with the ideal solution for sharing an ultra high-speed VDSL2 broadband connection.

High Performance Ethernet over VDSL2

Via the latest VDSL2 technology with 30a profile supported, the VDR-300NU offers very high performance access to Internet, up to 100Mbps for both downstream and upstream data transmission. VDSL2 absolutely offers the fastest data transmission speed over the existing copper telephone lines without the need for rewiring. With integrated support for the ITU-T’s new G.993.5 Vectoring technology, the VDR-300NU works in conjunction with vectoring-enabled DSLAMs to remove crosstalk interference and improve maximum line bandwidth across the existing copper infrastructure.

Delivering High-Demand Service Connectivity for ISP / Triple Play Devices

The VDR-300NU provides excellent bandwidth to meet the demand of the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VDR-300NU enables many multi-media services to work on local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.

ADSL2+ Fallback

For those ISPs that still provide ADSL broadband service, the VDR-300NU can support transmission rates up to 24Mbps downstream and 3.5Mbps upstream with ADSL2+ technology. The VDR-300NU supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 2684 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516), and IP over ATM (IPoA, RFC 1483) to establish a connection with ISP and it can be also directly switched over to VDSL2 after the ISP network upgrade.

3G WAN Backup Connections

With interface for 3G USB dongle, the VDR-300NU provides users with a reliable and cost-effective “Always online” solution by featuring 3G / xDSL WAN backup Internet access. The 3G USB capability of the VDR-300NU features activating Internet connection anytime and the redundant WAN interface to ensure the most reliable connection.

Dual Band High-Speed 802.11n Wireless Connectivity

The VDR-300NU applies 2T2R MIMO antenna technology and provides two modes for network applications -- Router and Bridge. With built-in 2.4GHz IEEE 802.11b/g/n or 5GHz 802.11a/n wireless network capability, the VDR-300NU allows any computer and wireless-enabled network device to connect to it without additional cabling. 802.11n wireless capability brings users the data transmission rate as high as 300Mbps. The radio coverage is also doubled to offer high speed wireless connection even in spacious offices or houses.

IPv6/IPv4 Dual Stack Capability

With fully supporting both IPv4 and IPv6 protocols, the VDR-300NU can work with original IPv4 network structure and also support the new IPv6 network structure now and in the future. As more network devices are growing and the need for larger addressing and higher security becomes critical, the VDR-300NU is the best choice for ISPs to build the IPv6 FTTx edge service and for SMBs to connect with the IPv6 network.

Robust TR-069 Remote Management

To reduce the service provider’s manpower needed for on-site maintenance, the VDR-300NU supports TR-069(WAN Management Protocol) standard that allows an Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics to this device remotely.

Secure Wireless Access Control

To secure wireless communication, the VDR-300NU supports most up-to-date encryptions including WEP, WPA-PSK and WPA2-PSK. Moreover, the VDR-300NU supports WPS configuration with PBC/PIN type for users to easily connect to a secured wireless network.

Internet Access Features

Shared Internet Access: All users on the LAN can access the Internet through the VDR-300NU using only one single external IP address. The local (invalid) IP addresses are hidden from external sources. This process is called NAT (Network Address Translation).
Built-in VDSL2 Modem: The VDR-300NU provides VDSL2 modem and supports all common VDSL2 connections.
G. Vectoring: G.993.5 (G.Vector) support for significant reduction of crosstalk levels and improvement of VDSL2 line performance
Multiple WAN Connections: Upon the Internet (WAN port) connection, the VDR-300NU supports ADSL2+, VDSL2, and 3G with USB port.
3G WAN Backup: 3G USB dongle for backup network connectivity.

Advanced Internet Functions

Virtual Servers: This feature allows Internet users to access Internet servers on your LAN. The setup is also quick and easy.
Firewall: The VDR-300NU supports simple firewall with NAT technology.
Universal Plug and Play (UPnP): UPnP allows automatic discovery and configuration of the Broadband Router. UPnP is supported by Windows ME, XP, or later.
DMZ Support: The VDR-300NU can translate public IP addresses into private IP address to allow unlimited 2-way communication with the servers or individual users on the Internet. It provides the most flexible way to run programs smoothly for programs that might be restricted in NAT environment.
RIPv1/v2 Routing: It supports RIPv1/v2 routing protocol for routing capability.
IGMP Snooping: IGMP can be used for one-to-many networking applications such as online streaming video and gaming, and allows more efficient use of resources when supporting these types of applications.
IPsec: IPsec has been developed to implement VPN.

LAN Features

4-Port Switch: The VDR-300NU incorporates a 4-Port 10/100Base-TX switching hub, making it easy to create or extend your LAN.
DHCP Server Support: Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and other devices upon request. The VDR-300NU can act as a DHCP Server for devices on your local LAN.

Wireless Features

Supports IEEE 802.11a/b/g/n Dual Band Wireless Standards: The VDR-300NU supports the selectable 2.4GHz and 5GHz wireless connection. 802.11n standard provides backward compatibility with the 802.11b and 802.11g standard, so 802.11b, 802.11g, and 802.11n can be used simultaneously. IEEE 802.11n wireless technology is capable of up to 300Mbps data rate.
WPS Push Button Control: The VDR-300NU supports WPS (Wi-Fi Protected Setup) for users to easily connect to wireless network without configuring the security.
Advanced Security: supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK(TKIP/AES encryption), and 802.1x.
Wireless MAC Access Control: The Wireless Access Control feature can check the MAC address (hardware address) of wireless stations to ensure that only trusted wireless stations can access your LAN.
Dual-SSID: It allows users to access different networks through a single AP.

Management Features

TR-069 compliant: Support for centralized management node of multiple VDSL2 CPE.
DLNA Media Server: DLNA support to share multimedia content such as video, music and photo in a home network

Hardware Specifications

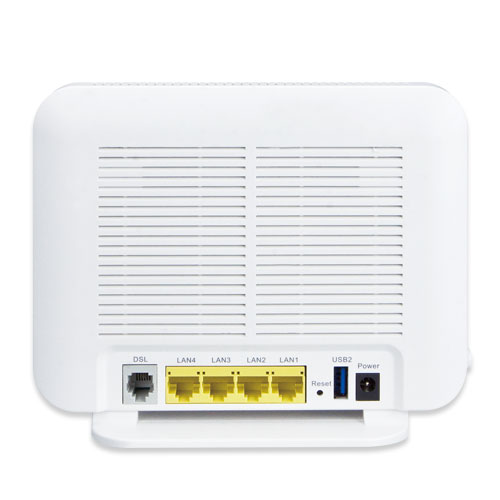

Interfaces	LAN: 4 x 10/100Base-TX, Auto-Negotiation, Auto MDI/MDI-X RJ45 port WAN: 1 x RJ-11 USB: USB 2.0, Type-A, 5V DC/0.5A Output
Antenna	2.4GHz : 2 x 2.5dBi internal antennas 5GHz: 2 x 2dBi internal antennas
Button	1 x Power button 1 x Reset button 1 x WPS button 1 x WLAN button
LED Indicators	PWR, DSL, LAN1-4, WLAN, WPS, Security
Dimensions (W x D x H)	180 x 145 x 54 mm
Weight	306g
Power	12V DC, 2A
Power Consumption	18W
Router Features
Internet Connection Type	‧PPPoE ‧Dynamic IP ‧Static IP
VDSL Features	‧ITU-T G.993.2 VDSL2 ‧Supports 8a,8b,12a,12b,17a,30a profile ‧Supports G.vector ‧Supports ATM and PTM ‧Supports G.INP
ADSL Features	‧ANSI T1.413 i2 ‧1TU G.992.1(G.dmt) Annex A ‧1TU G.992.2(G.lite) ‧1TU G.992.3 ADSL2(G.lite.bis) ‧1TU G.992.5 ADSL2(G.lite.bis+) ‧ITU G.994.1 (G.hs) ‧Annex L (Reach Extended ADSL2) ‧Supports ATM forum UNI3.0, 3.1 and 4.0 permanent virtual circuits (PVCs) ‧Supports CBR, UBR, VBR-rt, VBR-nrt ‧Supports multiple PVCs ‧Supports ITU-T i.610F4/F5 OAM
Bridging Features	‧Self-learning bridge (IEEE 802.1D Transparent Bridging) ‧At least 64 learning MAC addresses ‧Supports IGMP Snooping ‧Supports MLD Snooping
Protocol Features	‧RFC 2684 multiprotocol Encapsulation over ATM Adaptation Layer 5 ‧RFC 1483 multiprotocol Encapsulation over ATM Adaptation Layer 5 ‧RFC 2364 PPP over ATM ALL5 (PPPoA) ‧RFC 2516 PPP Over Ethernet (PPPoE) ‧RFC 1662 PPP in HDLC-like Framing ‧RFC 1332 PPP Internet Protocol Control Protocol ‧RFC 1577/2225 Classical IP and ARP over ATM (IPoA) ‧RFC 894, a Standard for the Transmission of IP Datagrams over Ethernet Networks ‧RFC 1042, a Standard for the Transmission of IP Datagrams over IEEE 802 Networks ‧MER (a.k.a IP over Ethernet over AAL5) ‧Supports ALG (Application Level Gateways) ‧IEEE802.3 ‧IEEE802.3u ‧IEEE 802.11b ‧IEEE 802.11g ‧IEEE 802.11n ‧IPsec
Routing Features	‧RFC768 User Datagram Protocol (UDP) ‧RFC791 Internet Protocol (IP) ‧RFC792 Internet Control Message Protocol (ICMP) ‧RFC793 Transmission Control Protocol (TCP) ‧RFC826 An Ethernet Address Resolution Protocol (ARP) ‧RFC862 Echo Protocol ‧IP routing: RIP1, RIP2, static routing and policy routing ‧Supports IP routing ‧Supports transparent bridging ‧Supports source and destination routing ‧Supports DHCP server/client ‧Supports UPnP ‧Supports NAT,NAPT ‧Supports DMZ ‧Supports IP QoS ‧Supports IP Multicast IGMP ‧Supports IPv6 MLD Multicast proxy ‧Supports IPv6 　- DHCPv6 　- DNSv6
Security	‧Three-level login including local admin, local user, and remote technical support access ‧Service access control based on incoming interface: WAN or LAN ‧Service access control based on source IP addresses ‧Protects DOS attacks from WAN: SYN flooding, IP surfing, ping of Death, fragile, UDP ECHO (port 7), teardrop, land ‧PAP (RFC1334), CHAP (RFC1994), MSCHAP for PPP session ‧IP filter, Parental control
VPN	8 IPSec VPN Tunnel Tunnel Model: ESP or AH Encryption Algorithm: DES / 3DES AES Integrity Algorithm: MD5 / SHA1
Management	‧Device Configuration, Management and Update ‧Web based GUI ‧Localization support ‧Embedded web server ‧Download image via HTTP, TFTP client, TFTP server, FTP server ‧Command Line Interface via serial port, telnet, or ssh ‧Menu-driven CLI via telnet ‧Universal Plug and Play (UPnP) Internet Gateway Device (IGDv1.0) ‧WAN Management Protocol (TR-069) ‧SNMP v1/v2 ‧PSI configuration file upload and download ‧Date/time update from SNTP Internet Time Server
Wireless Interface Specifications
Wireless Standard	IEEE 802.11a/b/g/n
Frequency Band	2.4GHz: 2.412~2.484GHz 5GHz: 5.180~5.825GHz
Modulation Schemes	‧802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS ‧802.11b: CCK, DQPSK, DBPSK ‧HT20 and HT40: 64 QAM, 16QAM, QPSK, BPSK
Data Transmission Rates	802.11n(40MHz): up to 300 Mbps 802.11n(20MHz): up to 144.4 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps per channel, auto fallback for extended range 802.11b: 1, 5.5, 2, 1 Mbps per channel, auto fallback for extended range 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
RF Power	2.4GHz: 　11b: 18±1.5dBm 　11g: 14.5±1.5dBm 　11n(20MHz): 16.5±1.5dBm(MCS 0~3) 　　　　　　　14.5±1.5dBm(MCS 4~7) 　　　　　　　16.5±1.5dBm(MCS 8~11) 　　　　　　　14.5±1.5dBm(MCS 12~15) 　11n(40MHz): 14±1.5dBm(MCS 0~3) 　　　　　　　12.5±1.5dBm(MCS 4~7) 　　　　　　　14±1.5dBm(MCS 8~11) 　　　　　　　12.5±1.5dBm(MCS 12~15) 5GHz: 　11a: 10±1.5dBm 　11n: 10±1.5dBm
Wireless Data Encryption	64/128-bit WEP, WPA-PSK, WPA2-PSK, 802.1x encryption, and WPS PBC
Environment Specifications
Temperature / Humidity	Operating: 0~40 degrees C, 10~95% (non-condensing) Storage: -20~70 degrees C, 5~95% (non-condensing)
Certification	CE
