WDRT-1202AC

1200Mbps 802.11ac Dual Band Wireless Gigabit Router with USB

Overview
Application
Key Features
Specification
Download
Related Products

Amazing Next-generation Wireless High-speed Connection

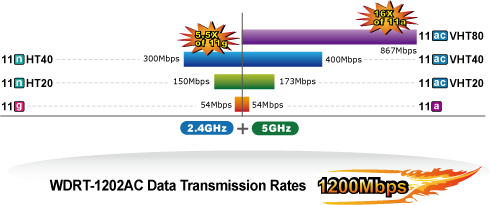

PLANET WDRT-1202AC Wireless Broadband Router supports IEEE 802.11a/b/g/n/ac standard, dual band, and Gigabit LAN and WAN, thus providing the wireless speed of 867Mbps in the 5GHz frequency band and 300Mbps in the 2.4GHz frequency band at the same time, which is 16 times faster than that of the traditional 11g access point. With its outstanding stability of high-speed wireless transmission and enhanced reliability, the WDRT-1202AC can provide users with excellent multimedia streaming through their mobile devices anywhere, anytime in the home and office.

Use of 5GHz Band is Current Trend

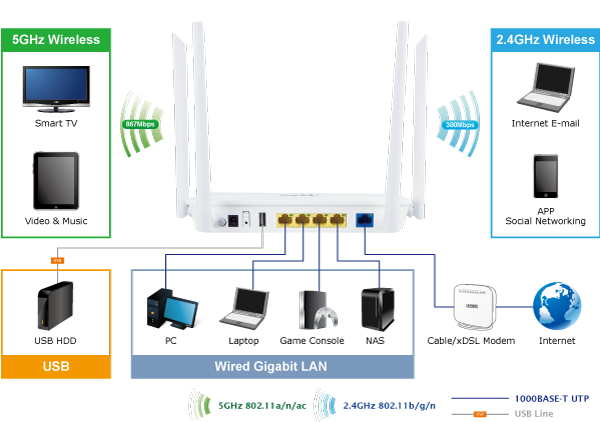

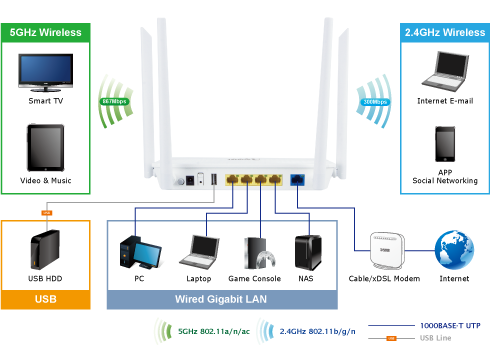

Since the 2.4GHz band is now too crowded with users using the high-speed wireless connection for more and more wireless applications, the 5GHz band, currently in great demand, is designed to relieve the situation. In order to avoid the wireless interference between the two bands, PLANET WDRT-1202AC provides users with the radio frequency of 5GHz for watching HD videos or playing online games while the 2.4GHz band is used for surfing the Internet. The WDRT-1202AC is just like 2 totally independent Access Points in one device for you.

Gigabit LAN Throughput Boosts Network Traffic

Improving communication speed is one of the major requirements of today’s Gigabit local area networks. With throughput up to 10 times faster than the existing 100Mbps solution, the WDRT-1202AC fully employs the full functionality of the 802.11ac wireless standards, eliminating the bottleneck of the transmission speed of the megabit wired type. Using the WDRT-1202AC to connect your desktop, NAS, media player and game console guarantees extremely high throughput and excellent signal quality.

Powerful Firewall and Complete Access Control Functions

The WDRT-1202AC supports NAT function allowing multiple users to access Internet via a single legal IP. It also provides Port Forwarding for the specific LAN PC to act as an application server and offer certain service to the clients on the Internet. In addition, the powerful firewall protects your Intranet clients from unauthorized accesses and various kinds of DoS attacks from the Internet. The WDRT-1202AC with MAC-based access control allows or denies wireless client connections to prevent possible hackers attack.

Home DLNA Media Server over USB File Sharing

The WDRT-1202AC has a built-in USB port which can be connected to an external USB storage device for file sharing. Moreover, the DLNA (Digital Living Network Alliance) compliant media server feature allows multimedia contents, such as streaming videos, music and photos, to be easily shared among SmartTVs, tablets, mobile phones and laptops on a home network. Thus, all clients on the network can share mass storage through the WDRT-1202AC without complicated network configuration. Via the USB port, it also can output 5V DC power to charge any USB compliant devices.

Hardware Specifications
Interface	WAN Port: 1 x 10/100/1000 Mbps auto MDI/MDI-X RJ45 port LAN Port: 4 x 10/100/1000 Mbps auto MDI/MDI-X RJ45 port (LAN1~4) USB Port: 1 x USB 2.0, Type A, 5V 500mA
Antenna	Gain: 　2.4GHz: 2 x 5dBi external antenna 　5GHz: 2 x 5dBi external antenna
Button	1 x reset button (Press for about 10 seconds to reset the device to factory default.) 1 x WPS/Wi-Fi button (Press for 1 to 5 seconds to enable or disable WLAN function; press over 5 seconds to enable WPS function.)
LED Indicators	PWR x 1 WLAN (2.4GHz & 5GHz) x 2 WAN x 1 WPS x 1
Material	Plastic
Dimensions (W x D x H)	250 x 185 x 38 mm (W x D x H)
Weight	322g
Power Requirement	12V DC, 1.5A
Power Consumption	10W
Wireless interface Specifications
Standard	IEEE 802.11ac 5GHz IEEE 802.11a/n 5GHz IEEE 802.11b/g/n 2.4GHz
Frequency Band	Simultaneous 2.4GHz and 5GHz
Modulation Type	802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)
Data Rates	2.4GHz up to 300Mbps 5GHz up to 867Mbps
Channel	2.4GHz: 　FCC (America): 2.412~2.462GHz (11 Channels) 　ETSI (Europe): 2.412~2.472GHz (13 Channels) 5GHz: 　5.180-5.240GHz, 5.745-5.825GHz (up to 9 channels) 　*The actual channels in application will vary depending on the regulation in different regions and countries.
Channel Width	802.11ac: 20/40/80MHz 802.11n: 20/40MHz
Max. RF Power / EIRP	2.4GHz: < 20dBm 5GHz: < 20dBm
Receive Sensitivity	2.4GHz: 　11b(11Mbps): -85dBm 　11g(54Mbps): -70dBm 　11n(20M) mode: -70dBm 　11n(40M) mode: -68dBm 5GHz: 　11a: -74dBm 　11n(20M) mode: -70dBm 　11n(40M) mode: -67dBm 　11ac(20M) mode: -67dBm 　11ac(40M) mode: -61dBm 　11ac(80M) mode: -57dBm
Transmit Power Control	Low, Medium, High
Wireless Management Features
Encryption Security	WPA/WPA2 personal mixed mode
Wireless Security	Wireless MAC address filtering Supports WPS (Wi-Fi Protected Setup)
Wireless Advanced	Supports dual-SSID (2.4G and 5G) Supports guest network
Max. Supported Clients	2.4GHz wireless: 32 5GHz wireless: 32
Router Features
Internet Connection Type	Shares data and Internet access for users, supporting the following 　■ Internet accesses: 　■ DHCP 　■ Static IP 　■ PPPoE 　■ PPTP 　■ L2TP 　■ DS Lite
Firewall	NAT firewall, SPI firewall Built-in NAT server which supports Port Forwarding and DMZ Built-in firewall with URL filtering, and MAC address filtering
LAN	Built-in DHCP server supporting static IP address distribution Supports packet statistics
USB Sharing	Samba DLNA media server
System Management	Web-based (HTTP) management interface Remote management (WAN Access Control) Supports UPnP, PLANET DDNS SNTP synchronization System log and e-mail events notification
Standards Conformance
IEEE Standards	IEEE 802.11ac (2T2R, up to 867Mbps) IEEE 802.11n (2T2R, up to 300Mbps) IEEE 802.11a IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T
Other Protocols and Standards	CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Regulatory	CE, RoHS, WEEE
Environment
Temperature	Operating: 0 ~ 40 degrees C Storage: -40 ~ 70 degrees C
Humidity	Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 95% (non-condensing)
