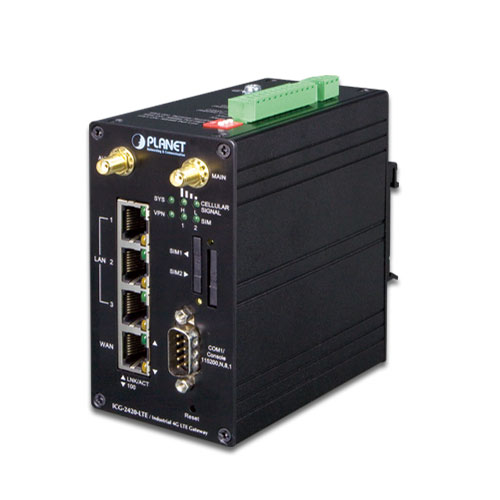

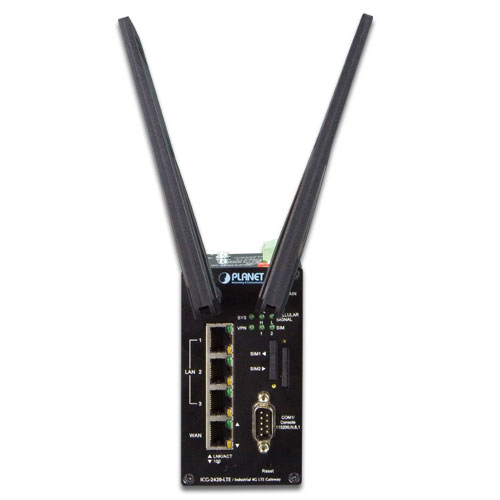

ICG-2420-LTE

Industrial 4G LTE Cellular Gateway with 4-Port 10/100TX (2 SIM Card Slots, 1 RS232, 1 RS485, DI/DO, -20~70 degrees C)

Overview
Application
Key Features
Specification
Download
Related Products

Making Network Connection Easy with 4G LTE Cellular Gateway

PLANET IGS-2420-LTE series is a highly-reliable and secure wireless communications cellular gateway for industrial networking. With four Ethernet ports (3 LAN and 1 WAN) and 4G LTE (Long Term Evolution), the IGS-2420-LTE offers the cellular connection for at least 3 devices. In addition, it supports LTE 2x1 DL MIMO technology which can reach a download (DL) speed of up to 150Mbps and an upload (UL) speed of 50Mbps. The Cellular Gateway also supports multi-band connectivity including LTE FDD/TDD, WCDMA and GSM for a wide range of applications and vertical machine-to-machine (M2M) platform. The IGS-2420-LTE is specially designed for deploying cellular communications networks for heavy industrial use with wide temperature range from -20 to 70 degrees C.

Dual SIM Designed

To enhance reliability, the ICG-2420-LTE series is equipped with dual SIM slots that support failover and roaming over to ensure uninterrupted connectivity for mission-critical cellular communications. It provides a more flexible and easier way for users to create an instant network sharing service via 4G LTE whenever in public places like transportation, outdoor event, etc.

Cost-effective VPN Solution

The ICG-2420-LTE series provides complete data security and privacy for access and exchange of most sensitivity data. The full VPN capability of the ICG-2420-LTE series including built-in OpenVPN and IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1 authentication makes the shared connection more secure and flexible. The IPSec VPN also makes the private tunnel over Internet in a secure way toward the business.

Remote Manageable Solution for Ethernet to RS232/RS485 Applications

PLANET ICG-2420-LTE series’ serial RS232/RS485 interface can be converted over the Fast Ethernet networking. It can operate as a virtual server or client where IP-based serial equipment can be managed. The ICG-2420-LTE series helps save the network administrator’s valuable time in detecting and locating network problems, rather than visual inspection of cabling and equipment.

Superior Management Functions

For networking management features, the ICG-2420-LTE series provides such functions as DHCP server, DMZ and Port Forwarding, as well as full secure functions including Network Address Translation (NAT), IP/URL/MAC filtering. The ICG-2420-LTE series has 4G and WAN connection failover characteristics, which can automatically switch over to the redundant, stable WAN connection to keep users always online without missing any fascinating moments.

User-friendly and Secure Management

For efficient management, the ICG-2420-LTE series is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, the ICG-2420-LTE series offers an easy-to-use, platform independent management and configuration facility. The ICG-2420-LTE series supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. Moreover, the ICG-2420-LTE series offers the remotely secure management by supporting SSHv2 and SNMP v3 connection where the packet content can be encrypted at each session.

Hardware Specifications
Copper Ports	3 LAN 10/100BASE-TX RJ45 auto-MDI/MDI-X ports 1 WAN 10/100BASE-TX RJ45 auto-MDI/MDI-X port
Serial Interface	3 serial interfaces (2 RS232 and 1 RS485) COM1 (RS232 for management and setup) (115200, N, 8, 1) COM2 (RS232 TXD/RXD for remote serial device) COM3 (RS485 D+/D- for remote serial device)
SIM Interface	2 SIM card slots with mini SIM card tray
Cellular Antenna	2 2dBi external antennas with SMA connectors for LTE
DI/DO Interface	■ 2 Digital Input (DI): 　Level 0: 0V~3V (±0.1V) 　Level 1: 10V~30V (±0.1V) ■ 1 Digital Output (alarm): 　Open collector to 50V DC, 500mA (max.)

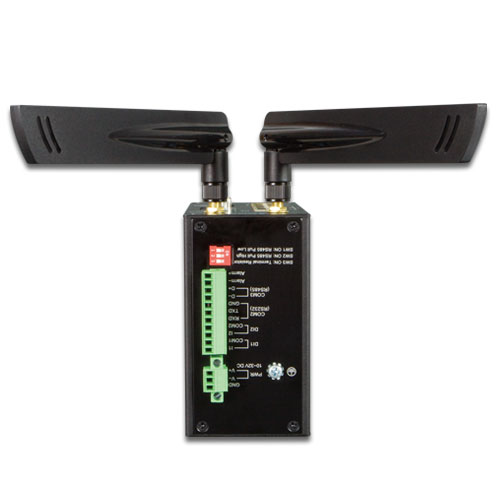

Connector	Removable 3-pin terminal block for power input Removable 11-pin terminal block for DI/DO and serial interface
Switch Architecture	Store-and-Forward
Address Table	1K entries, automatic source address learning and aging
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Reset Button	< 5 sec: System reboot > 10 sec: Factory default
Surge Protection	2KV DC
ESD Protection	6KV DC
Enclosure	IP40 aluminum case

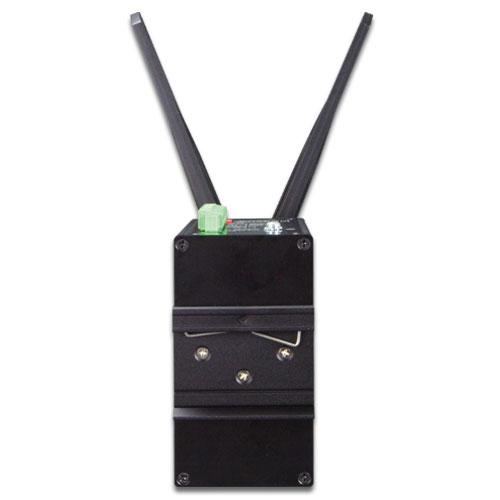

Installation	DIN rail kit
LED	System: SYS (Green) Ethernet Interfaces (Port1-3 and WAN Port): 　LNK/ACT (Green) 　100 (Orange) 　10 (off) LTE SIM and Signal: 　VPN (Green) 　SIM1 and SIM2 (Green) 　Cellular signal: High and low (Green)
Dimensions (W x D x H)	60 x 106 x 110 mm
Weight	452g
Power Requirements – DC	10~32V DC, 1A
Power Consumption	7 watts/24 BTU
Multi Band Supports
EU Model	■ FDD LTE B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800) ■ TDD LTE B38/B40/B41 (2600/2300/2500) ■ WCDMA B1/B5/B8 (2100/850/900) ■ GSM/EDGE B3/B8 (1800/900)
US Model	■ FDD LTE B2/B4/B12 (1900/AWS1700/700) ■ WCDMA B2/B4/B5 (1900/AWS1700/850)
LTE Data Rate	20MHz bandwidth: 150Mbps (DL), 50Mbps (UL)
Advanced Functions
VPN	Tunnel Number 　■ OpenVPN: 10 　■ IPSec 12: IPSec: Encryption Algorithm: 3DES/AES128/AES196/AES256 Integrity Algorithm: MD5/SHA1/SHA256
Connection Types	WAN DHCP Client Static IP PPPoE Client
Secure Network	IP filter URL filter MAC filter
Other	Supports demilitarized zone (DMZ) Supports Modbus TCP (only functions with COM3 RS485) Supports Port Forwarding Supports Dynamic DNS and PLANET DDNS
Management
Basic Management Interfaces	Console; Telnet; Web browser; SNMP v1, v2c, TR069
Secure Management Interfaces	SSHv2, SNMP v3
SNMP MIBs	RFC 1213 MIB-II RFC 1643 Ethernet MIB RFC 2665 Ether-Like MIB RFC 4293 IP MIB
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x flow control and back pressure RFC 768 UDP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP
Environment
Operating	Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
