Amazing PoE+ Managed Switches with Advanced L2+/L4 Switching and Security

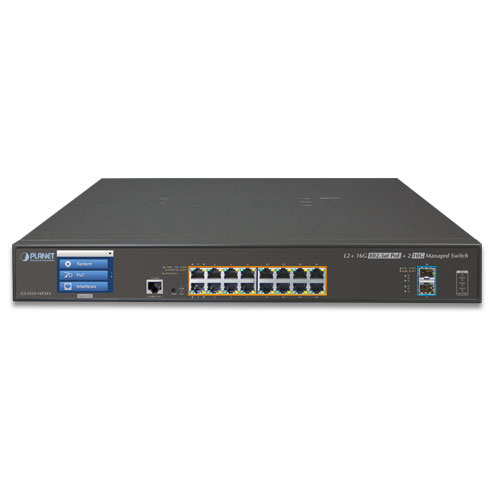

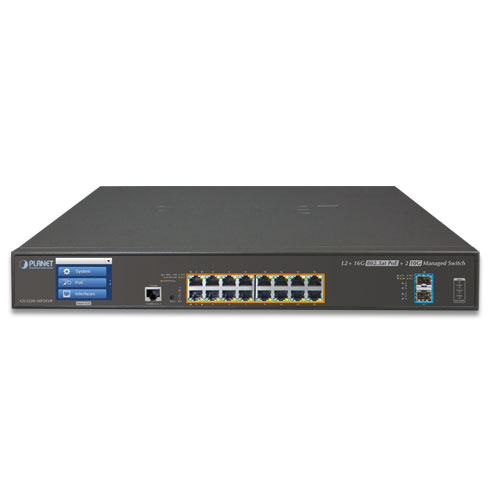

PLANET GS-5220-16P2XV and GS-5220-16P2XVR are cost-optimized, 1.25U, Gigabit PoE+ Managed Switches with LCD Touch Screen featuring PLANET intelligent PoE functions to improve the availability of critical business applications. They provide IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with 16 10/100/1000BASE-T ports featuring 36-watt PoE+ and 2 additional 10Gigabit SFP+ ports. With a total power budget of up to 220 watts for different kinds of PoE applications, the GS-5220-16P2XV and GS-5220-16P2XVR provide a quick, safe and cost-effective PoE+ network solution for small businesses and enterprises. | | | | | | | | | | | | | | Smart and Intuitive LCD Control

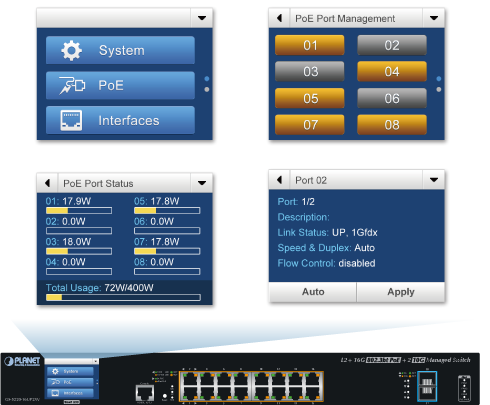

PLANET unique Smart LCD PoE Switches provide an intuitive touch panel on their front panels that facilitate the Ethernet PoE PD management that greatly promotes management efficiency in large-scale network, such as enterprises, hotels, shopping malls, government buildings, and other public areas. They also feature the following special management and status functions:
■ IP address, VLAN and QoS configuration
■ PoE management and status
■ Port management and status, and SFP information
■ Troubleshooting: cable diagnostic and remote IP ping
■ Maintenance: reboot, factory default and save configuration | | | | | | | | | | | | | | Convenient and Smart ONVIF Devices with Detection Feature

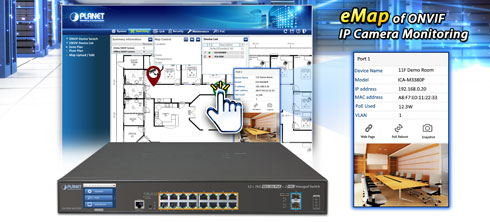

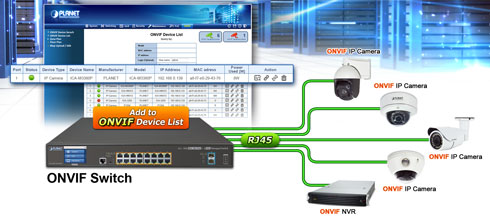

PLANET has newly developed an awesome feature -- ONVIF support -- which is specifically designed for co-operating with video IP surveillances. From the GS-5220-16P2XV and GS-5220-16P2XVR GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images into switch and they allow for deploying location of surveillance devices for easier inspection and planning. Moreover, clients can get real-time surveillance’s information and online/offline status, and they also allow PoE reboot control from GUI.
| | | | | | | | | | | | | | | | | | | | | Built-in Unique PoE Functions for Powered Devices Management
Being the managed PoE switches for surveillance, wireless and VoIP networks, the GS-5220-16P2XV and GS-5220-16P2XVR feature the following special PoE management functions:
■ PD alive check
■ Scheduled power recycling
■ PoE schedule
■ PoE usage monitoring
Intelligent Powered Device Alive Check
The GS-5220-16P2XV and GS-5220-16P2XVR can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-5220-16P2XV and GS-5220-16P2XVR will resume the PoE port power and bring the PD back to work. They will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.
Scheduled Power Recycling
The GS-5220-16P2XV and GS-5220-16P2XVR allow each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, they will reduce the chance of IP camera or AP crash resulting from buffer overflow.
PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection, the GS-5220-16P2XV and GS-5220-16P2XVR can effectively control the power supply besides their capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.
PoE Usage Monitoring
Via the power usage chart in the web management interface, the GS-5220-16P2XV and GS-5220-16P2XVR enable the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, they greatly enhance the management efficiency of the facilities.
Cost-effective 10Gbps Uplink Capacity
10G Ethernet is a big leap in the evolution of Ethernet. The two 10G SFP+ slots of the GS-5220-16P2XV and GS-5220-16P2XVR support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They greatly support SMB network to achieve the maximum performance of 10Gbps in a cost-effective way because the 10GbE interface usually could be available in Layer 3 Switch but Layer 3 Switch could be too expensive to SMBs.

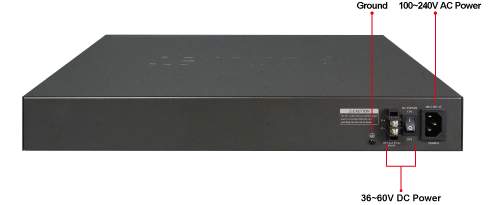

Redundant AC/DC Power Supply to Ensure Continuous Operation
The GS-5220-16P2XVR is particularly equipped with one 100~240V AC power supply unit and one 36~60V DC power supply unit to provide an enhanced reliable and scalable redundant power supply. The continuous power system is specifically designed to fulfill the demands of high-tech facilities requiring the highest power integrity. With the 36~60V DC power supply, the GS-5220-16P2XVR is able to act as a telecom-level device that can be located in the electronic room. | | | | | | | | | | | | | | Environment-friendly, Smart Fan Design for Silent Operation
The GS-5220-16P2XV and GS-5220-16P2XVR feature a 19-inch metal housing, a low noise design and an effective ventilation system. They support the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-5220-16P2XV and GS-5220-16P2XVR are able to operate reliably, stably and quietly in any environment without affecting their performance.

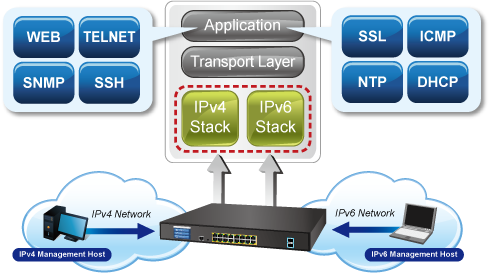

Solution for IPv6 Networking
With the IPv6/IPv4 dual stack and other management functions with user-friendly interfaces, the GS-5220-16P2XV and GS-5220-16P2XVR are the best choices for IP surveillance, VoIP and wireless service providers to deploy the IPv6 network. More importantly, they help SMBs upgrade their network infrastructures to the IPv6 era without any monetary investment. | | | | | | | | | | | | | | IPv4/IPv6 VLAN Routing for Secure and Flexible Management
To help customers stay on top of their businesses, the GS-5220 switch series not only provides ultra high transmission performance and excellent Layer 2 technologies, but also offers IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

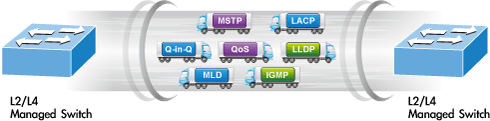

Robust Layer 2 Features
The GS-5220 series can be programmed for advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The GS-5220 series allows the operation of a high-speed trunk combining multiple ports. It consists of a maximum of 9 trunk groups with 2 ports for each group, and supports connection fail-over as well. | | | | | | | | | |

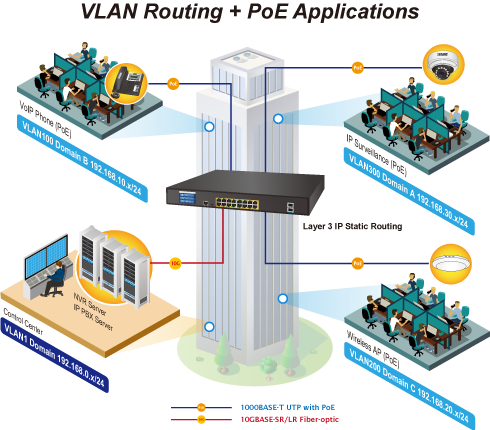

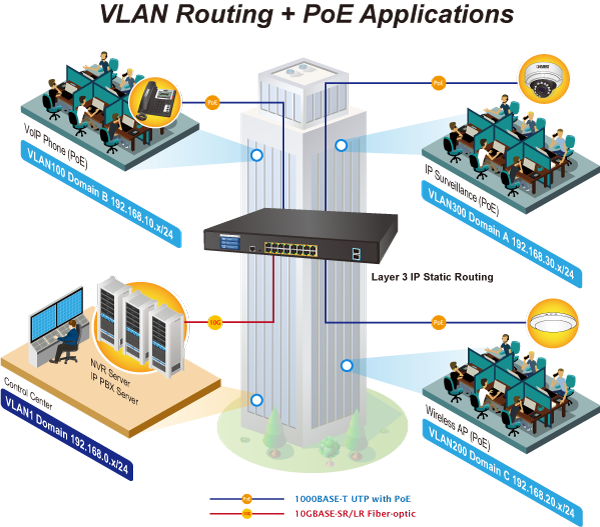

Layer 2+ VLAN Static Routing and PoE Application
The GS-5220-16P2XV and GS-5220-16P2XVR feature IEEE 802.3at PoE+ that combines up to 36-watt power output per port, and PoE budget is up to 220 watts which can deploy up to 16 PoE PD devices. With the built-in robust IPv4/IPv6 Layer 3 traffic routing protocol, the GS-5220-16P2XV series ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 32 routing entries. The GS-5220-16P2XV series is certainly a cost-effective and ideal solution for enterprises. | | | | | | | | | | | | | | Multiple Spanning Tree Protocol with PoE IP Office Solution for SMBs and Workgroups

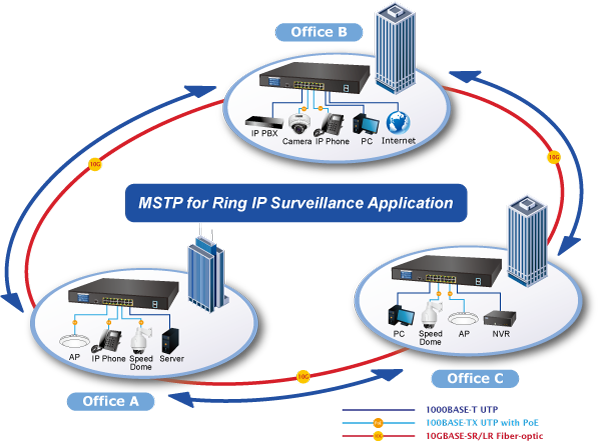

The GS-5220-16P2XV and GS-5220-16P2XVR feature strong, rapid self-recovery capability to prevent interruptions and external intrusions. They incorporate Multiple Spanning Tree Protocol (802.1s MSTP) into customer’s automation network to enhance system reliability and uptime. Adopting the IEEE 802.3af/802.3at PoE standard, the GS-5220-16P2XV and GS-5220-16P2XVR can directly connect with any IEEE 802.3at PoE end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The GS-5220-16P2XV and GS-5220-16P2XVR can easily help enterprises with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled.
| | | | | | | | | |

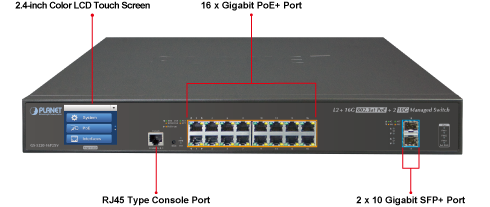

Physical Port- 16 10/100/1000BASE-T Gigabit RJ45 copper ports with 16-port IEEE 802.3af/at PoE+ injector
- 2 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
- RJ45 console interface for switch basic management and setup
Power over Ethernet- Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 16 ports of IEEE 802.3af/IEEE 802.3at devices powered
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- PoE management
- - Total PoE power budget control
- - Per port PoE function enable/disable
- - PoE admin-mode control
- - PoE port power feeding priority
- - Per PoE port power limitation
- - PD classification detection
- - Temperature threshold control
- - PD alive check
- - PoE schedule
Layer 2 Features- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Storm Control support
- - Broadcast/Multicast/Unknown unicast
- Supports VLAN
- - IEEE 802.1Q tagged VLAN
- - Up to 255 VLANs groups, out of 4094 VLAN IDs
- - Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
- - Private VLAN Edge (PVE)
- - Protocol-based VLAN
- - MAC-based VLAN
- - Voice VLAN
- Supports Spanning Tree Protocol
- - IEEE 802.1D Spanning Tree Protocol
- - IEEE 802.1w Rapid Spanning Tree Protocol
- - IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
- - BPDU Guard
- Supports Link Aggregation
- - 802.3ad Link Aggregation Control Protocol (LACP)
- - Cisco ether-channel (static trunk)
- - Maximum 9 trunk groups, up to 2 ports per trunk group
- - Up to 40Gbps bandwidth (full duplex mode)
- Provides port mirror (many-to-1)
- Port mirroring to monitor the incoming or outgoing traffic on a particular port
- Loop protection to avoid broadcast loops
Layer 3 Features- IP interfaces (Max. 8 VLAN interfaces)
- Routing table (Max. 32 routing entries)
- Routing Protocols (IPv4/IPv6 software static routing)
Quality of Service- Ingress Shaper and Egress Rate Limit per port bandwidth control
- 8 priority queues on all switch ports
- Traffic classification
- - IEEE 802.1p CoS
- - TOS/DSCP/IP precedence of IPv4/IPv6 packets
- - IP TCP/UDP port number
- - Typical network application
- Strict priority and Weighted Round Robin (WRR) CoS policies
- Supports QoS and In/Out bandwidth control on each port
- Traffic-policing on the switch port
- DSCP remarking
Multicast- Supports IGMP snooping v1, v2 and v3
- Supports MLD snooping v1 and v2
- Querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
- Multicast VLAN Registration (MVR) support
Security- Authentication
- - IEEE 802.1x port-based/MAC-based network access authentication
- - Built-in RADIUS client to cooperate with the RADIUS servers
- - TACACS+ login users access authentication
- - RADIUS/TACACS+ users access authentication
- Access Control List
- - IP-based Access Control List (ACL)
- - MAC-based Access Control List
- Source MAC/IP address binding
- DHCP Snooping to filter untrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- IP address access management to prevent unauthorized intruder
Management- IPv4 and IPv6 dual stack management
- Switch Management Interfaces
- - Console/Telnet Command Line Interface
- - Web switch management
- - SNMP v1, v2c, and v3 switch management
- - SSH/SSL secure access
- - 2.4-inch color LCD touch screen
- IPv6 IP address/NTP/DNS management
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System Maintenance
- - Firmware upload/download via HTTP/TFTP
- - Reset button for system reboot or reset to factory default
- - Dual images
- DHCP Relay
- DHCP Option 82
- User Privilege levels control
- NTP (Network Time Protocol)
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
- Network Diagnostic
- - ICMPv6/ICMPv4 remote ping
- - Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
- SMTP/Syslog remote alarm
- Four RMON groups (history, statistics, alarms and events)
- SNMP trap for interface Link Up and Link Down notification
- System Log
- PLANET Smart Discovery Utility for deployment management
- Smart fan with speed control
Redundant Power System (GS-5220-16P2XVR) - Redundant 100~240V AC/36-60V DC dual power
- Active-active redundant power failure protection
- Backup of catastrophic power failure on one supply
- Fault tolerance and resilience
| | |
| Hardware Specifications |
| Copper Ports |
16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP+ Slots |
2 10GBASE-SR/LR SFP+ interfaces (Port-17 to Port-18)
Compatible with 1000BASE-SX/LX/BX SFP transceiver |
| Console |
1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
72Gbps/non-blocking |
| Throughput |
53.57Mpps@64Bytes |
| Address Table |
16K entries, automatic source address learning and aging |
| Shared Data Buffer |
32M bits |
| Flow Control |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
|
| Jumbo Frame |
10K bytes |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default
|
| Dimensions (W x D x H) |
440 x 300 x 56 mm, 1.25U height |
| Weight |
GS-5220-16P2XV:4273g
GS-5220-16P2XVR:4373g |
| LED |
System:
SYS (Green)
AC/PWR (Green)
DC (Green) (GS-5220-16P2XVR Only)
Fan1/2/3 Alert ( Red )
PoE PWR Alert ( Red )
PoE Ethernet Interfaces (Port-1 to Port-16):
PoE In-use (Orange)
Ethernet Interfaces (Port-1 to Port-16):
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
1/10G SFP+ Interfaces (Port-17 to Port-18):
1G (Green), 10G (Orange) |
| Power Consumption |
GS-5220-16P2XV:
Max. 271 watts/924.69 BTU
GS-5220-16P2XVR:
AC: Max. 271 watts/924.69 BTU
DC: Max. 36.6 watts/124.88 BTU |
| Power Requirements – AC |
GS-5220-16P2XV:
AC 100~240V, 50/60Hz, 7A
GS-5220-16P2XVR:
AC 100~240V, 50/60Hz, 7A |
| Power Requirements – DC |
GS-5220-16P2XVR:
DC 36~60V, 2A |
| ESD Protection |
6KV DC |
| Fan |
3 smart fans |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af/802.3at PoE PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
Per port 53V DC, 36 watts (max.) |
| Power Pin Assignment |
End-span: 1/2(-), 3/6(+) |
| PoE Power Budget |
220 watts (max.) |
| PoE Ability PD @ 7 watts |
16 units |
| PoE Ability PD @ 15 watts |
14 units |
| PoE Ability PD @ 30 watts |
7 units |
| Layer 2 Management Functions |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
|
| Port Status |
Display each port’s speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status
|
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor
|
| VLAN |
802.1Q tagged-based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
9 groups with 2 port per trunk
|
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
|
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching:
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/ToS field in IP packet |
| IGMP Snooping |
IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support |
| MLD Snooping |
MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
|
| Access Control List |
IP-based ACL/MAC-based ACL
Up to 256 entries
|
| Bandwidth Control |
Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps |
| Layer 3 Functions |
| IP Interfaces |
Max. 8 VLAN interfaces |
| Routing Table |
Max. 32 routing entries |
| Routing Protocols |
IPv4 software static routing
IPv6 software static routing
|
| Management |
| Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c; 2.4-inch color LCD touch screen |
| Secure Management Interfaces |
SSH, SSL, SNMP v3 |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2 |
| Environment |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
|
.jpg)
_01.jpg)
_02.jpg)
_03.jpg)
_04.jpg)
