| Hardware Specifications |
| Hardware Version |
3 |

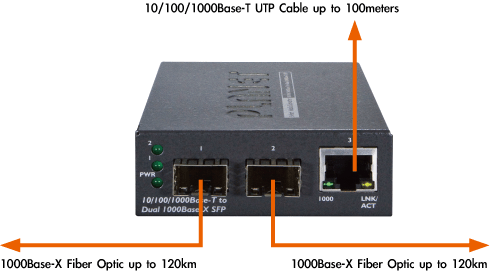

| Ports |
Copper: One 10/100/1000BASE-T port
Fiber: Two 1000BASE-X SFP slots |
| Cable |
Twisted-pair
10BASE-T: 2-pair UTP Cat3,4,5, up to 100 meters
100BASE-TX: 2-pair UTP Cat5, 5e up to 100 meters
1000BASE-T: 4-pair UTP Cat5e,6 up to 100 meters

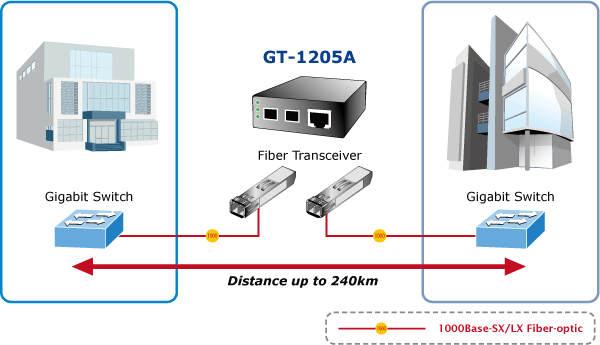

Fiber-Optic Cable
50/125μm or 62.5/125μm multi-mode fiber cable, up to 220 and 550 meters
9/125μm single-mode cable with distance of 10/15/20/30/40/50/60/70/120km or longer (may vary on SFP module) |
| LED Display |
System: One Power LED (Green)
Fiber Port: Two LNK/ACT LED (Green)
TP Port: One Speed LED (Green) , One LNK/ACT LED (Orange) |
| Switch Processing Scheme |
Store and Forward |
| Fabric |
6Gbps |
| Throughput (packet per second) |
4.4Mpps |
| Maximum Packet Size |
10K Bytes |
| Flow Control |
Back pressure for half-duplex. IEEE 802.3x pause frame for full-duplex |
| Power Requirements |
5V DC, 2A max. |
| Power Consumption |
4 watts/13.6BTU per hour max. |
| Dimensions (W x D x H) |
94 x 70 x 26 mm |
| Weight |
180g (device only) |
| Standard Conformance |
| EMI Safety |
FCC Class B, CE |
| Operating environment |
0 ~ 50 degrees C |
| Storage environment |
-10 ~ 70 degrees C |
| Operating Humidity |
5 ~ 95%, Relative Humidity, non-condensing |
| Storage Humidity |
5 ~ 95%, relative humidity (non-condensing) |
| Standard Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3x Flow Control |
