VIP-156PE

802.3af PoE SIP Analog Telephone Adapter

Overview
Application

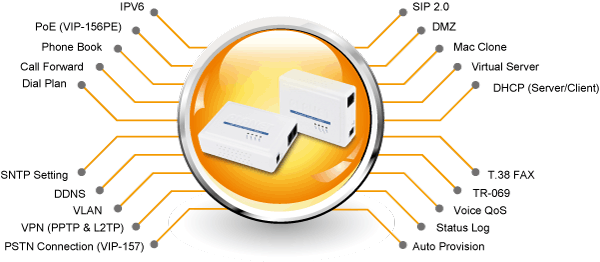

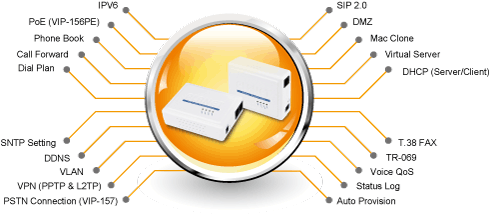

Key Features
Specification
Download
Related Products

PLANET VoIP Analog Telephony Adapter with PoE

PLANET VIP-156PE, an easy-to-use-and-install PoE Analog Telephone Adapter, provides the same voice quality and reliability that users have come to expect from PLANET ATAs.

The VIP-156PE is a 1-port Analog Telephone Adapter which allows you to use your existing analog phones or fax machines to make calls via the internet. The VIP-156PE supports T.38 fax and works with most SIP-based Internet service providers (ISPs).It’s a great choice for voice service providers because it is completely customized auto-provisioning and autoupdate. If you want to have the world's leading VoIP service, you need to have the world's leading VoIP device!

Cost-effective, easy-to-install and simple-to-use, the VIP-156PE converts standard telephones to IP-based networks. With the 802.3af/at PoE integration, the service providers and enterprises offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.

Telecoms and Business IP Telephony Application The VIP-156PE includes two Ethernet interfaces for Internet (PPPoE, DHCP or fixed IP), or office LAN connection. Besides the IPv6, VPN (PPTP and L2TP), VLAN and PLANET Easy Dynamic DNS features, the VIP-156PE is an intelligent low-density Voice over IP (VoIP) gateway that enables carrier-class residential and business IP telephony services to be delivered over broadband or high-speed Internet connections to two standard RJ11 telephones. The 10/100 LAN port allows internet connectivity to be extended to a second device eliminating the need for a second Ethernet drop.

Calls from your VIP-156PE to any other device on any VIP-156PE device anywhere in the world are always free! The VIP-156PE allows you to use your analog devices with any SIP trucking provider. Simply plug the Analog Telephone Adapter into your broadband router and then plug your analog devices into the ATA. The VIP-156PE can also connect to your broadband router and to another IP device such as PC. The 2-port RJ45 router has integrated QoS to ensure your voice traffic is prioritized above other types of traffic. It will support up to 5 VoIP services or SIP accounts.

When co-working with a SIP service provider, you can enjoy the value-added features such as message waiting indication (MWI), hotline, three-way conferencing, caller ID, call forward (always, busy and no answer), call waiting, Do Not Disturb (DND), dial plan and phone book. The VIP-156PE can be seamlessly integrated into the telephony network built by our IP PBX system series. The VIP-156PE and PLANET IP PBX System (IPX-330/IPX-2100/IPX-2200/IPX-2500) are the ideal combination for your office daily communications.

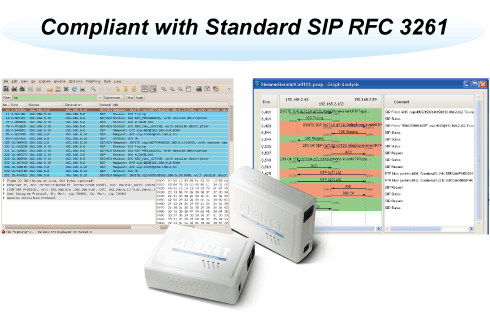

Compliant with IETFSIP 2.0

SIP service continues to gain popularity among businesses as the preferred protocol for enhancing communication across IP networks. The VIP-156PE supports Session Initiation Protocol 2.0 (RFC 3261), STUN and Outbound Proxy for easy integration with general voice over IP system. The VIP-156PE is able to broadly interoperated with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better voice over IP services.

Convenient Design Brings Quality Communication

Based on years of VoIP manufacturing experiences, PLANET VoIP total solutions are known as advanced implementation of standard-based telephony along with mass deployment capability.

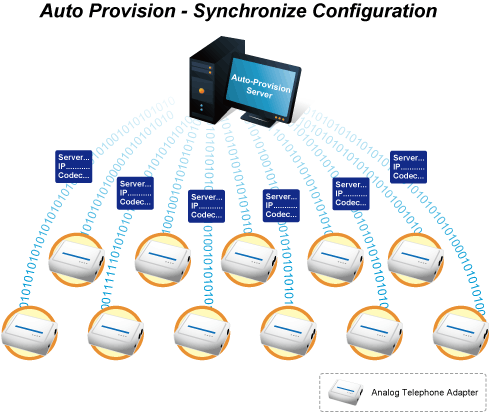

The VIP-156PE is the fastest deployment ready ATA with auto-provision at the lowest cost. The VIP-156PE can be deployed directly to customers, automatically redirect to your provisioning server or you can use the TR069 ITSP portal for target profiles.

With the VIP-156PE, enterprises are able to save the installation cost and extend their previous investments in telephones, conference and speakerphones. The VIP-156PE acts as the bridge between the traditional analog systems and the IP network with an extremely affordable investment.
