| Hardware Specifications |
| Hardware Version |
3 |

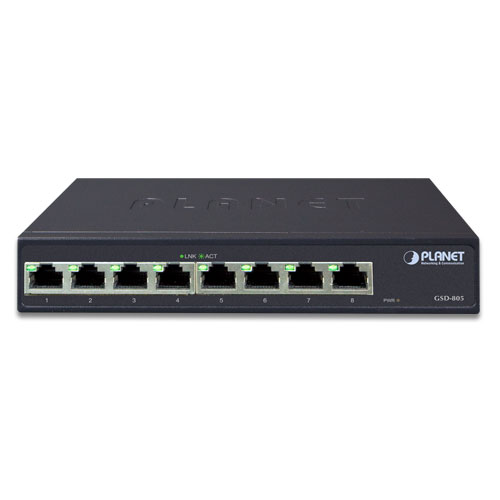

| Network Connector |
8-Port RJ45 for 10/100/1000BASE-T, auto MDI/MDIX |
| LED Display |
System: Power(Green)
Per port: 10/1001000 LNK/ACT(Green) |
| Switch Architecture |
Store and Forward switch architecture |
| MAC Address Table |
8K MAC address table with auto learning function |
| Packet Buffer |
1Mbit |
| Switch Fabric |
16Gbps |
| Switch Throughput |
11.9Mpps @64 bytes |
| Jumbo Packet |
9216 bytes |
| Flow Control |
Back pressure for half-duplex. IEEE 802.3x pause frame for full-duplex |

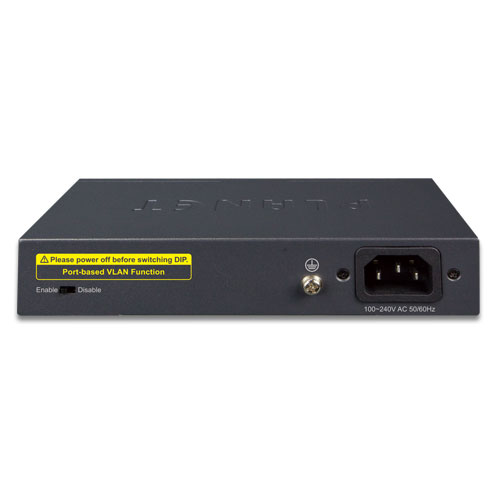

| Power Requirements |
Internal power 100-240V AC, 50/60Hz, 0.2A |

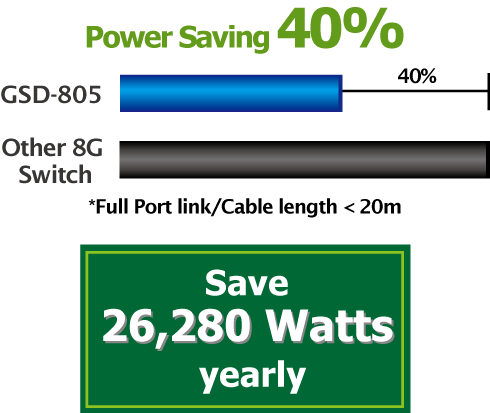

| Power Consumption |
Max. 2.4 watts/8.1 BTU |
| Dimensions (W x D x H) |
168 x 93 x 32mm |
| ESD Protection |
Contact Discharge 4KV DC
Air Discharge 6KV DC |
| EFT Protection |
ESD (Ethernet): 2KV
Surge (EFT for power): 4KV |
| Surge Protection |
Different module +- 1.5KV
Common mode +- 2KV |
| Electrostatic Standard |
+- 2KV |
| Weight |
428g |
| Standard Conformance |
| EMI Safety |
FCC Class B, CE |
| Standard Compliance |
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3az Energy-Efficient Ethernet
IEEE 802.3x Flow Control |
| Environment |
| Operating Environment |
0 ~ 50 degrees C |
| Storage Environment |
-10 ~ 70 degrees C |
| Operating Humidity |
5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity |
5 ~ 95%, relative humidity, non-condensing |
