WNAP-C3220E

300Mbps 802.11n Ceiling-mount Wireless Access Point (802.3af/at PoE, 10/100TX LAN)

Overview
Application
Key Features
Specification

Centrally Managed Wireless Network for Enterprises

PLANET WNAP-C3220E 300Mbps 802.11n Wireless Access Point offers High power and user limitation control that can extend your wireless network coverage and manage clients easily. With 802.1Q VLAN and PLANET AP Controller compliance, the WNAP-C3220E can help create a secure, cost-effective and highly-scalable wireless LAN infrastructure that provides a seamlessly and centrally managed wireless network.

Comprehensive Wireless Operation Mode

The WNAP-C3220E supports multiple types of wireless connectivity such as AP, Gateway, Repeater, WDS Point-to-Point (PtP) and WDS Point-to-Multipoint (PtMP), allowing users to comprehensively experience various applications. It also helps users to easily build wireless network and extend the wireless range of the existing wireless network.

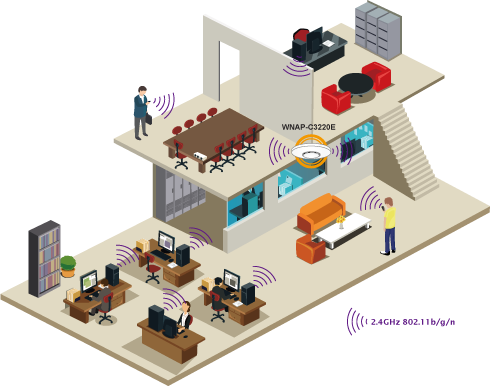

Wireless Range Extender

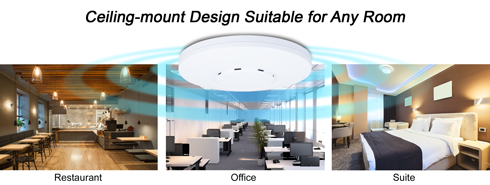

To extend the coverage and eliminate the dead spot of wireless network in every place, the WNAP-C3220E supports Universal Repeater mode which can solve the incompatibility between brands and provides a high-speed, wide coverage. The space-saving and ceiling-mountable design makes the WNAP-C3220E exquisite and easy to be mounted on the ceiling or wall in different places. The built-in intelligent 5dBi high-gain antennas offer 360 degrees of wider coverage with excellent performance.

Advanced, Secure and Rigorous Authentication

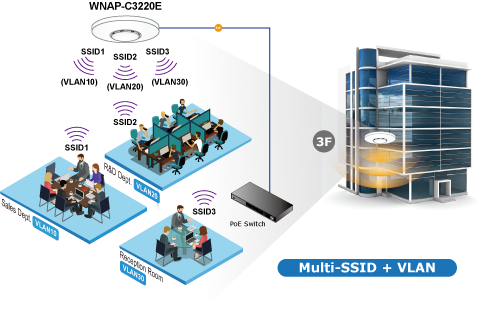

The WNAP-C3220E supports 128-bit WEP, WPA / WPA2, WPA-PSK and WPA2-PSK wireless encryptions, the advanced WPA2-AES mechanism and 802.1X RADIUS authentication, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the wireless LAN network based on the ACL (Access Control List) that the administrator pre-established. For management purposes, the IEEE 802.1Q VLAN supported allows multiple VLAN tags to be mapped to multiple SSIDs to distinguish the wireless access.

Hardware Specifications
Interfaces LAN	1 x 10/100BASE-TX RJ45 port Auto-negotiation and auto MDI/MDI-X
Antennas Gain	2 x 5dBi antenna
Button	Reset button (Press over 7 seconds to reset the device to the factory default)
LED Indicators	Power
Dimensions (Φ x H)	159 x 45mm
Weight	161 ±5g
Power Requirements	48V 0.5A, IEEE 802.3af/at PoE+
Power Consumption	< 5W
Mounting	Ceiling mount
Wireless Interface Specifications
Standard	IEEE 802.11b/g/n 2.4GHz
Media Access Control	CSMA/CA
Data Modulation	Transmission/emission type: DSSS/OFDM Data modulation type: OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK
Frequency Range	FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz
Operating Channels	FCC: 1~11 ETSI: 1~13
RF Power	FCC: up to 25 ± 1.5dBm ETSI: < 20dBm (EIRP)
Receive Sensitivity	2.4GHz: 　802.11b(1Mbps):-95dBm 　802.11b(11Mbps):-90dBm 　802.11g(6Mbps):-92dBm 　802.11g(54Mbps):-72dBm 　802.11n(MCS0/MCS8):-92dBm 　802.11n(MCS7/MCS15):-70dBm
Software Features
LAN	Static IP Supports IP-MAC binding
Wireless Mode	■ Access Point ■ Gateway ■ Repeater ■ WDS (AP/Bridge/Station)
Channel Width	20MHz, 40MHz
Encryption Security	64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless Security	Enable/Disable SSID Broadcast Wireless MAC address filtering User Isolation
Wireless Advanced	WMM (Wi-Fi Multimedia): 802.11e Wireless QoS Multiple SSIDs: up to 4 Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other Provides wireless statistics
Max. SSIDs	4
Max. Clients	64 per radio (50 is suggested, depending on usage)
Max. WDS Peers	4
Wireless QoS	Supports Wi-Fi Multimedia (WMM)
Wireless Advanced	Auto channel selection 5-level transmit power control (100%, 75%, 50%, 25%, 12.5%) Client limit control, coverage threshold Wi-Fi channel analysis chart
Status Monitoring	Device status, wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server
VLAN	IEEE 802.1Q VLAN (VID: 3~4094) SSID-to-VLAN mapping to up to 4 SSIDs
Self-healing	Supports auto reboot settings per day/hour
System Management	Supports PLANET Hardware AP Controller/ Software AP Controller Applicable controllers[1]: WAPC-500, SAPC Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN pass-through SNMP v1/v2c/v3 support, MIB I/II, Private MIB *Remarks:[1]. the feature will be supported through firmware/system upgrade
Environment & Certification
Temperature	Operating: 0 ~ 40 degrees C Storage: -40 ~ 70 degrees C
Humidity	Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing)
Regulatory	CE, RoHS
