WDAP-802AC

1200Mbps Dual Band 802.11ac Outdoor Wireless AP (IP68, 802.3at PoE+, 4 x N-Type connector)

Overview
Application
Key Features
Specification
Download
Related Products

Ultra High Speed and Wide Coverage

PLANET WDAP-802AC 1200Mbps Dual Band 802.11ac Outdoor Wireless AP offer a wide coverage of wireless Internet access and ultimate wireless speed. It comes with the IP68-rated aluminum case protected from contact with harmful dust and immersion in water. It adopts the latest IEEE 802.11ac 2T2R dual-band technology and provides 2.4GHz and 5GHz dual radios with maximum connectivity and performance for long-range coverage. By connecting high-gain antenna through the flexible N-type connectors, the system integrator can easily assist customers in achieving various outdoor long-distance applications under rough weather in any harsh environment.

Flexible, Durable and Reliable Outdoor Characteristics

To reach maximum reliability in the harsh environment, the WDAP-802AC not only comes with IP68-rated Aluminum Die-cast Housing, but also adopts the enterprise-level Qualcomm kernel, capable of withstanding wide temperature ranging from -40 to 70 degrees C. Designed with the IEEE 802.3at PoE+ (Power over Ethernet) power scheme, the WDAP-802AC can be easily installed in the areas where power outlets are not available. Furthermore, it is also suitable to be integrated with PLANET Solar Power PoE System to offer farther wireless service in remote areas.

Central Management Simplifies High-density Deployment

For wireless deployment in high-density environments such as campuses, communities, warehouses, etc., the dual-radio design and coverage threshold make the WDAP-802AC capable of utilizing dual band to relay signal and limit specific clients so as to provide maximum bandwidth to those authenticated users. Moreover, you can simply install our software controller, PLANET SAPC (Smart AP Control), to deliver wireless profiles to multiple APs simultaneously, thus making the central management simple.

Multiple SSIDs with VLAN Tagging

In the aspect of security, the WDAP-802AC supports WPA/ WPA2, and the 802.1X RADIUS authentication to secure the wireless connection. Besides, the supported IEEE 802.1Q VLAN allows multiple VLAN tags to be mapped to multiple SSIDs to distinguish the wireless access. This makes it possible for the WDAP-802AC to work with managed Ethernet switches to have VLANs assigned for a different access level and authority.

Hardware
Standard Support	IEEE 802.11ac IEEE 802.11n IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x flow control
Material	Aluminum
Dimensions (W x D x H)	225 x 23.2 x 225mm
Weight	4kg
Power Requirement	48V 0.5A, IEEE 802.3at PoE+
Power Consumption (max.)	< 25.5W

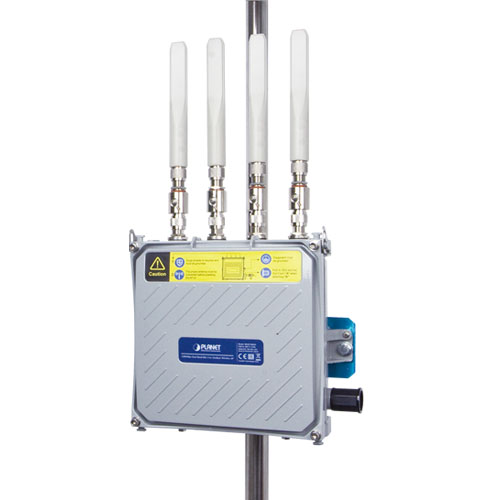

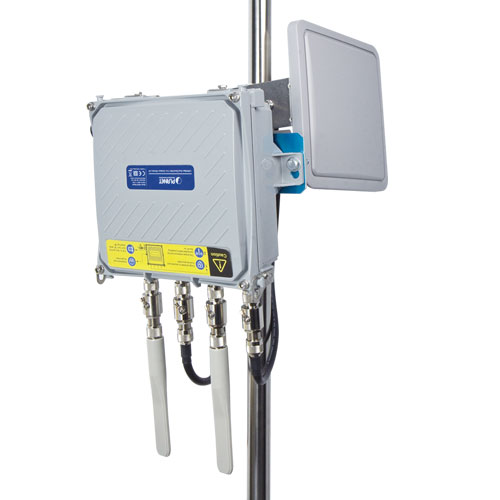

Mounting Type	Mast mounting
Interface	Wireless IEEE802.11a/b/g/n/ac, 2T2R PoE LAN: 1 x 10/100/1000BASE-T, auto-MDI/MDIX, 802.3at PoE In
Button	Reset button (Inside enclosure)

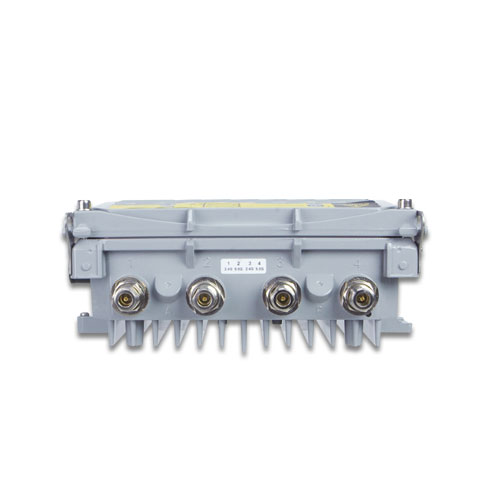

Antenna	Built-in four N-type connectors
Data Rate	IEEE 802.11b: up to 11Mbps IEEE 802.11a/g: up to 54Mbps IEEE 802.11n (20MHz): up to 150Mbps IEEE 802.11n (40MHz): up to 300Mbps 802.11ac (VHT20): Up to 173.3Mbps 802.11ac (VHT40): Up to 400Mbps 802.11ac (VHT80): Up to 867Mbps
Media Access Control	CSMA/CA
Modulation	802.11ac: OFDM (BPSK/ QPSK/ 16QAM/ 64QAM/ 256QAM) 802.11a/g/n: OFDM (BPSK/ QPSK/ 16QAM/ 64QAM) 802.11b: DSSS (DBPSK/ DQPSK/ CCK)
Frequency Band	2.4GHz: 　FCC: 2.412~2.462GHz 　ETSI: 2.412~2.472GHz 5GHz: 　FCC: 5.180~5.240GHz, 5.745~5.825GHz 　ETSI: 5.180~5.700GHz
Operating Channels	2.4GHz: 　FCC: 1~11 Channels 　ETSI: 1~13 Channels 5GHz: 　FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 Channels) 　ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 　　　　140 (16 Channels) *5GHz channel list may vary in different countries depending on their regulations.
Max. Transmit Power (dBm)	FCC : up to 29 ± 1dBm ETSI : < 20dBm (EIRP)
Receiver Sensitivity (dBm)	2.4GHz: 　802.11b(1Mbps):-99dBm 　802.11b(11Mbps):-92dBm 　802.11g(6Mbps):-95dBm 　802.11g(54Mbps):-82dBm 　802.11n HT20(MCS0/MCS8):-95dBm 　802.11n HT20(MCS7/MCS15):-77dBm 　802.11n HT40(MCS0/MCS8):-93dBm 　802.11n HT40(MCS7/MCS15):-75dBm 5GHz: 　802.11a(6Mbps):-92dBm 　802.11a(54Mbps):-75dBm 　802.11n HT20(MCS0/MCS8):-91dBm 　802.11n HT20(MCS7/MCS15):-72dBm 　802.11n HT40(MCS0/MCS8):-88dBm 　802.11n HT40(MCS7/MCS15):-70dBm 　802.11ac VHT20(MCS0):-92dBm 　802.11ac VHT2(MCS8):-70dBm 　802.11ac VHT40(MCS0):-89dBm 　802.11ac VHT40(MCS9):-65dBm 　802.11ac VHT80(MCS0):-87dBm 　802.11ac VHT80(MCS9):-61dBm
Environment & Certification
Operating Temperature	-40~70 degrees C
Operating Humidity	10~90% (non-condensing)
IP Level	IP68
ESD Protection	±8kV air gap discharge ±4kV contact discharge
Surge Protection	±4kV
Regulatory	CE, RoHS
Software
LAN	Static IP Supports IP-MAC binding
WAN Type (GW/WISP mode)	■ Static IP ■ Dynamic IP ■ PPPoE
Wireless Modes	■ Access Point ■ Gateway ■ Repeater ■ WDS (PtP/PtMP) ■ WISP
Channel Width	20MHz, 40MHz, 80MHz
Encryption Type	64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless Security	Enable/Disable SSID Broadcast Wireless MAC address filtering User Isolation
Max. SSIDs	4
Max. Wireless Clients	64 per radio (50 is suggested, depending on usage)
Max. WDS Peers	4
Wireless QoS	Supports Wi-Fi Multimedia (WMM)
Wireless Advanced	Auto channel selection 5-level transmit power control (100%, 75%, 50%, 25% and 12.5%) Client limit control, coverage threshold Distance control (Auto Ack Timeout) Wi-Fi channel analysis chart
Status Monitoring	Device status, wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server
VLAN	IEEE 802.1Q VLAN (VID: 3~4094) SSID-to-VLAN mapping up to 4 SSIDs
Self-healing	Supports auto reboot settings per day/hour
Management	Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through SNMP v1/v2c/v3 support, MIB I/II, Private MIB
Central Management [1]	Applicable controllers: WAPC-500, WAPC-1000 and Smart AP Control(SAPC) *Remarks[1]: the feature will be supported through firmware/system upgrade.
