| Specificații hardware |
| Interfețe LAN |
2 x 10/100/1000BASE-T RJ45 port
Auto-negotiation and Auto MDI/MDI-X |
| antene Gain |
4 x Internal 5dBi antenna (2.4G x2, 5G x2) |
| Butonul de resetare |
Reset button on the rear side (Press over 7 seconds to reset the device to factory default) |
| Indicatoare LED |
SYS, 2.4G, 5G |
| Dimensiuni (L x Î x H) |
198 x 32.9 x198 mm |
| Greutate |
498 ±5g |
| Cerinte de putere |

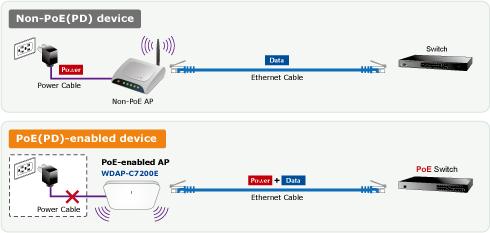

48V 0.5A, IEEE 802.3at PoE+ or
12V DC, 1.5A
|
| Consumul de energie |
< 20W |
| Montare |
Ceiling Mount |
| Specificațiile interfeței fără fir |
| Standard |

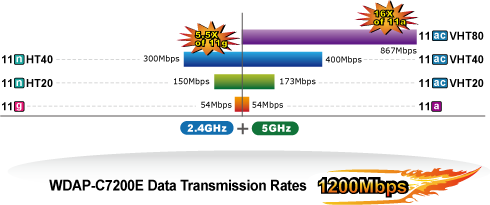

IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control |
| Controlul accesului media |
CSMA/CA |
| Modularea datelor |
802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK) |
| Modul benzii |

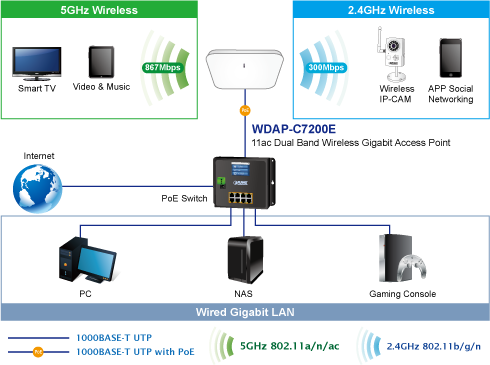

2.4G / 5G concurrent mode |
| Interval de frecvență |
2.4GHz:
FCC: 2.412~2.462GHz
ETSI: 2.412~2.472GHz
5GHz:
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz |
| Canale de operare |
FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 Channels)
ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 (16 Channels)
*5GHz channel list will vary in different countries according to their regulations. |
| Max. Puterea de transmisie (dBm) |
FCC: up to 29 ± 1dBm
ETSI: < 20dBm (EIRP) |
| Primiți sensibilitate |
2.4GHz:
802.11b(1Mbps):-99dBm
802.11b(11Mbps):-92dBm
802.11g(6Mbps):-95dBm
802.11g(54Mbps):-82dBm
802.11n HT20(MCS0/MCS8):-95dBm
802.11n HT20(MCS7/MCS15):-77dBm
802.11n HT40(MCS0/MCS8):-93dBm
802.11n HT40(MCS7/MCS15):-75dBm
5GHz:
802.11a(6Mbps):-92dBm
802.11a(54Mbps):-75dBm
802.11n HT20(MCS0/MCS8):-91dBm
802.11n HT20(MCS7/MCS15):-72dBm
802.11n HT40(MCS0/MCS8):-88dBm
802.11n HT40(MCS7/MCS15):-70dBm
802.11ac VHT20(MCS0):-92dBm
802.11ac VHT20(MCS8):-70dBm
802.11ac VHT40(MCS0):-89dBm
802.11ac VHT40(MCS9):-65dBm
802.11ac VHT80(MCS0):-87dBm
802.11ac VHT80(MCS9):-61dBm |
| Caracteristici software |
| LAN |
Static IP
Supports IP-MAC binding |
| WAN |
■ Static IP
■ Dynamic IP
■ PPPoE
|

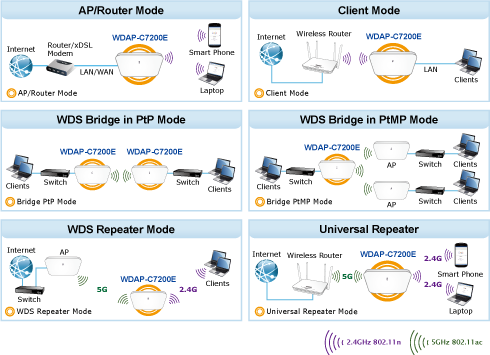

| Modul wireless |
■ Access Point
■ Gateway
■ Repeater
■ WDS (PtP/PtMP)
|
| latimea canalului |
20MHz, 40MHz, 80MHz |
| Securitate criptare |
64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X |
| Securitate wireless |
Enable/Disable SSID Broadcast
Wireless MAC address filtering
User Isolation |
| Max. SSID-urile |
4 |
| Max. Clienți |
64 per radio (50 is suggested, depending on usage) |
| Max. WDS Peers |
4 |
| Wireless QoS |
Supports Wi-Fi Multimedia (WMM) |
| Wireless avansat |
WMM (Wi-Fi Multimedia): 802.11e Wireless QoS
Multiple SSID: up to 4 at 2.4GHz and 5GHz, respectively
Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other
Provides Wireless Statistics |
| Wireless avansat |
Auto Channel Selection
5-level Transmit Power Control (100%, 75%, 50%, 25%, 12.5%)
Client Limit Control, Coverage Threshold
Wi-Fi channel analysis chart |
| Monitorizare stare |
Device status, Wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server |

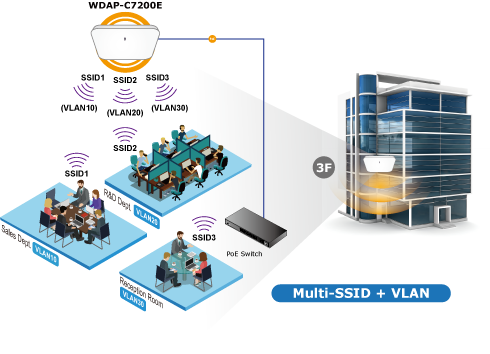

| VLAN |
IEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping up to 4 SSIDs |
| Auto vindecare |
Supports auto reboot settings per day/hour |
| administrare |
Remote management through PLANET DDNS/ Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
SNMP v1/v2c/v3 support, MIB I/II, Private MIB |
| Managementul central [1] |
Applicable controllers: WAPC-500, WAPC-1000 and Smart AP Control(SAPC)
*Remarks[1]: the feature will be supported through firmware/system upgrade. |
| Mediu și certificare |
| Temperatura |
Operating: 0 ~ 40 degrees C
Storage: -40 ~ 70 degrees C |
| Umiditate |
Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing) |
| de reglementare |
CE, RoHS |
