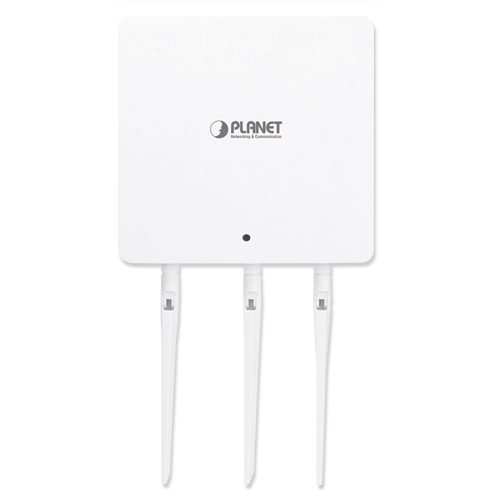

WDAP-1750AC

1750Mbps 802.11ac Dual Band Wall Mount Enterprise Wireless Access Point

Overview
Application
Key Features
Specification
Download
Related Products

Ultra-high-speed, Next-generation Enterprise Wireless

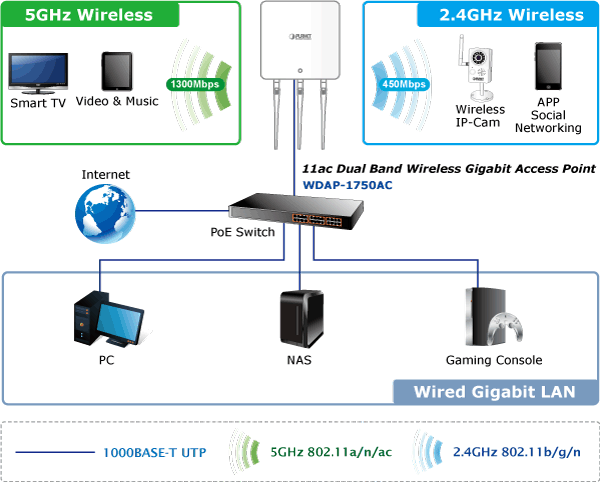

PLANET WDAP-1750AC is an enterprise PoE access point with the latest 802.11ac wireless technology, advanced management features and superior encryption standard yet cost-effective. Meeting enterprise demand, the WDAP-1750AC has enhanced security and management features including multiple SSIDs, IEEE 802.1Q VLAN, WPA / WPA2-enterprise security, RADIUS MAC authentication and so forth. With the multiple reversed-polarity SMA male antenna connectors, the WDAP-1750AC is able to connect its suitable external antenna and booster in such wireless environments as warehouses, campuses and enterprises.

Extraordinary 11ac Dual Band Wireless Technology

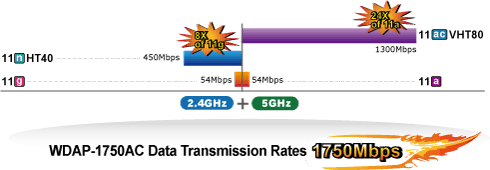

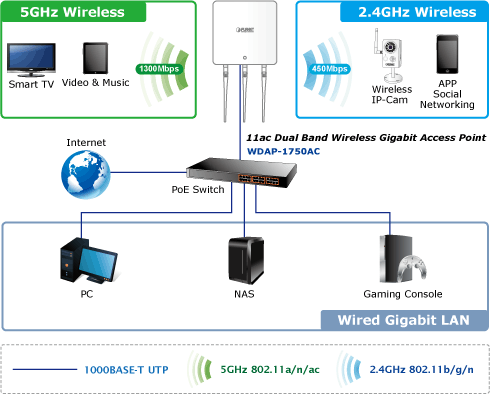

The WDAP-1750AC supports IEEE 802.11a/b/g/n/ac dual band standards with 3T3R MIMO technology; therefore, it provides the wireless speed up to 450+1300Mbps, which is 24X faster than the 11a access point at 5GHz frequency and 8X faster than the 11g access point at 2.4GHz frequency. The incredible wireless speed makes it ideal for handling multiple HD movie streams, high-resolution on-line games, stereo music, VoIPs and data streams at the same time stably and smoothly.

11ac Innovations Bring Excellent Data Link Speed

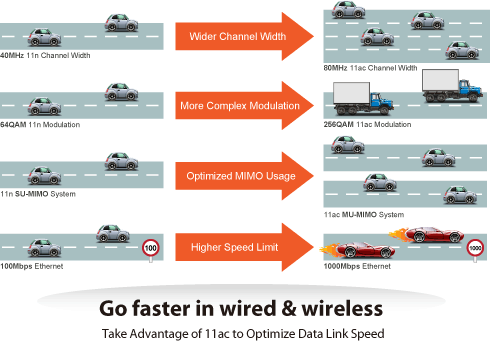

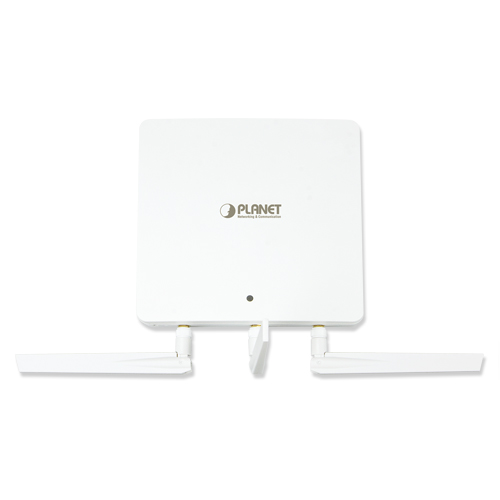

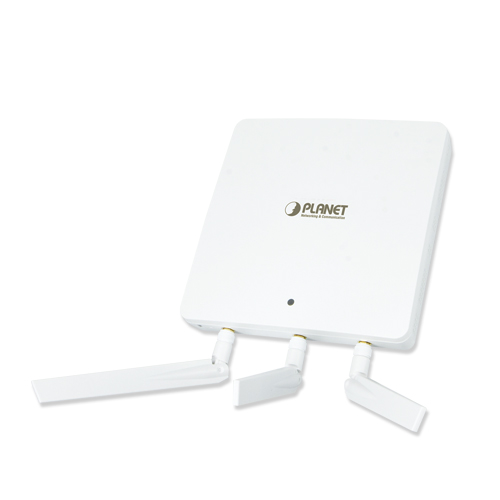

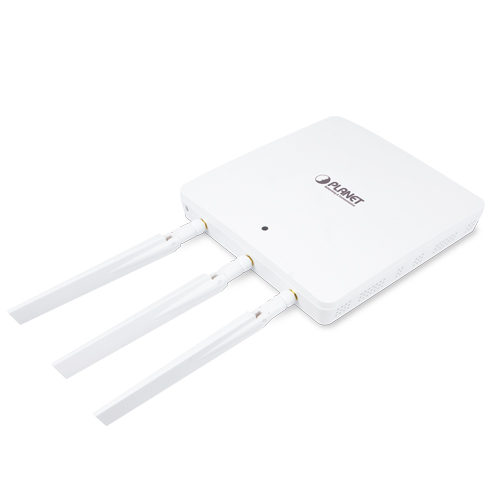

The WDAP-1750AC has 3 detachable highly-sensitive antennas which provide stronger signal and excellent coverage even in the wide-ranging or bad environment. With adjustable transmit power option, the administrator can flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. To provide extremely high-speed user experience, the WDAP-1750AC adopts IEEE 802.11ac technology to extend the 802.11n 40MHz channel binding to 80MHz and the implementation of 256-QAM modulation where higher transmitting/receiving rates go up to 1300Mbps in 5GHz less interference frequency band. In addition, the WDAP-1750AC is equipped with Gigabit LAN port to eliminate the restriction of 100Mbps Fast Ethernet wired connection to let users fully enjoy the high speed provided by wireless. The IEEE 802.11ac also optimizes MU-MIMO (Multi-User MIMO) mechanism to serve multiple devices simultaneously.

Flexible Deployment with PoE Feature

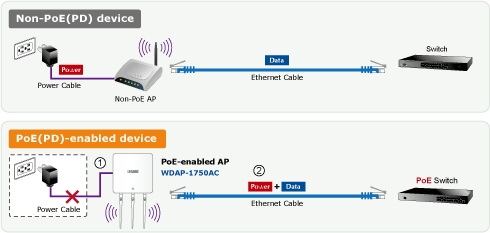

Compliant with the IEEE 802.3at Power over Ethernet standard, the WDAP-1750AC can be powered and networked by a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place where it is difficult to reach. The wireless network deployment becomes more flexible and worry-free from the power outlet locations. As it is a highly-reliable industrial wall-mount design, the WDAP-1750AC can be firmly installed on the wall conveniently.

Wireless Security Encryption and Wireless Value-added Features

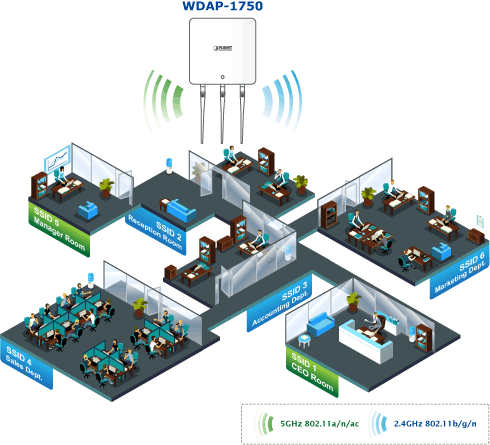

In aspect of security, besides 64/128-bit WEP encryption, the WDAP-1750AC is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x Radius authority to secure and protect your wireless LAN. It provides the wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection. Being an access point, the WDAP-1750AC supports the VLAN function to allow multiple SSIDs (32 sets of SSIDs) to access Internal VLAN topology. Moreover, its Wi-Fi Multimedia (WMM) mechanism provides enhanced QoS over wireless connection for better performance in multimedia transmission like on-line gaming and video streaming, which are classified as a top priority.

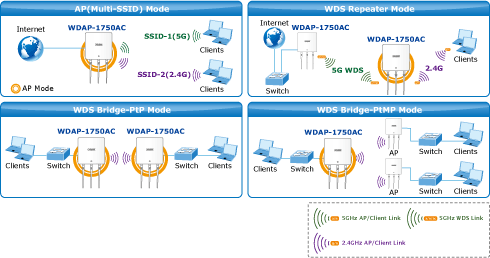

Multiple Operation Modes for Various Applications

The WDAP-1750AC supports AP, WDS Bridge, and Repeater modes, through which it provides more flexibility for users when wireless network is established. Compared with general wireless access point, the WDAP-1750AC offers more powerful and flexible capability for wireless clients.

Hardware Specifications

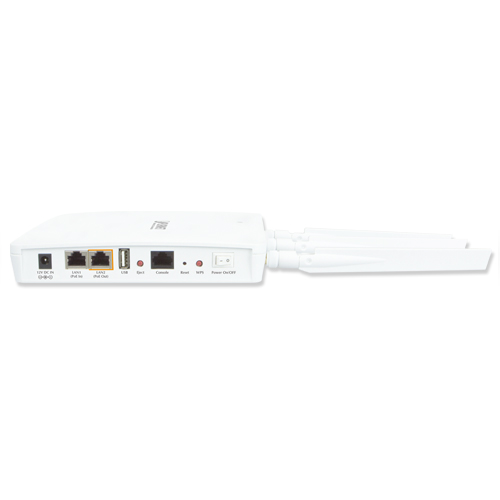

Interfaces LAN	2 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X
Antennas Gain	3 x 2dBi SMA antenna
Reset Button	Press over 5 seconds to reset the device to factory default
LED Indicators	PWR Allow LED to turn off via software control
Material	Plastic
Dimensions (W x D x H)	182 x 182 x 30 mm
Weight	470g
Power Requirements	DC Input: 12V DC, 4A12V DC, 4A PoE Input: IEEE 802.3at PoE+, 48~56V DC in-line power
Power Consumption	20W (without PSE)
ESD Protection	±8kV air-gap discharge, ±4kV contact discharge
Mounting	Wall mount / Desktop
Wireless Interface Specifications
Standard	IEEE 802.11ac (draft 2.0) 5GHz IEEE 802.11a/n 5GHz IEEE 802.11b/g/n 2.4GHz
Operating Channels	2.4GHz America/ FCC: 1~11 　　　 Europe/ ETSI: 1~13 5GHz: America/ FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 　　　 Europe/ ETSI: 36, 40, 44, 48 *5GHz channel list will vary in different countries according to their regulations.
Antenna Structure	802.11ac: 3T3R MU-MIMO 802.11n: 3T3R MIMO
Modulation	DSSS
Data Modulation	802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)
Band Mode	2.4G / 5G concurrent mode
Frequency Range	2.4GHz: America/ FCC: 2.412~2.462GHz 　　　　Europe/ ETSI: 2.412~2.484GHz 5GHz: America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz 　　　 Europe/ ETSI: 5.180~5.240GHz
Channel Width	802.11ac: 20/40/80MHz 802.11n: 20/40MHz
Transmission Distance	802.11ac (draft): up to 30m 802.11n: up to 70m 802.11g: up to 30m The estimated transmission distance is based on the theory. The actual distance will vary in different environments.
Max. RF Power	5GHz: 　　802.11ac (VHT20/40/80): 27.5dBm @MCS0 　　802.11ac (VHT20/40/80): 22.5dBm @MCS7 　　802.11ac (VHT20/40/80): 19.5dBm @MCS9 　　802.11n (HT20/40): 27.5dBm @MCS0/MCS8 　　802.11n (HT20/40): 22.5dBm @MCS7/MCS15 　　802.11a: 26.5dBm @6Mbps 　　　　　　22.5dBm @54Mbps 2.4GHz: 　　802.11n (HT20/40): 27.5dBm @MCS0 　　802.11n (HT20/40): 22.5dBm @MCS7 　　802.11g: 27.5dBm @6Mbps 　　802.11g: 23.5dBm @54Mbps 　　802.11b: 27.5dBm @1Mbps
Receive Sensitivity	5GHz: 　　802.11ac (VHT20): -64dBm @MCS9 　　802.11ac (VHT40): -61dBm @MCS9 　　802.11ac (VHT80): -58dBm @MCS9 　　802.11n (HT20): -87dBm @MCS0, -67dBm @MCS7 　　802.11n (HT40): -84dBm @MCS0, -63dBm @MCS7 　　802.11a: -71dBm @54Mbps 2.4GHz: 　　802.11n (HT20/40): -87dBm @MCS0 　　802.11n (HT20/40): -67dBm @MCS7 　　802.11g: -70dBm @54Mbps 　　802.11b: -90dBm @1Mbps
Software Features
Wireless Mode	■ AP (Access Point) ■ Repeater (WDS + AP)  ■ WDS PTP (Point to Point) ■ WDS PTMP (Point to Multipoint)
Encryption Security	■ WEP (64/128-bit) encryption security ■ WPA / WPA2 (TKIP/AES) ■ WPA-PSK / WPA2-PSK (TKIP/AES) ■ 802.1x Authenticator
Wireless Security	Wireless MAC address filtering Supports WPS (Wi-Fi Protected Setup) Enable/ Disable SSID Broadcast
Wireless Advanced	WMM (Wi-Fi Multimedia), Max. Associated Station Number Multiple SSIDs: up to 16 at 2.4GHz and 16 at 5GHz Wireless Isolation: Enable it to isolate each connected wireless client from communicating with each other WLAN L2 isolation (AP mode) Provides wireless statistics
Max. Clients	Wired: 253 2.4GHz Wireless: 50 5GHz Wireless: 50
LAN	Built-in DHCP server supporting static IP address distribution Supports UPnP Supports 802.1Q VLAN
System Management	Web-based (HTTP) management interface SNTP synchronization Easy firmware upgrade Supports scheduling reboot Supports Smart Discovery Utility
Standards Conformance
IEEE Standards	IEEE 802.11ac (draft 2.0, 3T3R, up to 1300Mbps) IEEE 802.11n (3T3R, up to 450Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control
Other Protocols and Standards	CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP
Environment & Certification
Temperature	Operating: 0 ~ 50 degrees C Storage: -20 ~ 60 degrees C
Humidity	Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing)
Regulatory	FCC, CE
