| aparat foto |
| Dispozitiv de imagine |
1/2.7" 2 mega-pixel progressive scan CMOS sensor |
| Obiectiv |
3.6mm, fixed lens
Mechanical IR-cut filter
Angle of view:
Horizontal: 74 degrees
Vertical: 57 degrees
|
| Min iluminare |
0.5 Lux (Color) @ F1.2
0.1 Lux (B/W)
|
| Iluminări IR |
IR LED x 24, 850nm
Built-in IR illuminators, effective up to 25 meters
*The IR distance is based on the environment
|
| Pixeli efectivi |

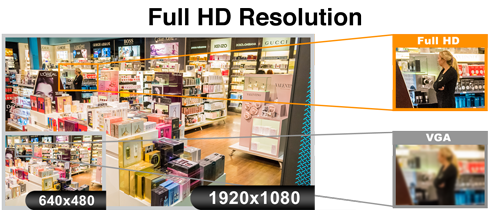

1920 x 1080 pixels |
| Imagine |
| Compresie video |
H.264 / M-JPEG |
| Rezoluție video |
1080p / 720p / 640 x 360 / 320 x 180 |
| Frame Rate |
Up to 30fps for all resolutions |
| Setarea imaginii |
AE, AWB

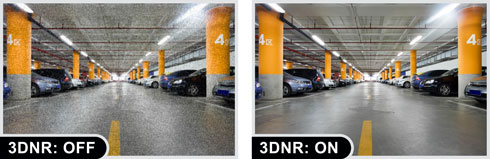

3D noise reduction

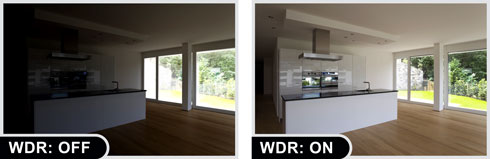

WDR
Color, hue, brightness, sharpness, contrast
Mirror/Flip
90o rotation

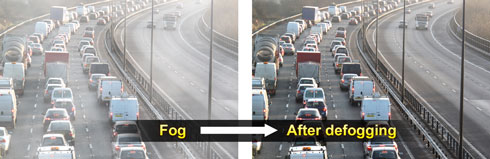

De-fog
Anti-false color
Lens distortion correction
10 privacy masks
Text, time and date overlay
Overlay image on video
|
| Streaming |
Simultaneous multi-profile streaming
Streaming over UDP, TCP, HTTP, or HTTPS
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (H.264)
AOI
ROI
|
| Audio |
| Streaming audio |
Two-way audio |
| Compresie audio |
RTSP: G.711 64kbps, G.726 32kbps |
| Microfon |
External microphone input |
| Iesire audio |
Adjustable audio output gain |
| Rețea și configurare |
| Standard |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
|
| Protocol |
IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, Samba, ICMP, SNMP, QoS |
| Securitate |
Password protection, IP address filtering, HTTPS encrypted data transmission, user access log |
| Utilizatori |
8 clients on-line monitoring at the same time |
| Integrarea sistemului |
| interfața de programare a aplicației |
Open API for software integration
ONVIF Compliant
|
| Alarmă declanșatoare |

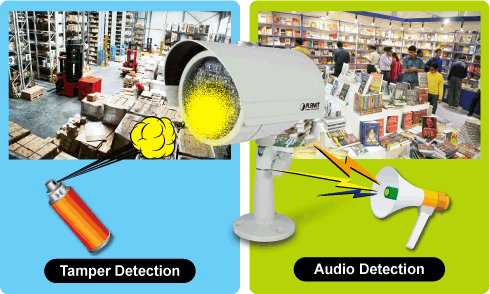

Intelligent Motion / Tampering / Audio Detection and External Input |
| Evenimente de alarmă |
File upload via FTP, Samba to NAS, and email
Notification via email, HTTP, and TCP
External output activation
Audio alerting output
|
| Tampon video |
Pre- and post-alarm buffering |
| General |
| Necesitatea de alimentare |
12V DC, 1A
IEEE 802.3af Class 3
|
| Consumul de energie |
9W max. |
| Temperatura de Operare |
-20 ~ 50 degrees C |
| Umiditatea de funcționare |
5 ~ 95% (non-condensing) |
| Greutate |
900g |
| Dimensiuni (L x Î x H) |
86 x 81 x 97 mm |
| emisie |
CE, FCC |
| Conectori |
10/100 Mbps Ethernet, RJ45
DC power jack
Terminal block for 1 alarm input and 1 output
External mic input
Audio out
Composited video out (Max. resolution: D1 720 x 480 pixel))
Factory default reset button
|
