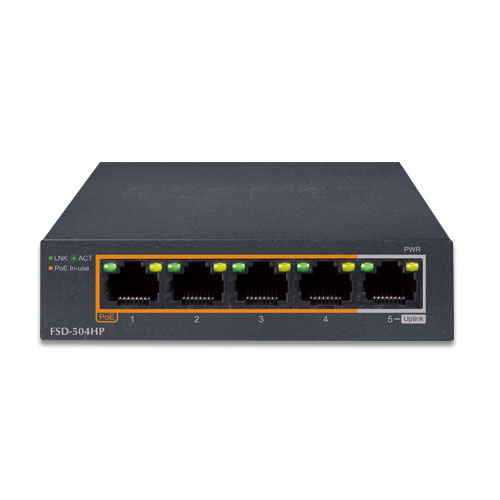

FSD-504HP

4-Port 10/100Mbps 802.3at/af PoE + 1-Port 10/100Mbps Desktop Switch

Overview
Application
Key Features
Specification
Download
Related Products

Easy Deployment for SOHO and Home Users

PLANET FSD-504HP, a 4-port 10/100Mbps 802.3at/af Power over Ethernet + 1-port Fast Ethernet Switch, can be easily and quickly deployed for SOHO and home-use PoE application environment by any users as it is compact in size and simple to install. The FSD-504HP is definitely an ideal solution for SOHO and home users as it has the following advanced features:

4-port PoE, 60-watt PoE budget
One 10/100Mbps uplink port
Can extend distance of up to 250m in the extend mode
30-watt power output at speed of 10Mbps
Desktop palm-size design

Centralized Power Distribution for Small Ethernet Networking

The FSD-504HP has a total PoE budget of 60 watts, which is an ideal solution to meeting the demand for sufficient PoE power for network applications. The four 802.3at/af PoE ports provide PoE power injector function which is able to drive two IEEE 802.3at compliant powered devices or four IEEE 802.3af compliant powered devices. The FSD-504HP also provides a simple, cost-effective and non-blocking wire-speed performance. It comes with a palm-size metal housing, suitable for the desktop deployment of SOHO or home-use network environment.

Ideal Solution for Securing SOHO IP Surveillance Infrastructure

Targeting the increasingly popular IP surveillance applications, the FSD-504HP 802.3at/af PoE Switch is also positioned as a Surveillance Switch for quick and easy PoE IP camera deployment with power feeding. The FSD-504HP supports both 802.3at and 802.3af PoE standards along with four 10/100BASE-TX ports featuring up to 30 watts per RJ45 copper interface, and one extra Fast Ethernet TP interface supporting high-speed transmission of surveillance images and videos.

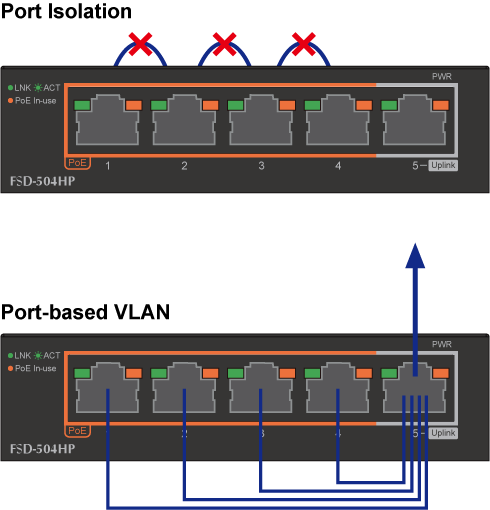

Innovative Port-based VLAN Protection features

The FSD-504HP features "Port-based VLAN Protection" whose ports can be isolated from each other via one DIP switch. This can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.

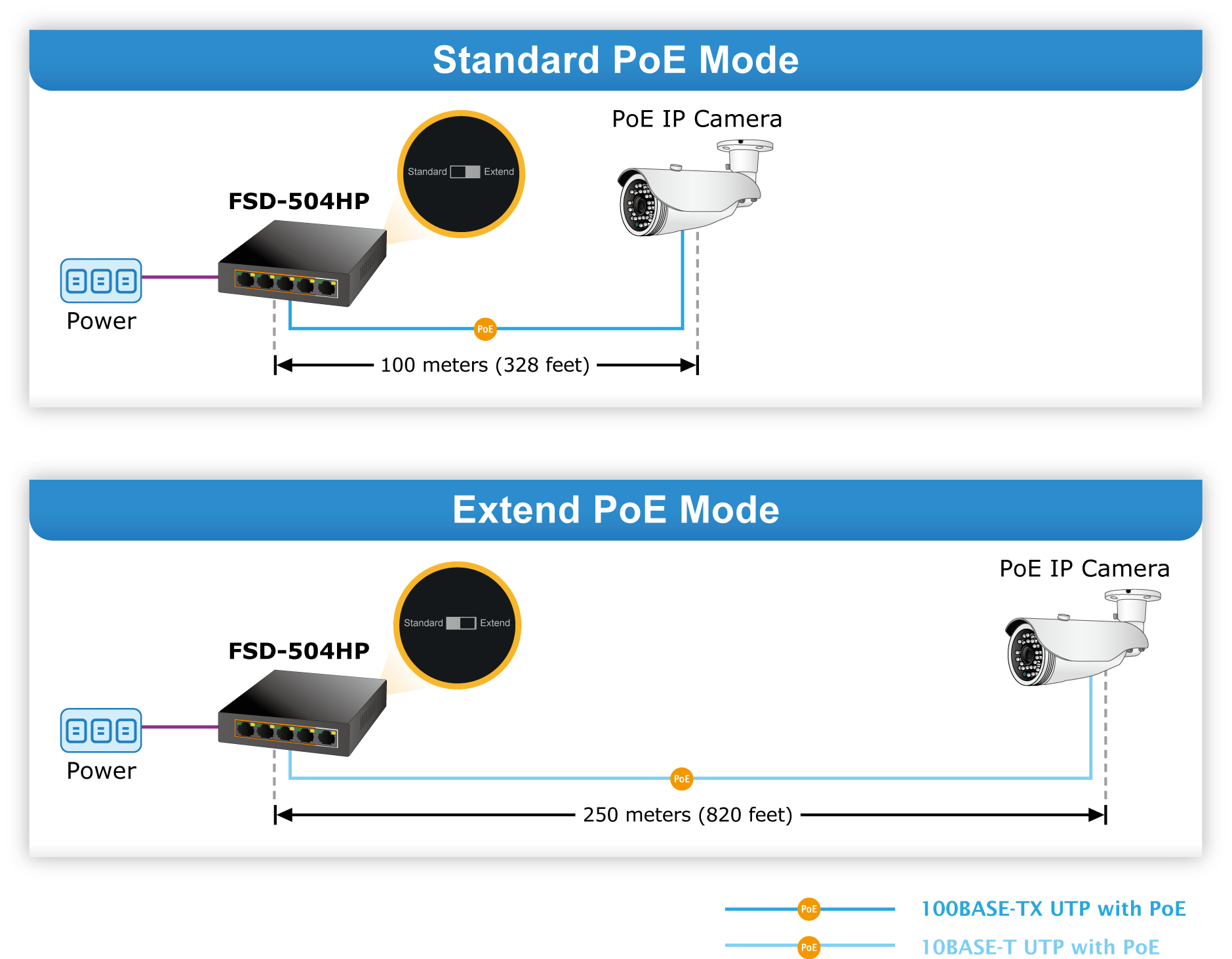

802.3at/af PoE Power and Ethernet Data Transmit Distance Extension

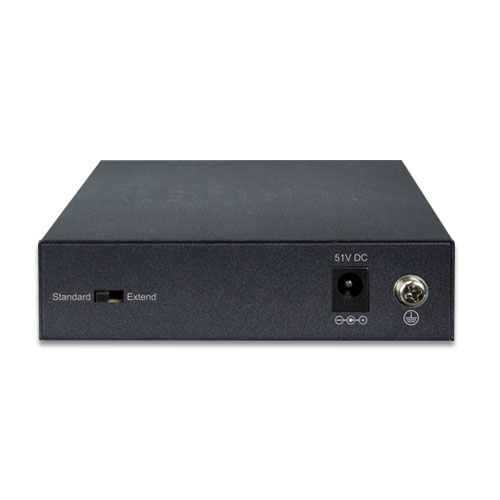

The built-in solid DIP switch provides "Standard" and "Extend" operation modes. The FSD-504HP operates as a normal IEEE 802.3at/af PoE Switch in the "Standard" operation mode. In the "Extend" operation mode, the FSD-504HP operates on a per-port basis at 10Mbps duplex operation but can support 30-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the FSD-504HP provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.

Guaranteed Protection for a Smooth Operation

The FSD-504HP protects against the ESD 6KV surge to improve product stability and also protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

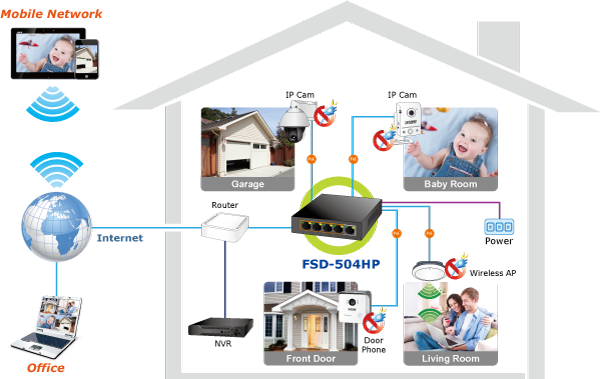

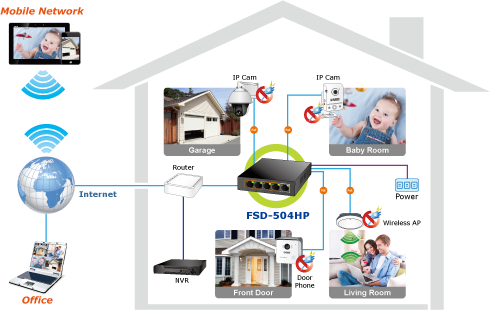

SOHO and Home-use Fast Ethernet PoE Network Deployment

With its expanded home-use feature, the FSD-504HP 802.3at/af PoE Switch helps SOHO and home users to create an integrated data, video, and powered network. The wireless AP and PoE IP camera and PoE door phone devices work perfectly with the FSD-504HP, which injects power through the Ethernet cables, thus helping SOHO and home users to build a cost-effective and reliable PoE network environment easily.

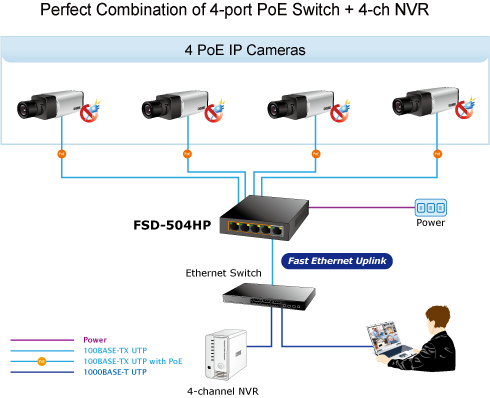

Perfectly-integrated Solution for PoE IP Camera and NVR System

The FSD-504HP provides four 802.3at/af PoE ports for catering to small-scale home and SOHO IP surveillance networks at a lower total cost. The FSD-504HP comes with a high-performance switch architecture and 60-watt PoE power budget. The recorded video files from the 4 PoE IP cameras can be powered by the FSD-504HP and saved in the 4-channel NVR system. Besides, surveillance software can be used to perform comprehensive security monitoring.

For instance, one FSD-504HP can be combined with one 4-channel NVR; that is, each of its PoE port can be linked to a specific 802.3af PoE IP camera for the administrators to centrally and efficiently manage the surveillance system in one site. The FSD-504HP’s Fast Ethernet TP interface also provides Fast Ethernet TP connection for uplink to NVR systems or public server groups.

IP Office Department/Workgroup PoE Switch

With the business office expansion, the additional telephones required can be installed in less cost via the implementation of PoE IP telephony system than that of the traditional circuit wiring telephony system. The FSD-504HP 802.3at/af PoE Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af compliant IP phones can be installed without an additional power cable because the power can be provided via the standard Ethernet cable from the connected FSD-504HP.

The wireless AP group, PoE IP phones and analog telephony adapter work perfectly with the FSD-504HP, which injects power through the Ethernet cables. With the FSD-504HP, IP telephony deployment becomes more reliable and cost effective, thus helping enterprises save tremendous cost when upgrading from the traditional telephony system to IP telephony communications infrastructure.
